Adjusting the Viewfinder
Adjusting the Diopter and Screen
Adjusting the Eyepiece Position
(The viewfinder shown in the illustration is the optional AJ-VF10P.)

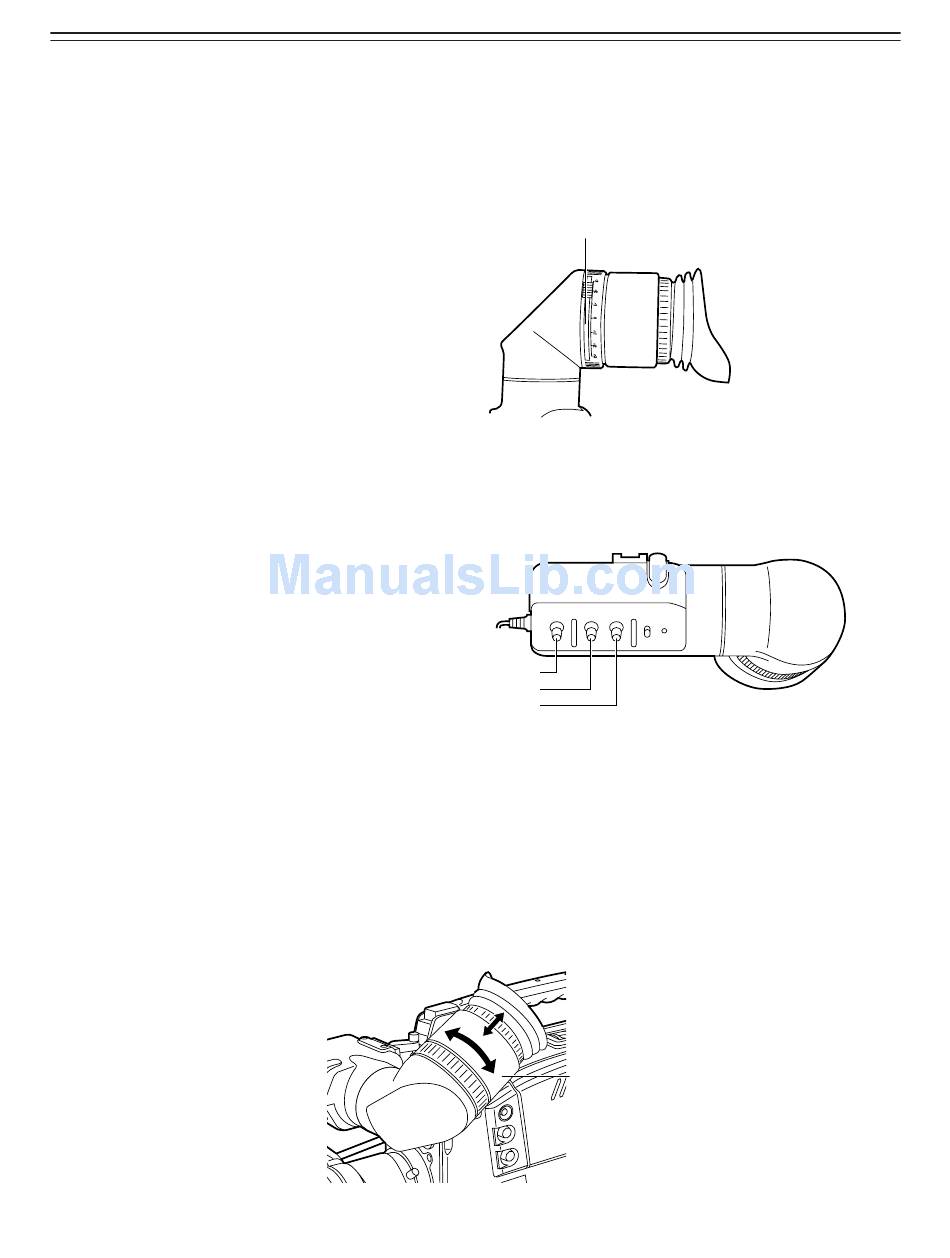

Adjusting the diopter
1
Set the POWER switch to ON. A picture will appear in the viewfinder.
2
Turn the diopter adjustment ring to adjust the diopter so that the viewfinder picture can be
clearly seen.
Adjusting the screen
Adjust the condition of the viewfinder screen.
Brightness: Adjust the BRIGHT control
Contrast: Adjust the CONTRAST control
Contour: Adjust the PEAKING control
CONTRAST Control
PEAKING Control
1
Set the POWER switch to ON.
2
Set the OUTPUT switch to CAM.
3
Turn the viewfinder BRIGHT and CONTRAST controls to adjust the picture brightness and
contrast. Turning the PEAKING control makes the picture appear softer or sharper. A sharp
picture facilitates focusing the lens.
Turn the eyepiece forward-backward movement ring to adjust the position of the eyepiece in the
forward-backward direction.
Diopter Adjustment Ring
BRIGHT Control
Eyepiece Forward-backward Movement Ring
