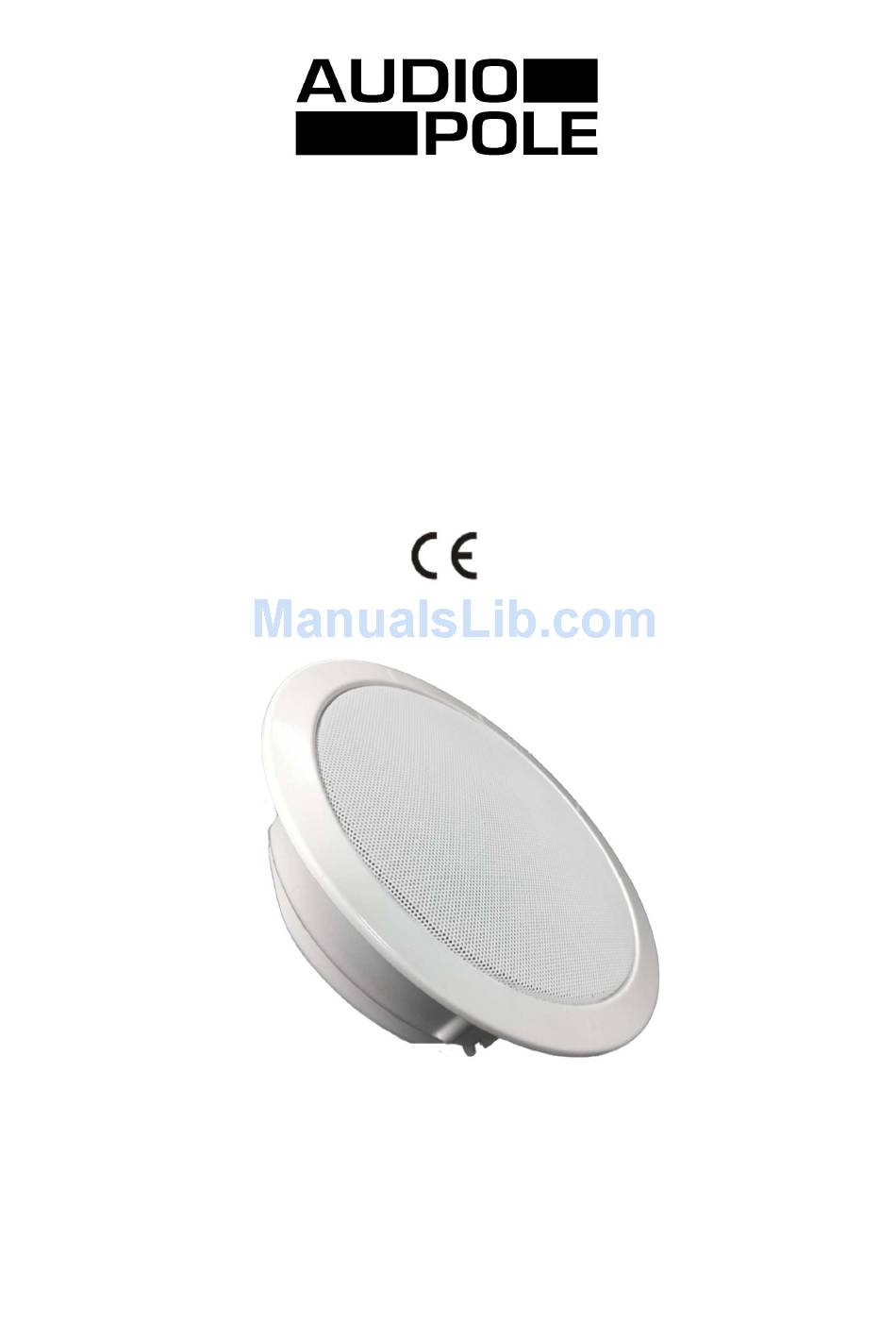

- Page 1 POLE 116ENP CEILING SPEAKER EN 54-24 USER MANUAL...
-
Page 2: Safety Instructions
Safety Instructions READ CAREFULLY THE FOLLOWING INSTRUCTIONS Installation Please refer to this manual for the installation of the speaker. Keep the speaker clean, using a hair dryer or a cloth to remove dust. Do not use alcohol or solvents. Even with regard to a speaker designed for fire alarm, do not install the speaker near a heat source. Avoid exposure to rain or moisture. - Page 3 Thank you for the purchase of the AUDIOPOLE POLE-116ENP. In addition to audio qualities, this ceiling speaker meets the requirements of the standard CE EN 54-24 in safety message for voice alarm systems for the detection and fire alarm systems.
- Page 4 Connections Handling Precautions 1. Be sure to note the following polarities when multiple speakers are used in the same location. Incorrect connections could result in no bass output or decreased volume. 2. Connect the correct (+) and (COM) polarity terminal as per mark on the block.
-
Page 5: Installation
Installation 1 – Drill a round hole into the ceiling in accordance with the ceiling drilling picture on the attached cover in the inner box. 2 – Remove the dome of the chassis by unscrewing the screws next to each spring clip and then select the required power by modifying if necessary the transformer connections. - Page 6 Installation 4 – Position the speaker inside the hole of the ceiling. Once the ceiling set, pull down the spring clips. Then check the proper stowage of the speaker. Spring clips down Hole in the ceiling 5 – To remove the speaker, lift the spring clips, and then let the speaker while holding it by the front. Input cables Ceiling Fire dome...
-
Page 7: Technical Features
92 dB (1 W /1 m) (500 Hz -5 kHz, pink noise) 79 dB (1 W /4 m) (100 Hz -10 kHz, pink noise) according to EN 54-24 92 dB (1 W /1 m) (100 Hz -10 kHz, pink noise) converted based on EN 54-24 Frequency Response... -
Page 8: Warranty
Warranty The POLE 116ENP is warranted parts and labor against any manufacturing defects for a period of two years from the date of purchase by the first user. Conditions The unit has been installed and implemented by observing the safety instructions in this operating manual. The device was not diverted from its destination, either voluntary or accidental, and suffered no deterioration or modification other than those described here or explicitly authorized by AUDIOPOLE.
