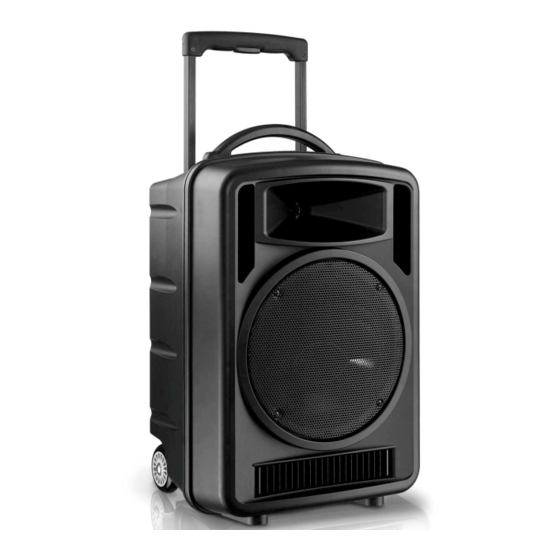

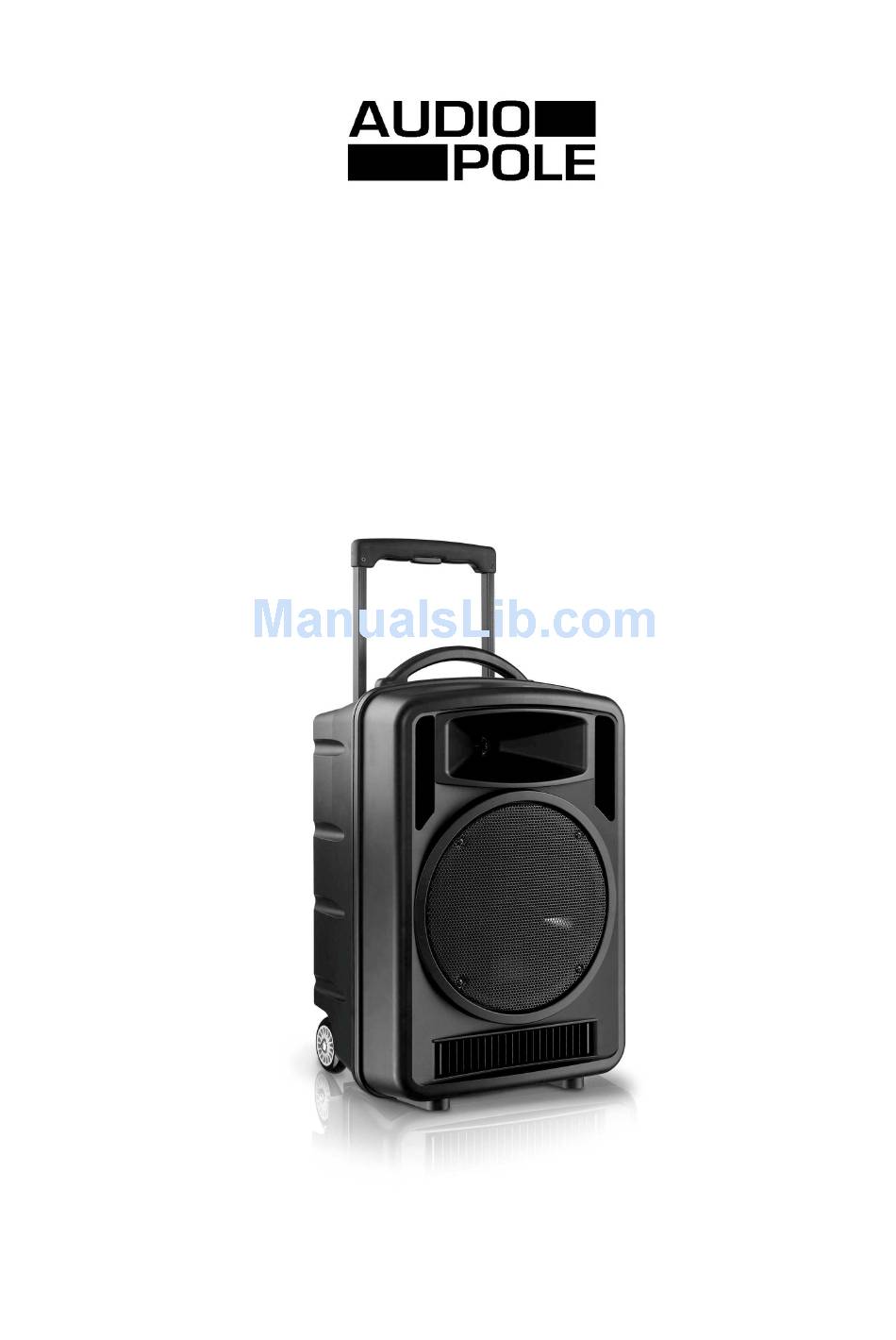

- Page 1 PORTABLE SOUND SYSTEM FREEPOLE 100 USER’S MANUAL...
-
Page 2: Table Of Contents
INDEX SAFETY INSTRUCTIONS …………………………..……………………………………………… DESCRIPTION …………………………………….…………………………………………………. SYSTEM ELEMENTS ………………………..……….…………………………………………….. CONTROL PANEL ………………………………………….……………………………………….. POWER SUPPLY …………………………………………………………………………………….. HF RECEIVER …………………………………..…………………………………………………….. HF MICROPHONE …………………………….……………………………………………………... AUDIO MODUME …………………………...……………………………………………………….. TECHNICAL SPECIFICATIONS …………………………………………………………………… 11 WARRANTY ……………………………………………..……………………………………………. 11... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS This symbol, wherever used, alerts you to the presence of un-insulated and dangerous voltages within the product enclosure. These are voltages that may be sufficient to constitute the risk of electric shock or death. This symbol, wherever used, alerts you to important operating and maintenance instructions. POWER SUPPLY Ensure that the insource voltage (AC outlet) matches the voltage rating of the product. -
Page 4: Description
DESCRIPTION Thank you for purchasing the Audiopole FREEPOLE 100. This all in one system is an ideal tool for indoors and outdoors PA applications without using wiring. The built-in lithium battery and the wireless microphone system offer freedom of use and an optimal sound quality for the music and the voice. -
Page 5: Control Panel
POWER SUPPLY The FREEPOLE 100 can be powered by 100 to 240 V AC, or by two internal battery blocks. The batteries start the charging process as soon as the device is connected to the mains. The Led indicator lights up red during the charging time and lights up green when the charge is over. -
Page 6: Hf Receiver
HF RECEIVER Description LCD displaying frequency and channel number Switching status of the diversity antennas A/B HF signal presence Audio signal presence Set / confirm channel number Select channel number ON/OFF / Volume Functions Turn VOLUME / POWER (g) clockwise. At the “click” the receiver switches on and the LCD lights up displaying the channel number from 1 to 16. -
Page 7: Hf Microphone
HF MICROPHONE Description Anti-pop grille On / Off indicator Microphone « soft touch » body On / Off switch Channel set button Battery charge terminals LCD screen : displays channel number / HI / LOW / MUTE : sensitivity selector battery status / frequency Batteries cover Up / Down selector... - Page 8 HI: max. sensitivity LOW : min. sensitivity MUTE : sound mute To mute the microphone without switching the transmission off, use the MUTE position. HI / LOW positions correspond to two different sensitivities. It can be adjusted depending on the audio level. The batteries status can be easily checked thanks to the left side icon on the LCD.
-
Page 9: Audio Modume
AUDIO MODULE Fonctions USB : USB port POWER On / Off switch CD compartment: compatible with 12 cm CD / CD-R / CD-RW LCD screen: display file / time / source / mode / status NOR : back to normal speed after a pitch modification HI : speed increase (pitch), 10 variations LO speed decrease (pitch), 10 variations VOLUME : volume control... - Page 10 Random play: press , the LCD displays « SHUFFLE » and the device starts to play. to go to next or previous track. Repeat : • In CD mode, press once to display « REPEAT ALL », all the CD tracks will be replayed. •...
-
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS WARRANTY This device is warranted parts and labor against any manufacturing defects for a period of two years from the date of purchase by the first user. Conditions The unit has been installed and implemented by observing the safety instructions in this operating manual. The device was not diverted from its destination, either voluntary or accidental, and suffered no deterioration or modification other than those described here or explicitly authorized by AUDIOPOLE. - Page 12 22, rue Édouard Buffard, Z.A.C. de la Charbonnière, Montévrain - 77771 Marne-la-Vallée Cedex 4 - France Tél : + 33 (0)1 60 54 32 00 - Fax : + 33 (0) 1 60 54 31 90 - www.audiopole-pa.com - www.audiopole.fr...
