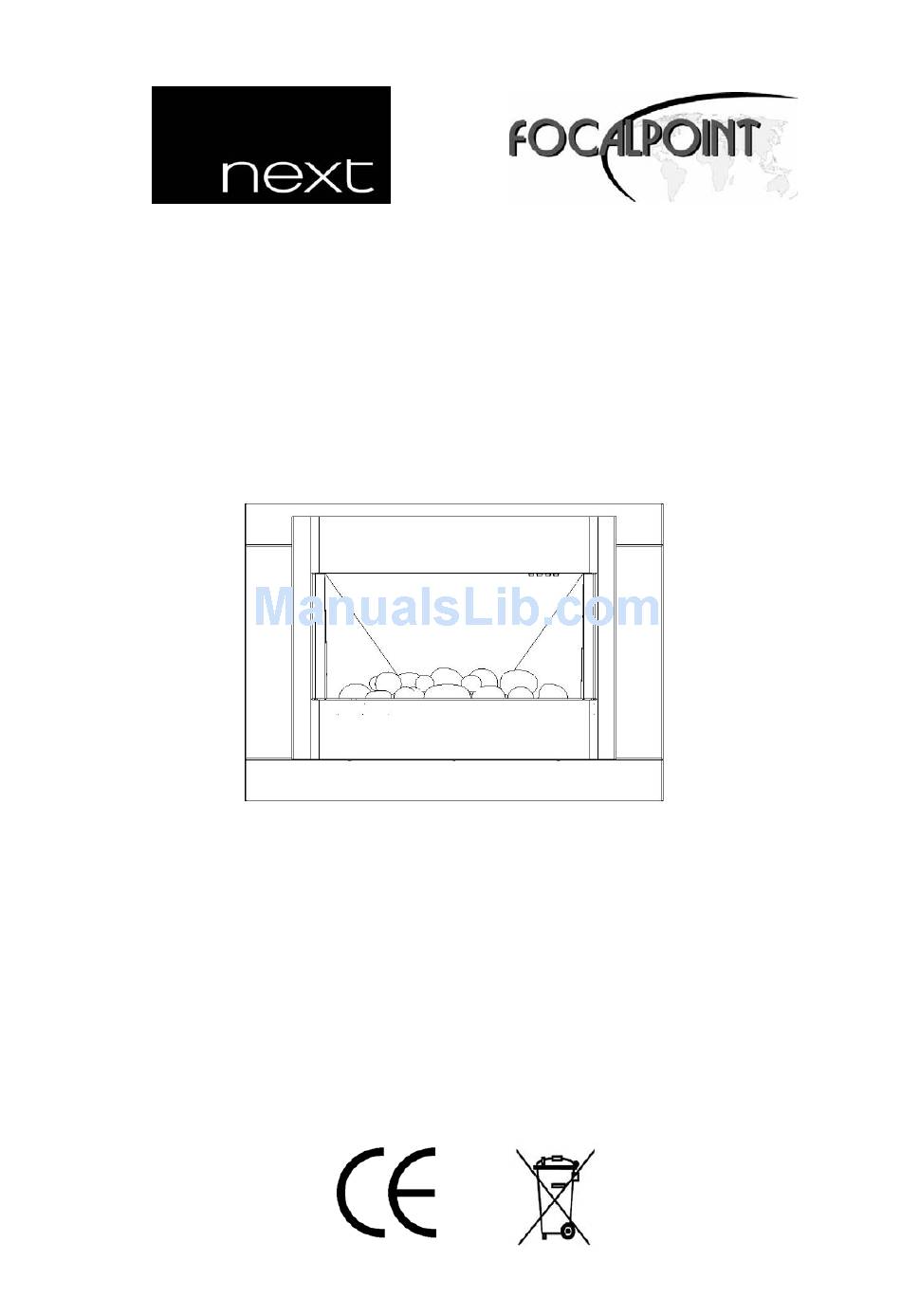

- Page 1 UMBRIA WALL MOUNTED ELECTRIC HEATER INSTALLATION and USER INSTRUCTIONS Read and understand these instructions completely before commencing any assembly or installation. Check that all components are included in the pack. Revision A - 06/07 Next Retail Ltd, Desford Road, Enderby, Leicester, LE19 4AT Helpline Tel: 084 484 48999 ©...
-
Page 2: Important Notes
Section Contents Page No. Section Contents Page No. Fixing the Appliance Important Notes Operating the Appliance Installation Requirements Safety Cut-Out System Appliance Data Maintenance/Servicing Unpacking the Appliance 10.0 Cleaning Component Checklist 11.0 Spares Appliance Assembly 12.0 Product Views & Dimensions Site Requirements Except where otherwise stated, all rights, including copyright in the text, images and layout of this booklet is owned by Focal Point Fires plc.You are not permitted to copy or adapt any of the content without the prior written permission of Focal Point Fires plc. -
Page 3: Unpacking The Appliance
UNPACKING THE APPLIANCE: Read all the instructions before continuing to unpack or install this appliance. Carefully remove the appliance from its packaging and lay on the floor with it`s back surface downward. Note: DO NOT stand the appliance on its frame as this may cause distortion. Check that the remaining packaging contents correlate with the component checklist below. - Page 4 FIXING THE APPLIANCE: Marking Positions: Safety Aspects: Tools Required: Ruler Use safety goggles and or gloves Spirit level Keep children away during assembly and installation Pencil Seek help “2 man lift” required when fitting to wall. CAUTION ENSURE THAT ANY WALL FIXINGS DO NOT PENETRATE OR DAMAGE ANY HIDDEN CABLES, PIPES OR OTHER UNSEEN SERVICES DURING INSTALLATION Having selected the final mounting position for the appliance, taking into account the site requirements as detailed above, the fire can now be fixed to the wall.
- Page 5 FIXING THE APPLIANCE (continued): Placement of Pebbles: Unpack the 24 pebbles and arrange them over the fuel bed as follows: 6 large sized positioned at the rear. Leave a gap of approxi- mately 25mm between the back panel and the pebbles. This allows light to shine up through the cut outs and illuminate the back panel.
-
Page 6: Maintenance And Servicing
MAINTENANCE and SERVICING: ALWAYS DISCONNECT/ISOLATE THE APPLIANCE FROM THE MAINS SUPPLY OUTLET PLUG/ AND ALLOW TO COOL BEFORE UNDERTAKING ANY MAINTENANCE. Excluding lamps and fuses, use only genuine spare parts available from your supplier. Replacement lamps must be of the same wattage and spec- ification as those stated in Section 3.0 Appliance Data. - Page 7 Manufactured by Focal Point Fires plc, Avon Trading Park, Christchurch, Dorset BH23 2BT Tel: 01202 499330 Fax: 01202 499326 www.focalpointfires.co.uk e-mail: sales@focalpointfires.co.uk DO 005915/0 © 2007 Focal Point Fires plc.
