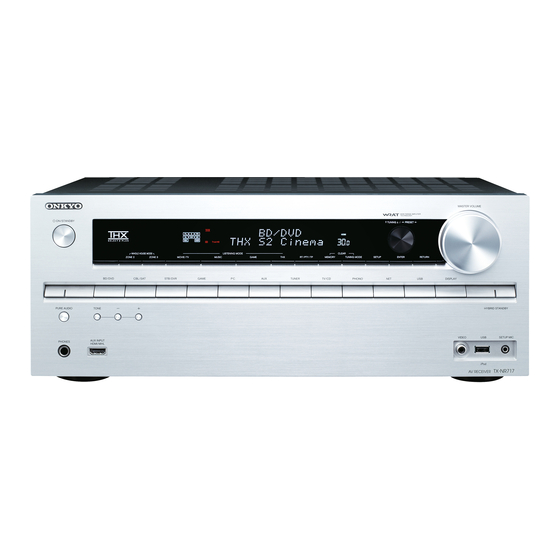

Onkyo TX-NR717 Quick Start Manual

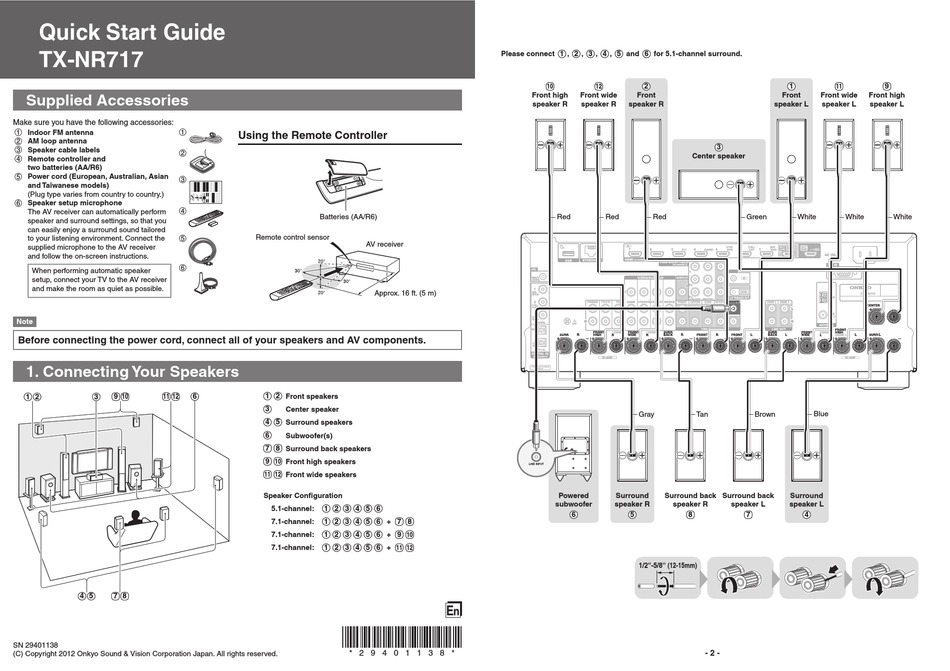

Quick Start Guide
TX-NR717

Supplied Accessories

Make sure you have the following accessories:
a Indoor FM antenna
a
b AM loop antenna
c Speaker cable labels
b
d Remote controller and
two batteries (AA/R6)
e Power cord (European, Australian, Asian
c
and Taiwanese models)
(Plug type varies from country to country.)
f Speaker setup microphone
The AV receiver can automatically perform d
speaker and surround settings, so that you
can easily enjoy a surround sound tailored
to your listening environment. Connect the
e
supplied microphone to the AV receiver
and follow the on-screen instructions.
f
When performing automatic speaker
setup, connect your TV to the AV receiver
and make the room as quiet as possible.
Note
Before connecting the power cord, connect all of your speakers and AV components.

1. Connecting Your Speakers

11 12 6
1 2 3 9 10
4 5 7 8
SN 29401138
(C) Copyright 2012 Onkyo Sound & Vision Corporation Japan. All rights reserved.

Using the Remote Controller

Batteries (AA/R6)
Remote control sensor
AV receiver
Approx. 16 ft. (5 m)
1 2 Front speakers
3 Center speaker
4 5 Surround speakers
6
Subwoofer(s)
7 8 Surround back speakers
9
10 Front high speakers
11 12 Front wide speakers
Speaker Configuration
1 2 3 4 5 6
5.1-channel:
1 2 3 4 5 6 + 7 8
7.1-channel:
7.1-channel: 1 2 3 4 5 6 + 9 10
7.1-channel: 1 2 3 4 5 6 + 11 12
* 2 9 4 0 1 1 3 8 *
Please connect 1 , 2 , 3 , 4 , 5 and 6 for 5.1-channel surround.
10 12
Front high Front wide
speaker R speaker R
Red Red
Powered Surround
subwoofer speaker R
6
E
n
2 1
Front Front
speaker R speaker L
3
Center speaker
Red Green White
Gray Tan Brown
Surround
Surround back Surround back
speaker R speaker L speaker L
5 8 7 4
1/2''-5/8'' (12-15mm)
- 2 -
11 9
Front wide Front high
speaker L speaker L
White White
Blue
