Conditions Of Use; Technical Features - TECNO.MEC SYMBOL Operating Instructions Manual

Congratulations, you have chosen a cleaner of high quality and great performance.
The SYMBOL hot water cleaner will assist you professionally for all washing, descaling,
cleaning and sandblasting purposes.
SYMBOL cleaners are recommended for use in all fields of industry, agriculture, building
industry and tourism.
SYMBOL can give you an answer to all your cleaning requirements both hobby and
professional because it is light and handy, easy to use and easy to maintain.
The large range of versions perfectly fit each kind of use.
DESCRIPTION OF THE MACHINE
SYMBOL is a cold and hot water high pressure cleaner formed by a metal chassis with wheels
and a handle for moving; generator for the production of hot water; gas-oil burner; gas-oil tank;
duct for exhaust smokes; motor-pump for inlet of pressurized water,
electric system with plug; power cable and electric board for control; cover and washing lance
with gun (or other accessories).

CONDITIONS OF USE

USE
The cleaner has been designed and manufactured for the use in car-washing, body-shops,
industries, filling stations, farms, etc.
If the machine is used in closed rooms proper aeration and a good exhaust system is
necessary to avoid the risk of poisoning. To correctly execute these instructions, please contact
our authorised technical service center.
ENVIRONMENT
The electric plant IP 54 allows to use the machine
-OUTSIDE ON SMOOTH SURFACES
-IN A DAMP ENVIRONMENT
In all cases, to assure easy and safe manual handling it is necessary for the floor to be as
smooth as possible.The machine has not been designed to be pulled or towed trained by
mechanical devices.

TECHNICAL FEATURES

Model
Symbol 110/11 M. 1600
Symbol 110/11 T.
Symbol 150/15
Symbol 200/15
Symbol 200/21
Symbol 150/21
HOT WATER HIGH PRESSURE CLEANER
SYMBOL

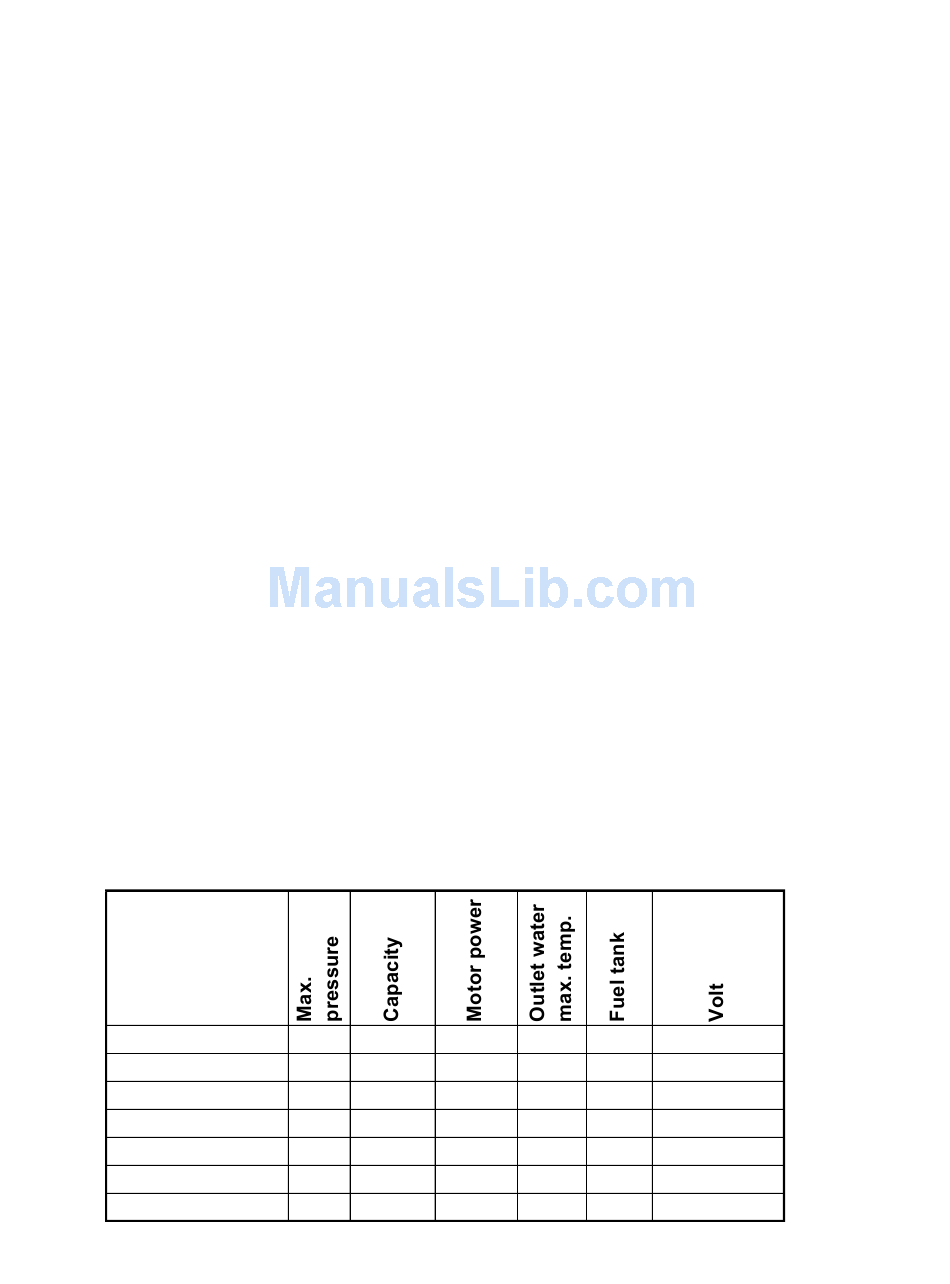

(Psi) (Gp.m) (KW)
2,9 2,2
1600 2,9 2,2
2200 4 4
2900 4 5,5
2900 5,5 7,4
2200 5,5 5,5
(°F) (Gal.) (Volt-Hertz)
285 5,2 220-50
285 5,2 380-50
285 5,2 380-50
285 5,2 380-50
285 5,2 380-50
285 5,2 380-50
