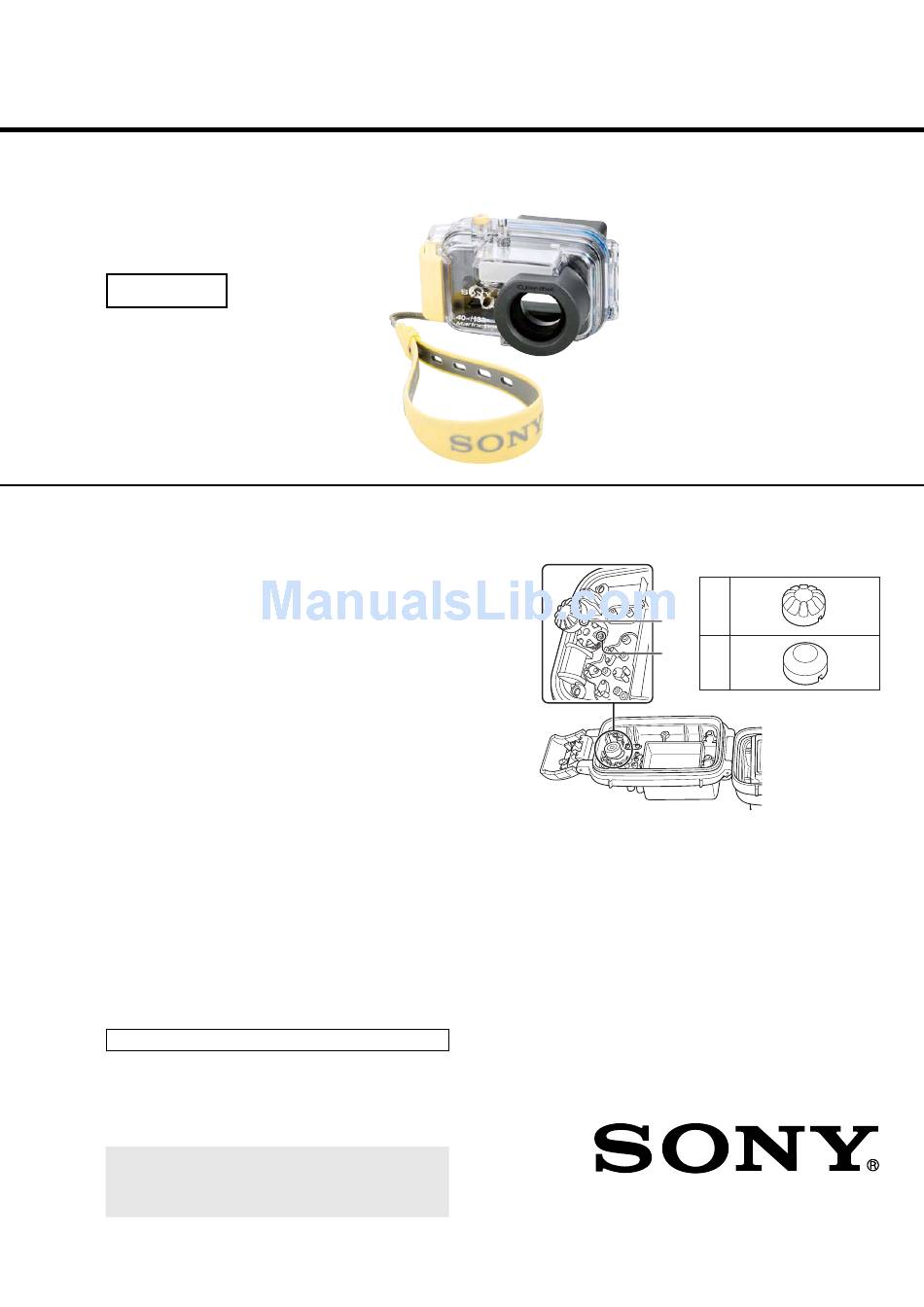

Sony MPK-WB Service Manual

SERVICE MANUAL
Ver. 1.1 2007.05
Revised-1
Replace the previously issued
SERVICE MANUAL 9-852-187-11
with this Manual.
SPECIFICATIONS
Material
Plastic (PC, ABS), glass
Water-resistance
O-ring, buckle
Pressure-resistance
To a depth of up to 40 m (132 feet) underwater
Switches that can be externally operated
POWER (Power,) Mode, Shutter, Zoom (W/T,) Flash, Macro,
Self-timer, DISP, MENU, Control, HOME, Playback
Dimensions
Approx. 146 × 89 × 81 mm (5 3/4 × 3 5/8 × 3 1/4 in.) (w/h/d)
(excluding the projecting parts)
Mass
Approx. 440 g (15.6 oz.) (marine pack only)
Included items
Marine Pack (1)
Hand strap (1)
LCD hood (1)
Grease (1)
O-ring (1)
Spacer (1)
Mode dial cap A (1)
Mode dial cap B (1)
Set of printed documentation
Design and specifications subject to change without notice.
Useable at a depth of up to 40 m (132 feet) underwater.
• This marine pack MPK-WB is exclusively for use with the Sony
Digital Still Camera DSC-W200/W90/W85/W80. (Cyber-shot for this
marine pack is not available in all countries.)
• This marine pack is water-resistant, enabling the digital still camera
to be used in the rain, snow or at the beach.
A loose or nipped O-ring, sand or dirt on the O-ring may cause
water leaks under water.
Be sure to check the O-ring before use.
For details, read the O-ring Maintenance Manual.
MPK-WB
9-852-187-12
MAIN FEATURE
MPK-WB
Before use
You must attach either of the supplied Mode dial caps,
depending on the model of your digital still camera, to
the MPK-WB. See the table for the cap compatible with
your camera.
Attaching the Mode dial cap
Referring to the illustration, align the notch in the Mode
dial cap (a) with the projection on the Mode dial inside
the marine pack (b), and firmly press the cap onto the
dial.
Sony EMCS Co.
US Model
Canadian Model
AEP Model
Chinese Model
Mode dial cap
A
DSC-
W200
a
B
DSC-
b
W90/
W85/
W80
MARINE PACK
2007E0200-1
© 2007.05
Published by Kohda TEC
