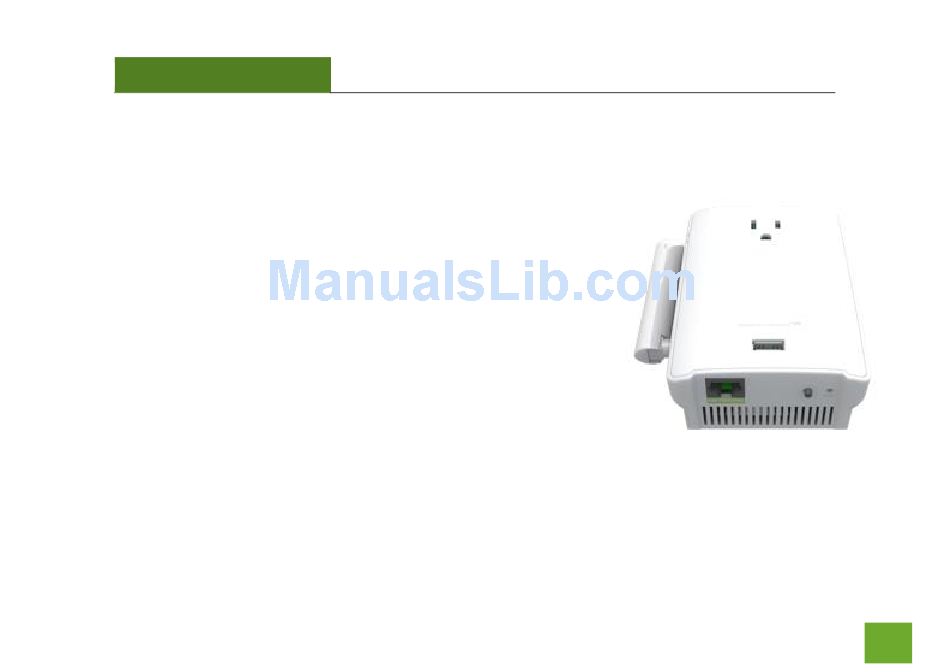

LED Indicators, Ports and Buttons

Signal Strength LED: Indicates when the Range Extender.
Power LED: Indicates when the Range Extender is powered on. The LED
will flash rapidly when there is active Wi-Fi data traffic.
Antenna Connector: Dual Band RJ-SMA antenna connector.
Compatible with all dual band antennas that have RP-SMA connectors.
Reset: Push down once to reboot the Range Extender. Hold down
for 5-10 seconds to reset the Range Extender back to factory settings.
WPS: Hold down for 3 seconds to enable WPS push button configuration.
Wired Port: RJ45 10/100/1000M Gigabit Port for connecting wired devices
such as PCs, TVs, game consoles and more.
Wired Port LEDs: Indicates when a networking device is connected to the
wired port. The LED flashes rapidly when wired data traffic is transmitted or received. Gigabit connections will
have a green LED.
Pass-Thru Power Outlet: Maintain use of your power outlet with an available pass through outlet.
USB Charging Port: Charge your USB powered devices with a fast charging USB port.
