FIRMWARE UPGRADES

Firmware can easily b upgraded using the Intellijel USB ISP and Firmware Updater App:
http://www.intellijel.com/firmware-updates/

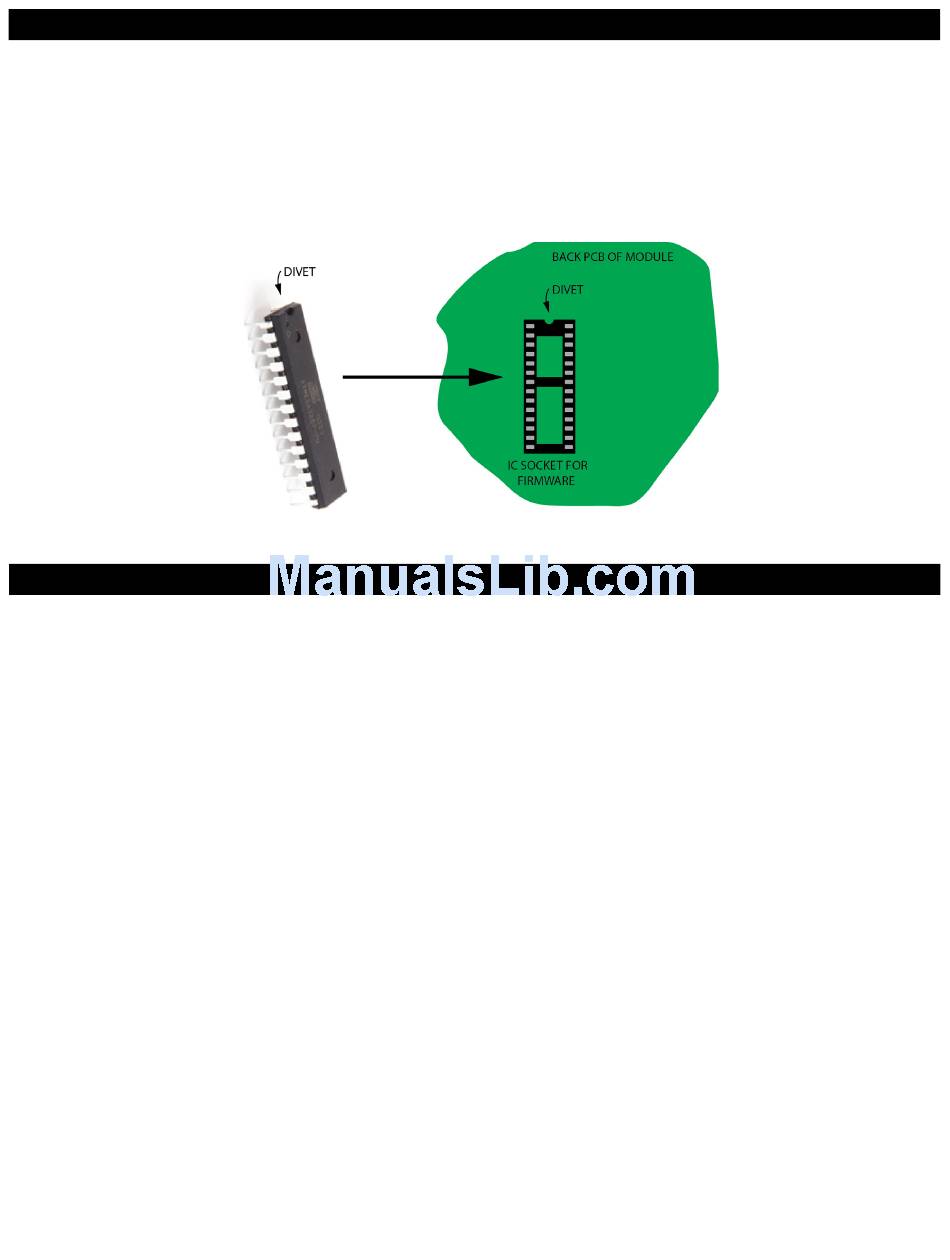

Alternatively it be upgraded by replacing the socketed IC on the back of the Metropolis with a new IC
obtained from Intellijel Designs Inc. or an authorized retailer. Carefully pry out the old IC. Then make
sure the divet on the chip matches the divet in the socket for correct polarity and press firmly into the
socket.

TECHNICAL SPECIFICATIONS

INPUTS
AUX A, AUX B: -5V to +5V
RESET, CLK: 0 to +5V (logic levels)
OUTPUTS
GATE, CLOCK, SYNC: 0 to 5V (logic levels)
PITCH: 0 to 5V (1V/Oct scaling)
MAX CURRENT DRAW
195mA @ +12V,
8mA @ -12V
MODULE DIMENSIONS
Width: 34HP
Depth: 45mm
This modular device is intended to be used in the Eurorack standard modular system and its associ-
ated enclosures and power supply specifications.
For details on the technical specifications of Eurorack modular synthesizers please visit
http://www.doepfer.de/a100_man/a100t_e.htm
