Metropolis v1.0 MANUAL

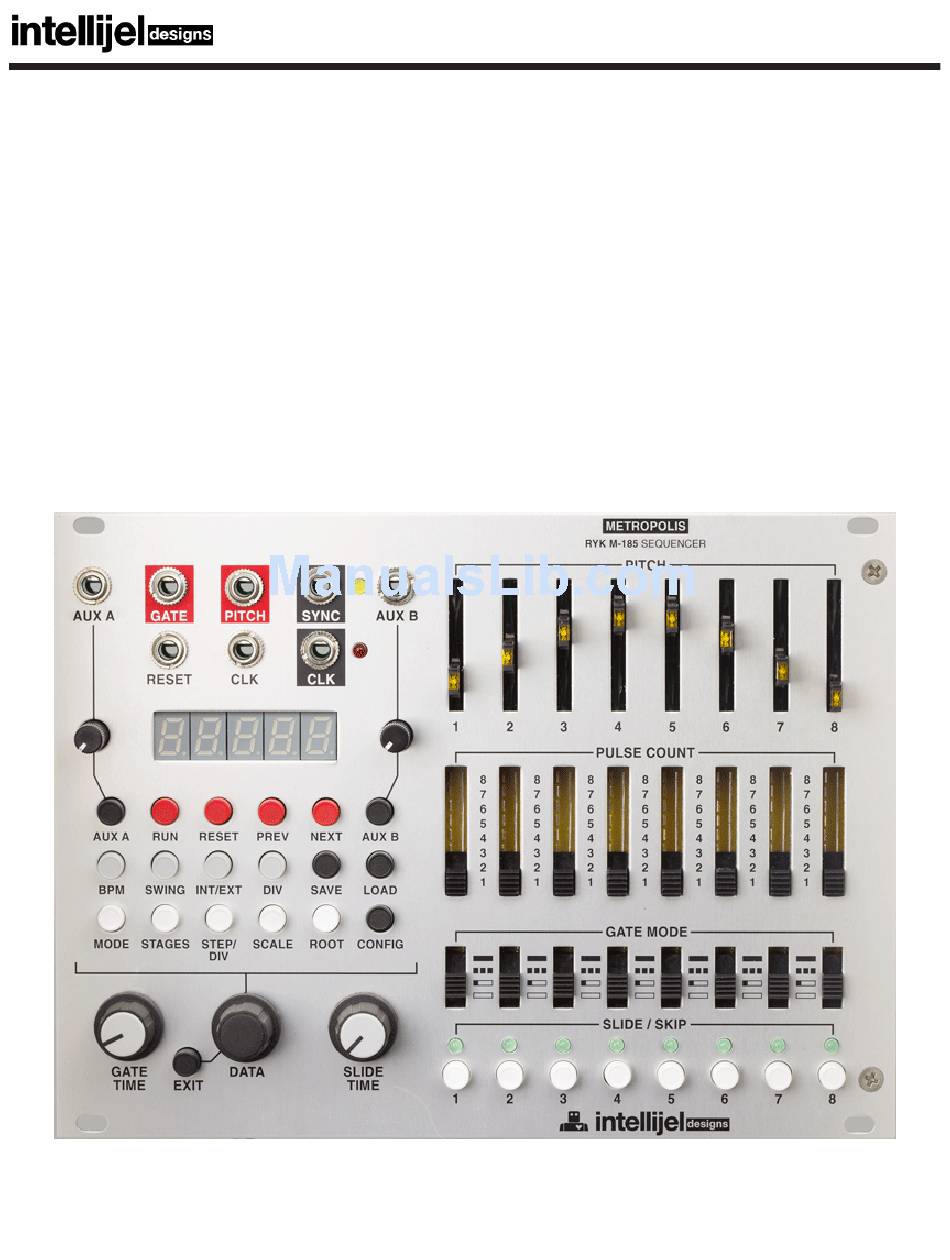

The Metropolis is a unique and powerful Eurorack format musical sequencer inspired by the Ryk
M-185 (a Roland System 100m format sequencer.) but with many additional enhancements and func-
tions.
The Metropolis comprises eight "STAGES", each with its own assignable gate mode, pulse count and
pitch value. Each stage can also have a special slide or skip function activated too. The slide function-
ality is a constant time portamento very similar to the Roland TB303 (unlike most synths/sequencers
that use constant rate portamento) which produces a very musical and interesting result.
In addition to the base sequencer settings set with the sliders and switches there is a full menu of
controls and auxiliary modifiers that allows the user to control and manipulate the sequence in many
powerful ways including sequencer direction modes, pitch quantization and scale manipulators, clock
dividers, shuffle and much more.
