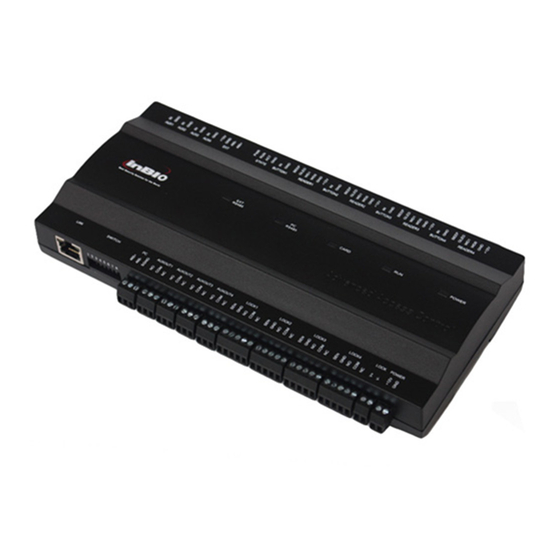

Access control panel ip-based biometric
Hide thumbs Also See for Inbio460:

Advertisement

www.ZKAccess.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Inbio460 and is the answer not in the manual?

Questions and answers

Tado
June 12, 2025

im trying to test my inbio 460 ethernet connection without any other devices connected to the controller but l cant see it on the browser

Summary of Contents for ZKaccess Inbio460

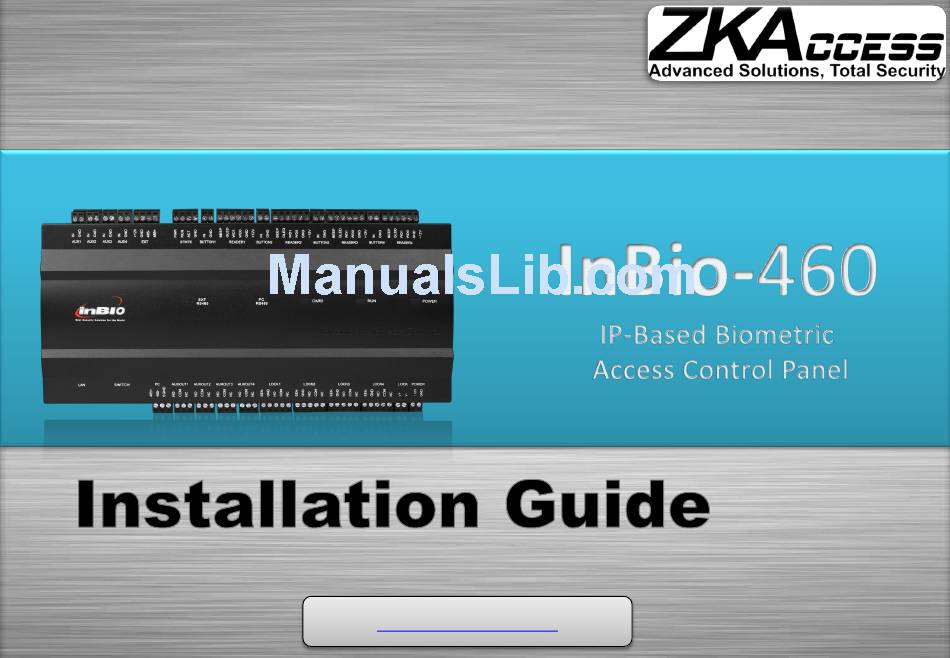

  • Page 1 www.ZKAccess.com...
  • Page 2: Table Of Contents

    Safety Precautions Product Contents Product PIN Diagram LED indicators Product Dimensions Installation of Panel with Casing Wire Legend Power Wiring Diagram FR1200 Connection Weigand Connection Exit button Connection Lock connection Door Sensor Connection Aux. Input Connection Aux. Output Connection Ethernet Connection RS485 Connection DIP switch settings Electrical Specifications...
  • Page 3: Safety Precautions

    Safety Precautions The list below is to keep user’s safety and prevent any loss. Please read carefully before installation. Do not place the device next to Do not place a magnet near the Do not install the device in an area heating equipments product.
  • Page 4 Safety Precautions The list below is to keep user’s safety and prevent any loss. Please read carefully before installation. Do not drop the device. Do not disassemble, repair or Do not use the device for any alter the device. other purpose than specified. Contact your nearest dealer in Do not damage the device In cleaning, do not splash water...
  • Page 5: Product Contents

    Product Contents Basic Contents Wall Mounting Screws – 2 pcs. Wall Plugs– 2 pcs. Surge Suppressing Diode– 4 pcs. Screw Driver – 2 pcs. Software CD InBio Installation Guide Inbio460...
  • Page 6 Product Contents Optional accessories Weigand Card Reader Prox Card FR1200 FP Reader K1-1 Exit Button RS485 convertor ZK4500 FP Enrollment reader Inbio Metal Case Card Enroller...
  • Page 7: Product Pin Diagram

    Product PIN Diagram SD Card Slot LED indicators LINK LED Aux Input 1 LED solid green indicates Ethernet Port LINK TCP/IP communication is (Green) ACT LED normal Aux Input 4 DIP Switch FR1200 Flashing LED indicates data Fingerprint (Yellow) communication is in progress PC RS485 Port Reader Aux Output 1...
  • Page 8: Product Dimensions

    Product Dimension Inbio460 106mm 106mm (4.17in.) 36mm (4.17in.) (1.42in.) Dimensions(L*W*H):226× 106× 36 (mm) 8.89× 4.17× 1.42 226mm (inches) (8.89in.) InBio-Casing 330mm 330mm (13.0in.) (13.0in.) 90.5mm (3.56in.) Dimensions(L*W*H): 400 *90.5*330 (mm) 15.7× 13.0× 3.56 400mm (inches) (15.7in.)
  • Page 9: Installation Of Panel With Casing

    Installation of Panel & Case Metal Case...
  • Page 10: Wire Legend

    Wire Legend Inbio-Box #4 Exit Switch FR1200 #1Exit Button #1Card Reader #4 Card Reader Detector Infrared sensors 12V DC Power Network RS485 Convertor Floodlight Alarm Normally Close Lock Normally Open Lock Power Supply...
  • Page 11: Power Wiring Diagram

    Power wiring diagram Without Inbio460 110-220V Backup Battery Switching power supply With Backup Battery Inbio460 110-220V Backup Battery Switching power supply...
  • Page 12: Fr1200 Connection

    For two readers for one door- the RS485 address 1 is for IN reader, RS485 address 2 is for OUT reader ) 3. If FR1200 is powered from Inbio460 panel ,the length of wire should be less than 100 meters or 330 ft.
  • Page 13: Weigand Connection

    Weigand Connection Beeper Green LED Weigand D1 Weigand D0 DC+(6-14V) Weigand Card Reader Exit Button Connection 12V DC Power Supply DV12V(+) DV12V(-) ZK ABK Exit Button Notice: separate power supply K1-1 Exit Switch...
  • Page 14: Lock Connection

    Lock Connection For Normally Open -Lock powered from panel power supply FR107 12V DC Sensor Sensor 12V DC FR107 For Normally Closed -Lock powered from panel power supply 12V DC Sensor Sensor 12V DC...
  • Page 15 Lock Relay Remove Top Cover you must take the following steps 1. Take apart the cover of inbio460 2. Select the desired lock relay and find its jumpers 3. Take off the jumpers and change to 4. Connect the lock as shown in the diagram below.
  • Page 16: Aux. Input Connection

    Auxiliary Input/Output Aux. Input Connection Smoke Detector 12V DC Aux. output Connection Alarm 12V DC...
  • Page 17: Ethernet Connection

    USB connection. Direct connection To connect Inbio460 with a PC directly, connect both devices with a straight network cable. As the Inbio460 supports auto MDI/MDIX , it is not necessary to use a crossover type cable. ZK4500 Enrollment...
  • Page 18: Rs485 Connection

    RS485 Connection #63 Inbio460 RS485- RS485+ #1 Inbio460 Important Notes Do's and Dont's for RS 485 connection 1. RS485 communication wires should be a shielded or twisted pair cable. RS485 communication wires should be connected in a bus cascade instead of a star form, to achieve a better shielding effect by reducing signal reflection during communications.
  • Page 19: Dip Switch Settings

    1. If you forget the inBio IP address or the device does not work 1. Number 8 is for setting the RS485 termination resistance. Putting the normally, you can use the number 7 terminal to restore inbio460 to switch to ON position is equivalent to parallel connection of a 120ohm factory default settings.
  • Page 20: Electrical Specifications

    Electrical Specification Min. Typ. Max. Notes Working power supply Voltage(V) 14.4 Use regulated DC power adaptor only Current(A) Electronic lock relay output Switching voltage(V) Use regulated DC power adaptor only Switching Current(A) Auxiliary relay output Switching voltage(V) Use regulated DC power adaptor only Switching Current(A) 1.25 Switch Aux.
  • Page 21: Troubleshooting

    Troubleshooting 1. Fingerprint can not be read well or it takes too long.  Check whether a finger or fingerprint sensor is stained with sweat, water, or dust  Retry after cleaning the finger and fingerprint sensor with dry cloth. Reset Button ...
  • Page 22: Specifications

    Specification Communication RS485, Ethernet Baud Rate for RS485 9600-115200 baud Power Supply 12V DC, 3A Device Capacity Card capacity 30,000 ; Log events capacity 100,000 ; Finger capacity 3,000 LED Indicator Indication for communication, power, status and prox card Operating Temp: 32-113 °F (0-45 °C) Environment Operating Humidity: 20% to 80% Number of doors controlled...
  • Page 23 PC485 Table Switch Setting Switch Setting Place Address Place Address Address No. Address No.
  • Page 24 Piscataway, NJ 08854, USA Tel: +1 732-412-6007 Copyright 2013 ZKAccess Inc. All right reserved. Fax +1 732-412-6008 ZKAccess May, at any time and without notice , Make changes or sales@zkaccess.com improvements to the product and services offered and/or cease zkaccess.com...
