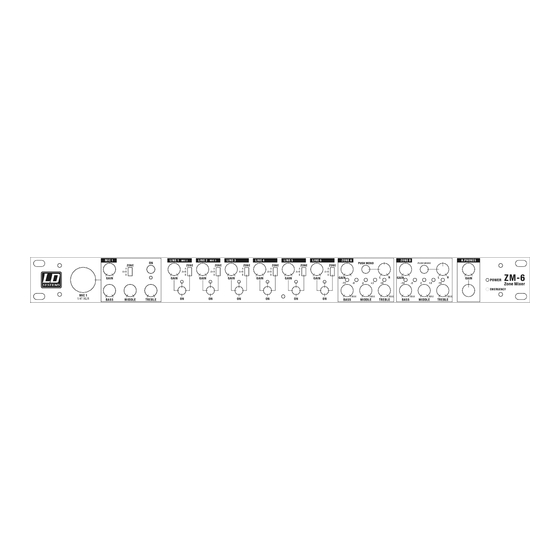

LD ZM-6 User Manual

Professional 19” rack mixer
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
USER MANUAL
USER MANUAL
USER MANUAL
USER MANUAL
.................................. 1
Main features ........................................1
Precautions...........................................2
Front panel ..............................................2
Professional 19" Rack Mixer
Thank you for buying an LD Systems audio product. Please read these
operating instructions carefully before you use the product for the first
time and keep them handy for future reference.
Content
ZM-6
Rear panel..........................................3
Connections (setup)....................................4
Specifications ............................................5

Advertisement

loading

Related Manuals for LD ZM-6

Summary of Contents for LD ZM-6

  • Page 1: Table Of Contents

    Professional 19” Rack Mixer ZM-6 Thank you for buying an LD Systems audio product. Please read these USER MANUAL USER MANUAL USER MANUAL USER MANUAL operating instructions carefully before you use the product for the first time and keep them handy for future reference.

  • Page 2: Safety Notices

    5.) Do not attempt to repair the unit by yourself. Service or repairs should be carried out only by qualified personnel. 2． ． ． ． Main features The ZM-6 is a user friendly mixer specially designed for professional installations. With full versatility, the 19” rack mixer is perfect for discotheques, clubs, theatres, etc. The rack mixer features:...

  • Page 3: Precautions

    14) Power indicator (green LED): Lights up to indicate that the mixer is switched on. 15) Emergency input indicator (red LED): Indicator for24 V DC power and activation of the emergency audio input (emergency announcements). ZM-6 PROFESSIONAL 19” RACK MIXER USER MANUAL PAGE 2/5 V-...

  • Page 4: Rear Panel

    (0.5~ 4 seconds). 17) Ground lift switch-activates or deactivates the ground lift function. 18) Power adapter jack – Permits connection of a 24 VDC power adapter. ZM-6 PROFESSIONAL 19” RACK MIXER USER MANUAL PAGE 3/5 V-...

  • Page 5: Connections (Setup)

    6． ． ． ． Connections ( setup） ） ） ） The ZM-6 Rack Mixer is suitable for a wide variety of applications; the diagram below is just one example of a setup configuration. Make sure all knobs are at “ zero “ and all devices are off. First, connect all input sources;...

  • Page 6: Specifications

    Dimension（ （ （ （ W×D×H） ） ） ） 483 (W) x 200 (D) x 44( H) mm Net weight 2.2 kgs ZM-6 Professional 19” Rack Mixer Specifications subject to change without prior notice. ZM-6 PROFESSIONAL 19” RACK MIXER USER MANUAL PAGE 5/5 V-...
