Summary of Contents for Drive Enigma
-
Page 2: Table Of Contents

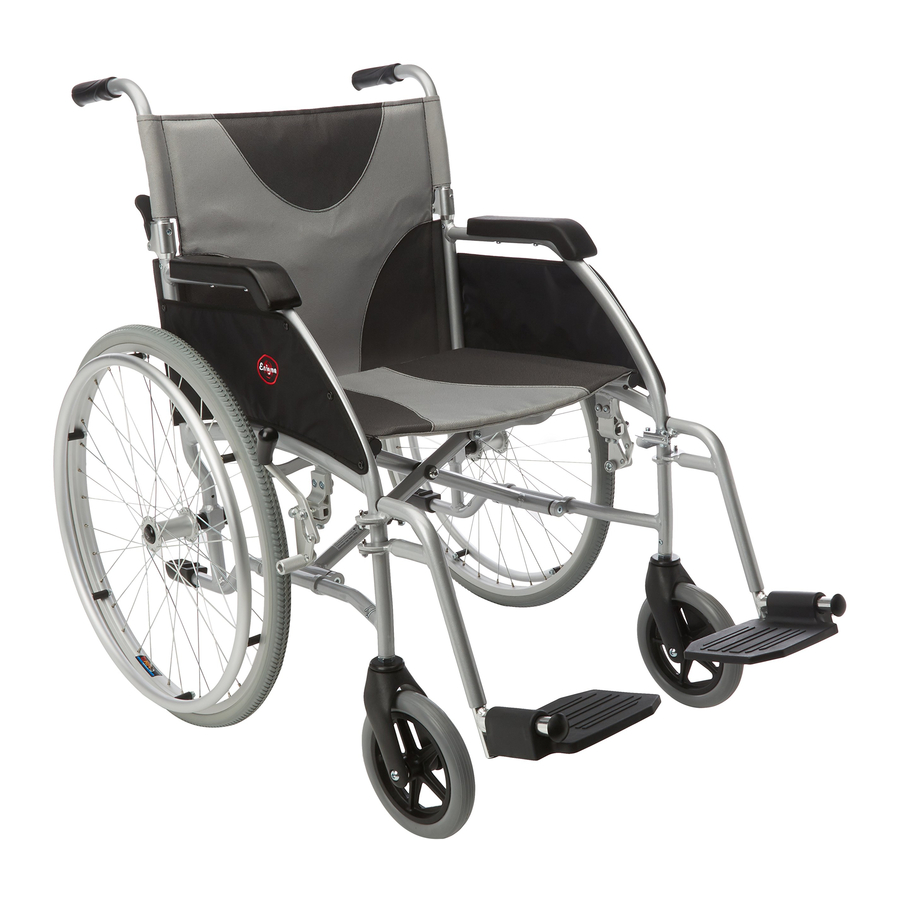

7. Using the Stepper Tube 13. Warranty introduction The Enigma lightweight aluminium wheelchair is designed for occasional or frequent use, and can be used indoors and outdoors. The wheelchair is designed for a single user of up to 125kg (20 stone), depending upon the model purchased. -
Page 3: Folding Back Mechanism
Do not push down on the handles to raise the front of the wheelchair, as this could result in damage to the wheelchair. Use the stepper tube as described later in the handbook. Enigma Lightweight Aluminium Wheelchair (LAWC_IFU 12/14) Page 3 of 12... - Page 4 IMPORTANT: The wheelchair is suitable as a seat in a motor vehicle. Please refer to the relevant section. Enigma Lightweight Aluminium Wheelchair (LAWC_IFU 12/14) Page 4 of 12...
-
Page 5: Using The Stepper Tube
To lock the brakes, press the levers are pulled simultaneously to ensure the wheelchair travels in a lock tab (B) forward. To release, straight line. pull the tab (B) back. Enigma Lightweight Aluminium Wheelchair (LAWC_IFU 12/14) Page 5 of 12... -
Page 6: Operation And Propulsion
The user can propel themselves by pushing on the handrims attached to the side of the rear wheels, and slow themselves down by applying pressure to the handrims. When stationary the brakes should always be applied. Enigma Lightweight Aluminium Wheelchair (LAWC_IFU 12/14) Page 6 of 12... -
Page 7: Using A Lap Belt
The lap belt may not be suitable for all users of wheelchairs. Seek professional medical advice before using the lap belt. Enigma Lightweight Aluminium Wheelchair (LAWC_IFU 12/14) Page 7 of 12... - Page 8 If it is not feasible to transfer to the vehicle’s seat then the Enigma wheelchair may be used as a chair whilst the vehicle is moving with the necessary restraints and with the wheelchair facing the front of the vehicle.
- Page 9 The wheelchair should be kept clean and dust free. This can be done with a duster or damp cloth. The user should routinely check the following items. It is recommended that a Drive Medical dealer services the wheelchair annually, where these items should be repaired, replaced, adjusted and/or lubricated if required: ...
-
Page 10: Specification
(W x D x H) 13kg (29lb) 11.6kg (25lb) Weight * 1 8kg (18lb) 10.4kg (23lb) Weight * 2 Max User Mass 125kg / 20 stone 125kg / 20 stone Max Gradient 10º 10º Enigma Lightweight Aluminium Wheelchair (LAWC_IFU 12/14) Page 10 of 12... -
Page 11: Warranty
Your Drive branded product is warranted to be free of defects in materials and workmanship for one year from date of purchase. This device was built to exacting standards and carefully inspected prior to shipment. This warranty is an expression of our confidence in the materials and workmanship of our products and our assurance to the customer. - Page 12 Z16460-01ST: 24” rear wheel EB007: Brake set (for 24” wheel) The parts are available exclusively from Drive Medical stockists. To order the parts please visit the stockist where you bought the wheelchair or visit www.drivemedical.co.uk to find your local stockist.
