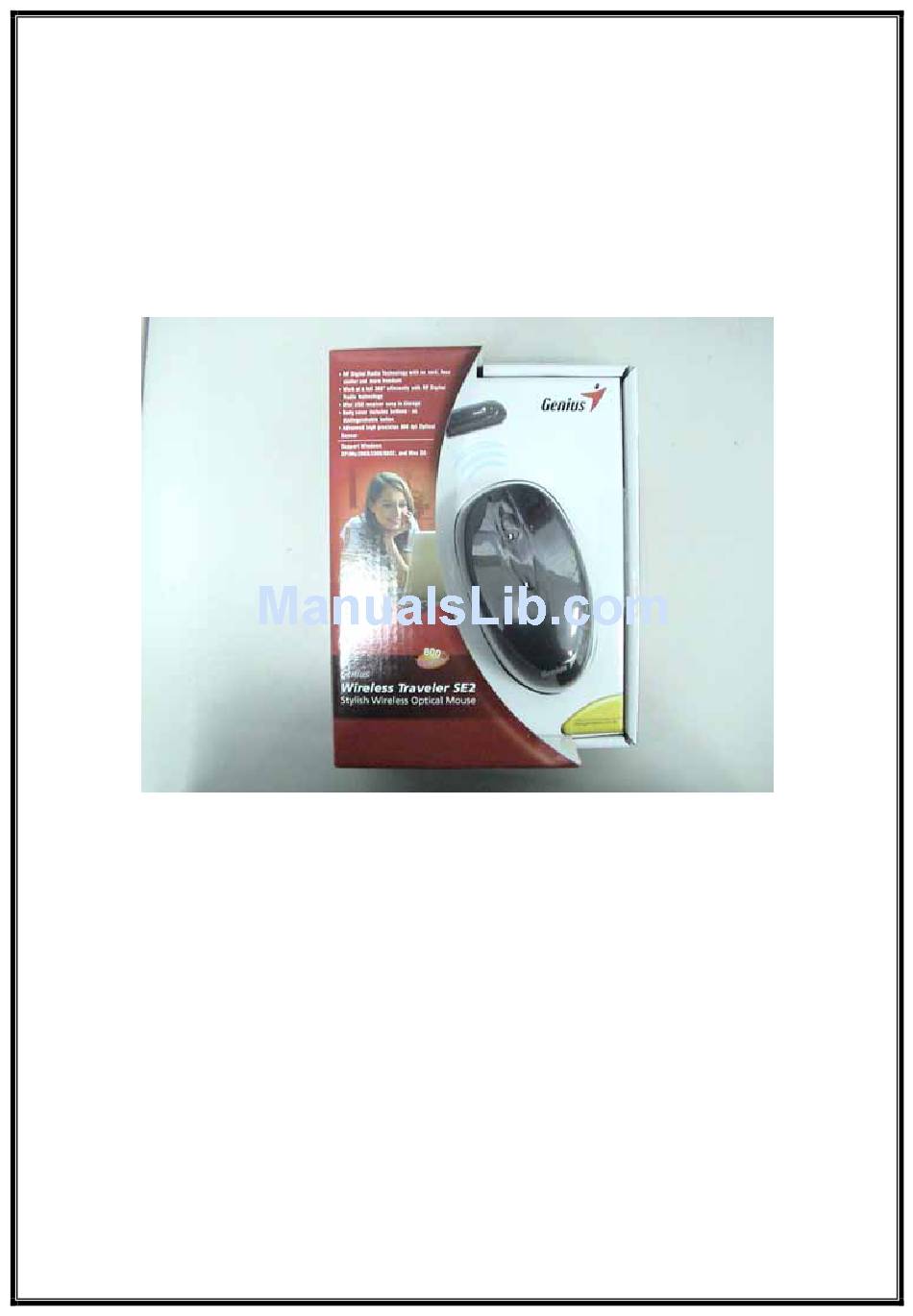

- Page 1 Service Manual Wireless Traveler SE2...
-
Page 2: Table Of Contents
Service Manual Wireless Traveler SE2 Table of Contents Chapter 1. Introduction ........................2 a. System Requirements....................2 b. Support Windows..................... 2 Chapter 2. Troubleshooting.......................3 Chapter3. Testing Procedures……………………………………………………………..4 a.Testing Flow Chart……………………………………………………………………4 b.Check Receiver LED………………………………………………………………….5 c.Check Mouse LED……………………………………..……………………………..6 d.Check Mouse Button………………………………..………………………………7 e.Check Cursor…………………………………………………………………………8 f.Check Connecting between PC and Mouse…………………………………………9... -
Page 3: Chapter 1. Introduction
Service Manual Wireless Traveler SE2 Chapter 1. Introduction a. System Requirements ♦ IBM PC Pentium 233 compatible or higher ♦ Windows XP/Me/2003/2000/98,Mac OS 8.6 or higher ♦ Available PS2 orUSB port b. Support Windows ♦ XP//Me/2003/2000/98SE, and Mac OS Version 1.0... -
Page 4: Chapter 2.Troubleshooting
Service Manual Wireless Traveler SE2 Chapter 2.Troubleshooting Item Condition Probable Reasons Solutions 1. Mouse can’t 1. Cursor can’t work 1. Receiver or mouse Change Receiver or work failed mouse upper PCBA 2. Button can’t 1.Press button no respond 1. Mouse upper PCBA... -
Page 5: Chapter3. Testing Procedures
Service Manual Wireless Traveler SE2 Chapter 3. Testing Procedures a. Testing flow chart START Check Receiver Replace Receiver Replace battery Check Mouse or Mouse down PCBA Check Mouse Replace Mouse buttons down PCBA Replace Check Cursor battery or Mouse down PCBA... -
Page 6: B.check Receiver Led
Service Manual Wireless Traveler SE2 b.Check receiver LED If receiver LED is off the receiver can not function, please replace receiver. Receiver LED Version 1.0 Page 5... -
Page 7: C.check Mouse Led
Service Manual Wireless Traveler SE2 c.Check Mouse LED If the mouse LED is off the mouse will not function, please replace new battery or mouse down PCBA. Mouse LED Mouse down PCBA Version 1.0 Page 6... -
Page 8: D.check Mouse Button
Service Manual Wireless Traveler SE2 d.Check mouse buttons If the mouse buttons do not function, please replace mouse down PCBA. Mouse down PCBA Version 1.0 Page 7... -
Page 9: E.check Cursor
Service Manual Wireless Traveler SE2 e.Check cursor If cursor is unstable or does not move smoothly, please replace new battery. If still does not work after replacing new battery please replace mouse down PCBA. Mouse down PCBA Version 1.0 Page 8... -
Page 10: F.check Connecting Between Pc And Mouse
Service Manual Wireless Traveler SE2 f.Check connecting between PC and mouse If receiver LED and mouse LED are on and the mouse still can not function, please replace receiver or replace mouse upper PCBA. Mouse upper PCBA Version 1.0 Page 9... -
Page 11: Chapter 4. Removal And Replacement
Service Manual Wireless Traveler SE2 Chapter 4. Removal and Replacement Step Description Picture 1. Turn over To disassemble the mouse, you mouse have to turn over mouse. 2. Loose Using screwdriver to loose 1 screws screw after taking the battery cover apart. - Page 12 Service Manual Wireless Traveler SE2 4. Take the down PCBA and upper PCBA with hand Down PCBA Upper PCBA Caution: The receiver’s covers can not be taken apart because the receiver cover is not connected with screws but plastic welder, if you repair receiver you have to only replace receiver.
-
Page 13: Chapter 5. Parts List
Service Manual Wireless Traveler SE2 Chapter 5. Part list Item Parts number Description 25000284101 Receiver Assembly 20000060100 Mouse upper PCBA 20000061100 Mouse down PCBA Chapter 6. Tools 1. Screwdriver cross Version 1.0 Page 12...
