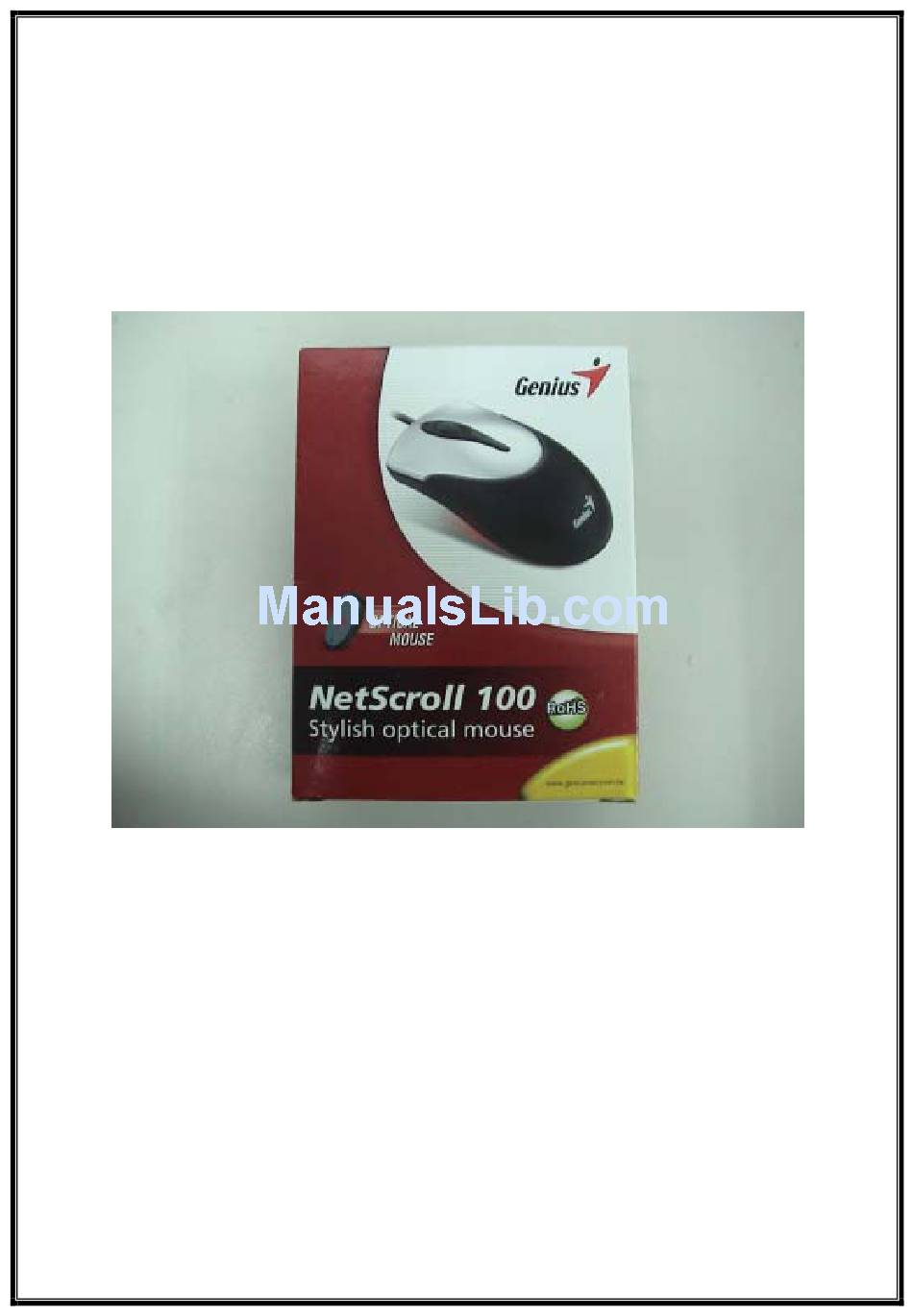

- Page 1 Service Manual NetScroll 100 (PS2)
-
Page 2: Table Of Contents
Service Manual NetScroll 100 (PS/2) Table of Contents Chapter 1. Introduction ........................2 a. System Requirements....................2 Chapter 2. Troubleshooting.......................3 Chapter3. Testing Procedures……………………………………………………………..4 a.Testing Flow Chart……………………………………………………………………4 b.Check PS/2 cable………………………………………………………………….5 c.Check Mouse Cursor………………………………..……………………………..6 d.Check Mouse Buttons………………………………..………………………………7 Chapter 4. Removal and Replacement……………………………………………………………9 Chapter 5. Parts list ........................110 Chapter 6. -
Page 3: Chapter 1. Introduction
Service Manual NetScroll 100 (PS/2) Chapter 1. Introduction a. System Requirements ♦ IBM PC Pentium 233 compatible or higher ♦ Windows XP/Me/2003/2000/98SE or Mac OS or later(for USB model) ♦ Available USB port ♦ Available PS/2 port ♦ CD/DVD-ROM drive for software installation Version 1.0... -
Page 4: Chapter 2.Troubleshooting
Service Manual NetScroll 100 (PS/2) Chapter 2.Troubleshooting Item Condition Probable Reasons Solutions 1. Mouse can’t 1. Cursor can’t work 1. PS/2 cable or mouse Change PS/2 cable or work failed mouse PCBA 2. Button can’t 1.Press button no respond 1. Mouse PCBA or... -
Page 5: Chapter3. Testing Procedures
Service Manual NetScroll 100 (PS/2) Chapter 3. Testing Procedures a. Testing flow chart START Check PS/2 Replace cable PS/2 cable Replace Mouse Check Mouse PCBA Cursor Replace Mouse Check Mouse PCBA or buttons buttons Version 1.0 Page 4... -
Page 6: B.check Ps/2 Cable
Service Manual NetScroll 100 (PS/2) b.Check PS/2 cable when mouse can not work. When mouse can not work please use a good PS/2 cable to check if the mouse can function or not ,if mouse can function that means the old PS/2 cable is failed so please replace a new PS/2 cable. -
Page 7: C.check Mouse Cursor
Service Manual NetScroll 100 (PS/2) c.Check Mouse cursor If the cursor can not still move after replacing PS/2 cable , please replace mouse PCBA . If cursor can not move smoothly,please replace sensor(U1). Mouse PCBA Sensor Version 1.0 Page 6... -
Page 8: D.check Mouse Buttons
Service Manual NetScroll 100 (PS/2) d.Check mouse buttons If the mouse buttons do not function, please replace SW1/SW2/SW3 or mouse PCBA . Mouse PCBA Mouse PCBA Version 1.0 Page 7... -
Page 9: Chapter 4. Removal And Replacement
Service Manual NetScroll 100 (PS/2) Chapter 4. Removal and Replacement Step Description Picture 1. Turn mouse To disassemble the over mouse, you have to remove the pad away and loosen screw to take mouse apart. Screw inside the pad Version 1.0... - Page 10 Service Manual NetScroll 100 (PS/2) 2. Loosen Using screwdriver to screw loosen 1 screw as red Screw inside arrow pointed and then you can take the upper the pad cover apart. 3. Take apart Disconnect PS/2 cable PCBA and then pick PCBA directly.
-
Page 11: Chapter 5. Parts List
Service Manual NetScroll 100 (PS/2) Chapter 5. Part list Item Parts number Description 20000703101 Mouse PCBA 10300192100 Sensor 15160799101 PS/2 cable 10900016000 Buttons SW1/SW2 /SW3 Item number:31010863101 Chapter 6. Tools 1. Screwdriver cross 2. Soldering iron Version 1.0 Page 10...
