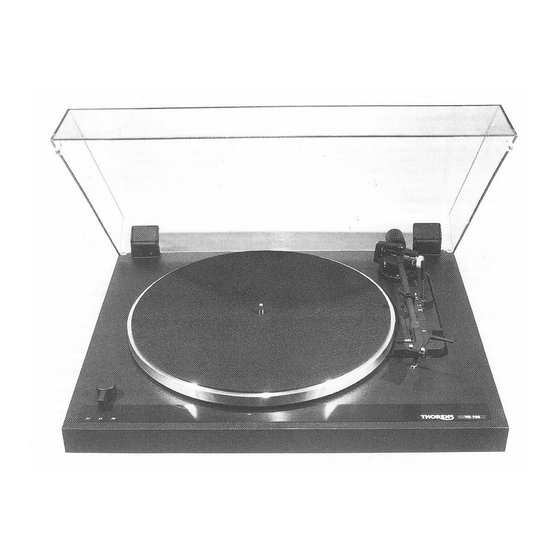

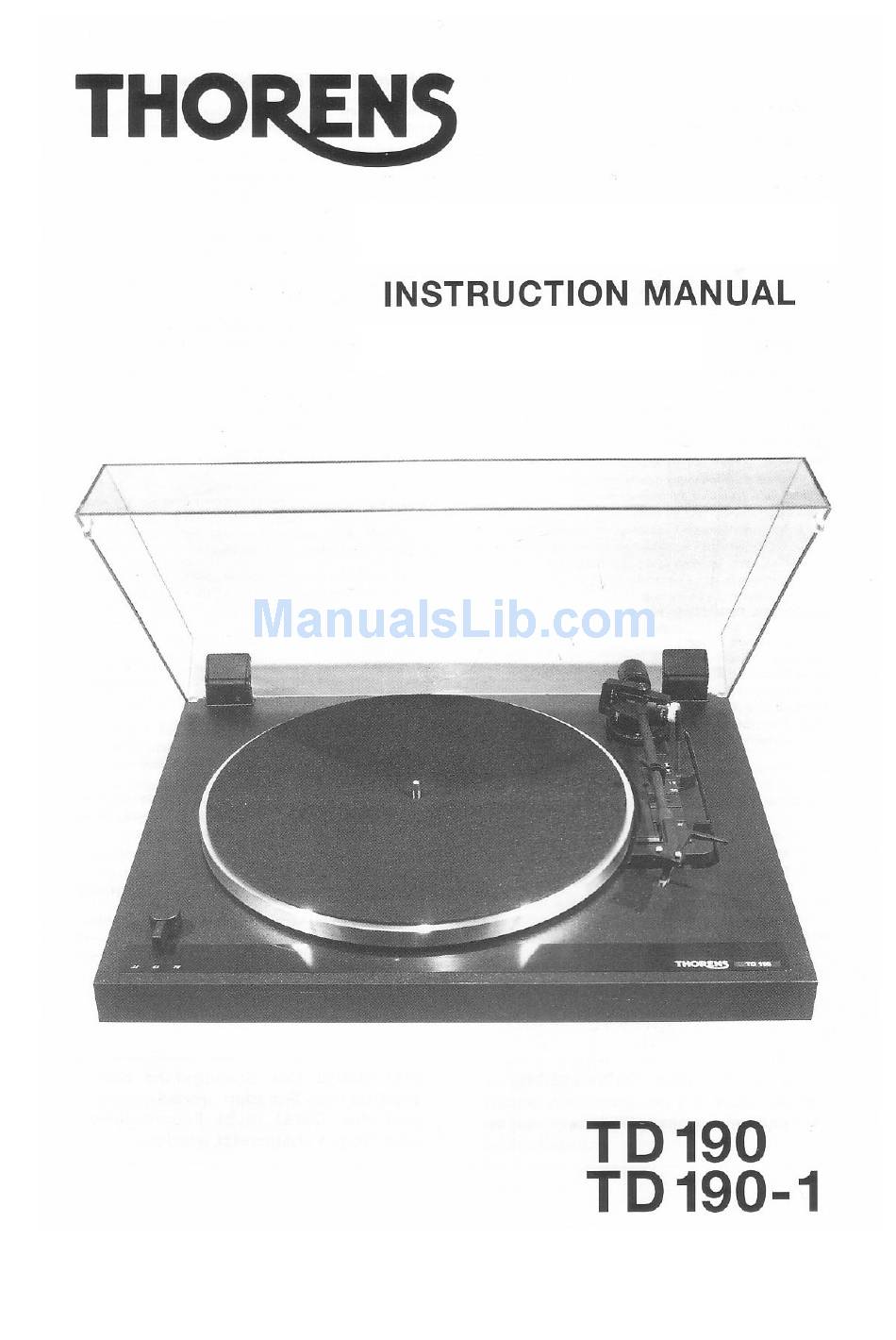

- Page 2 Contents Page Thorens Factory Warranty Technical Specification Unpacking and Assembly Electrical Connections and Installation Tonearm and Pickup Cartridge Vertical alignment of cartridge Operation of the TD 190 TD 190_E...
-
Page 3: Warranty
If the original shipping box is no longer in your possession your THORENS representative will be in the position to supply a new one for a small charge. Shipping costs to THORENS or to an authorized service centre must be prepaid because otherwise the parcel will be rejected upon arrival. - Page 4 Technical Data Measured values = typical values Belt drive electronic-controlled DC motor Mains voltage 100 – 240 V (AC) (Mains set) Line frequency 50 / 60 Hz Power requirement 1,5 W Platter speeds , 45 , 78 U / min Wow and flutter (DIN/WRMS) ±...
- Page 5 Fig. 1 Fig. 2 Fig. 3 Electrical connections By choosing the appropriate THORENS mains transformer this record player can be operated from nearly all existing public mains supplies. The low-voltage plug on the cable that is coming from the mains transformer unit is to be inserted into jack 17 (Fig.
- Page 6 Adjusting tone arm and pick-up cartridge Turn the tracking force adjuster (1) to "0" and the anti-skating knob (2) counter-clockwise until it stops (Fig. 6). Screw the tonearm counter weight (3) onto the rear tonearm tube (Fig. 5). Unlock the tone arm (4) and move it a bit towards the centre of the platter.
- Page 7 In order to playback vintage shellac records (78's) with optimal results the original stylus should be exchanged with a suitable special stylus for shellacs. Please consult your THORENS dealer for further information and details. Fig. 9 TD 190_E...
- Page 8 Selecting Speed With the knob on the left the speed can be set at 33, 45 und 78rpm (Fig. 10) Selecting record diameter With the button (6) on the right near the tone arm, the diameter of the records can be pre-set, whereby 17 cm is used for "Single"...
- Page 9 Thorens Export Company Ltd. Im Hübel 1, CH-4304 Giebenach – Basel / Switzerland Tel. ++41 (0) 61 – 8 13 03 37 Fax Tel. ++41 (0) 61 – 8 13 03 39 Internet: http://www.thorens.ch, Email: info@thorens.ch TD 190_E...
