1. Introduction

SAT>IP Server 2 allows free satellite live TV/Radio programs to be received & distributed
to SAT>IP Client compliant devices like smart phones, tablet pc's and notebook pc's &
other client devices over Wired/Wireless home network in both unicast/multicast mode
of transmission. SAT>IP Server 2 is equipped with four satellite tuners, so users can watch
4 x different frequency simultaneously & with same frequency 8 x different users can
watch simultaneously.
SAT>IP Server 2 device must be connected to same home network in which the Client
devices which are connected to.
SAT-IP Server Features:
• Fully compliant with SAT>IP Specification version 1.2
• Streaming Live SD/HD TV & Radio programs to 4 compatible Clients over LAN/WLAN
• Support MPEG2/MPEG4 TS & PS over IP in both Unicast and Multicast
• Support Unicable, JESS, DiSEqC1.0, DiSEqC 1.2 and USALS
• Firmware update over USB stick or online over the network
• Web UI based device configuration and management (password protected)
Supported Client devices:
• SAT-IP supporting devices (IP 100, .....)
• iOS devices (iPad, iPod, iPhone), Android tablets and smart phones using Elgato
applications
• DLNA/UPnP compatible PC software applications e.g.VLC Player, DVB Viewer
04
ENGLISH
2. Connection & How to access
VL VH HL HH
(RF 4) (RF 3) (RF 2) (RF 1)
Connection with a Universal LNB (z.B. Single, Twin or Quad LNB)
Single LNB = RF1
Twin LNB = RF1 + RF2
Quad LNB = RF1 + RF2 + RF3 + RF4 (The order is not important)
Connection with a Quattro LNB
The device must be connected to the appropriate connector on the Quattro LNB, please
make sure the correct ports on the LNB:
Tuner RF1 = Horizontal High (HH)
Tuner RF2 = Horizontal Low (HL)
Tuner RF3 = Vertical High (VH)
Tuner RF4 = Vertical Low (VL)
Connection with a Unicable LNB
Unicable LNB = RF1
Note that a change must be made in the web configurator. The respective settings, see
page 19.
Connection with a Jess LNB
Unicable LNB = RF1
Note that a change must be made in the web configurator. The respective settings, see
page 20.
Connection with a DiSEqC controlled device
Depending on the connection used, please refer to the corresponding DiSEqC settings.
The respective settings, refer to page 21.
Connection with a Motor (USALS)
Motor (USALS) = RF1
Note that a change must be made in the web configurator. The respective settings, see
page 25.

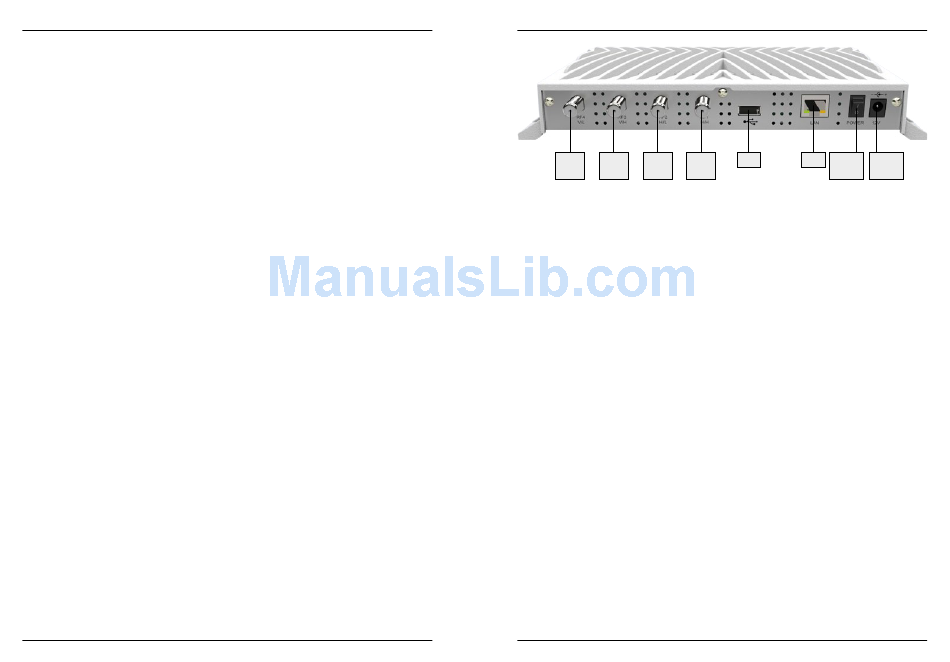

USB LAN Power Power
switch supply
