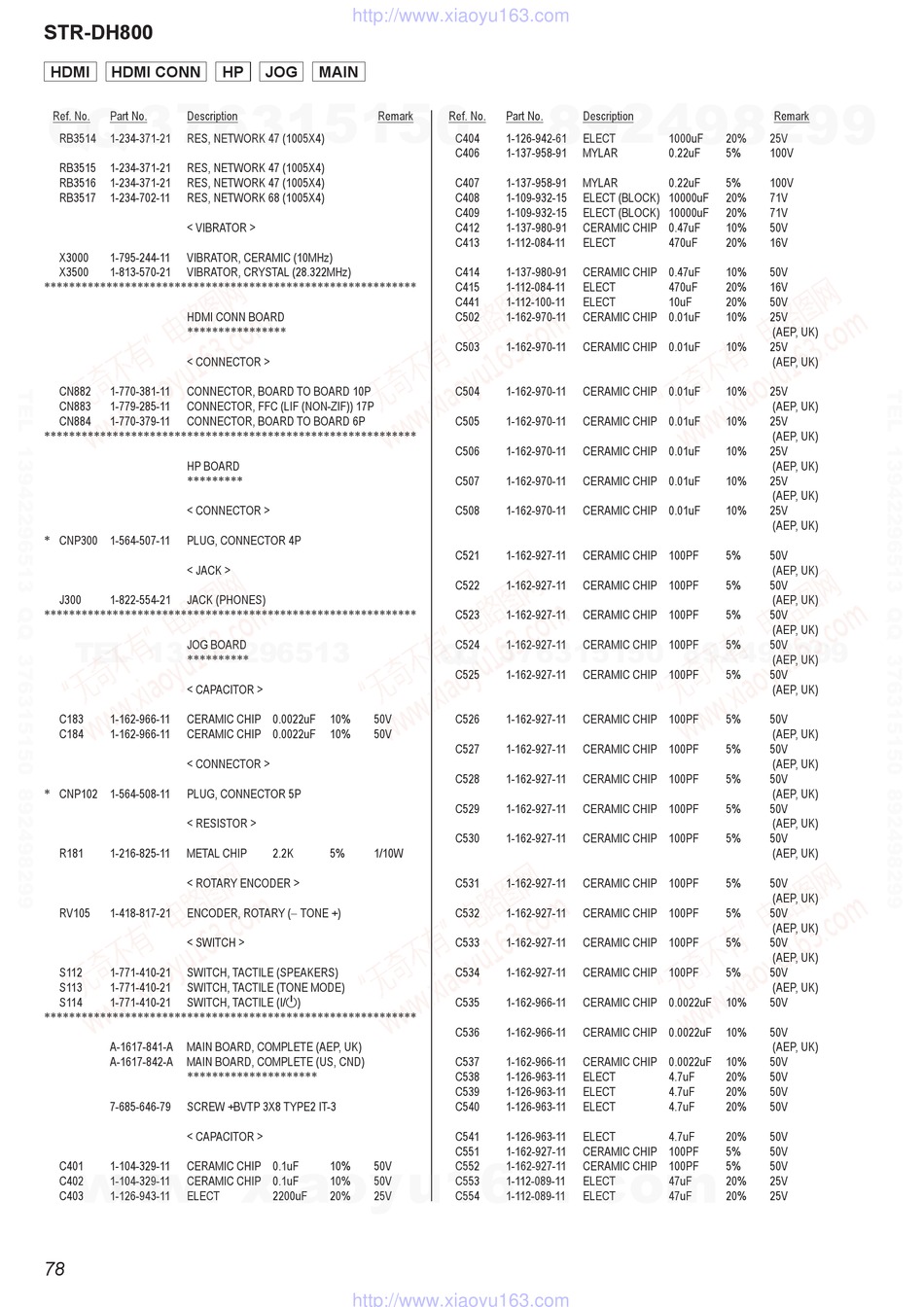

Sony STR-DH800 Service Manual page 78

STR-DH800
QQ
HDMI HDMI CONN
3 7 63 1515 0
Ref. No. Part No. Description
RB3514 1-234-371-21 RES, NETWORK 47 (1005X4)
RB3515 1-234-371-21 RES, NETWORK 47 (1005X4)
RB3516 1-234-371-21 RES, NETWORK 47 (1005X4)
RB3517 1-234-702-11 RES, NETWORK 68 (1005X4)
< VIBRATOR >
X3000 1-795-244-11 VIBRATOR, CERAMIC (10MHz)
X3500 1-813-570-21 VIBRATOR, CRYSTAL (28.322MHz)
************************************************************
HDMI CONN BOARD
****************
< CONNECTOR >
CN882 1-770-381-11 CONNECTOR, BOARD TO BOARD 10P
CN883 1-779-285-11 CONNECTOR, FFC (LIF (NON-ZIF)) 17P
CN884 1-770-379-11 CONNECTOR, BOARD TO BOARD 6P
************************************************************
HP BOARD
*********
< CONNECTOR >
* CNP300 1-564-507-11 PLUG, CONNECTOR 4P
< JACK >
J300 1-822-554-21 JACK (PHONES)
************************************************************
TE
L 13942296513
JOG BOARD
**********
< CAPACITOR >
C183 1-162-966-11 CERAMIC CHIP 0.0022uF
C184 1-162-966-11 CERAMIC CHIP 0.0022uF
< CONNECTOR >
* CNP102 1-564-508-11 PLUG, CONNECTOR 5P
< RESISTOR >
R181 1-216-825-11 METAL CHIP
< ROTARY ENCODER >
RV105 1-418-817-21 ENCODER, ROTARY (− TONE +)
< SWITCH >
S112 1-771-410-21 SWITCH, TACTILE (SPEAKERS)
S113 1-771-410-21 SWITCH, TACTILE (TONE MODE)
S114 1-771-410-21 SWITCH, TACTILE (I/1)
************************************************************
A-1617-841-A MAIN BOARD, COMPLETE (AEP, UK)
A-1617-842-A MAIN BOARD, COMPLETE (US, CND)
*********************
7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
www
< CAPACITOR >
C401 1-104-329-11 CERAMIC CHIP 0.1uF
.
C402 1-104-329-11 CERAMIC CHIP 0.1uF
C403 1-126-943-11 ELECT
78
http://www.xiaoyu163.com
HP JOG MAIN
Remark
10% 50V
10% 50V
2.2K 5% 1/10W
x ao
y
10% 50V
i
10% 50V
2200uF 20% 25V
http://www.xiaoyu163.com
8
Ref. No. Part No.
C404 1-126-942-61
C406 1-137-958-91
C407 1-137-958-91
C408 1-109-932-15
C409 1-109-932-15
C412 1-137-980-91
C413 1-112-084-11
C414 1-137-980-91
C415 1-112-084-11
C441 1-112-100-11
C502 1-162-970-11
C503 1-162-970-11
C504 1-162-970-11
C505 1-162-970-11
C506 1-162-970-11
C507 1-162-970-11
C508 1-162-970-11
C521 1-162-927-11
C522 1-162-927-11
C523 1-162-927-11
Q Q
3 6 7 1 3
C524 1-162-927-11
C525 1-162-927-11
C526 1-162-927-11
C527 1-162-927-11
C528 1-162-927-11
C529 1-162-927-11
C530 1-162-927-11
C531 1-162-927-11
C532 1-162-927-11
C533 1-162-927-11
C534 1-162-927-11
C535 1-162-966-11
C536 1-162-966-11
C537 1-162-966-11
C538 1-126-963-11
C539 1-126-963-11
C540 1-126-963-11
C541 1-126-963-11
u163
C551 1-162-927-11
C552 1-162-927-11
.
C553 1-112-089-11
C554 1-112-089-11
2 9 9 4 2 8
Description
ELECT 1000uF 20%
MYLAR 0.22uF 5%
MYLAR 0.22uF 5%
ELECT (BLOCK) 10000uF 20%
ELECT (BLOCK) 10000uF 20%
CERAMIC CHIP 0.47uF 10%
ELECT 470uF 20%
CERAMIC CHIP 0.47uF 10%
ELECT 470uF 20%
ELECT 10uF 20%
CERAMIC CHIP 0.01uF 10%
CERAMIC CHIP 0.01uF 10%
CERAMIC CHIP 0.01uF 10%
CERAMIC CHIP 0.01uF 10%
CERAMIC CHIP 0.01uF 10%
CERAMIC CHIP 0.01uF 10%
CERAMIC CHIP 0.01uF 10%
CERAMIC CHIP 100PF 5%
CERAMIC CHIP 100PF 5%
CERAMIC CHIP 100PF 5%
1 5 0 5 8 2 9 9 4
CERAMIC CHIP 100PF 5%
CERAMIC CHIP 100PF 5%
CERAMIC CHIP 100PF 5%
CERAMIC CHIP 100PF 5%
CERAMIC CHIP 100PF 5%
CERAMIC CHIP 100PF 5%
CERAMIC CHIP 100PF 5%
CERAMIC CHIP 100PF 5%
CERAMIC CHIP 100PF 5%
CERAMIC CHIP 100PF 5%
CERAMIC CHIP 100PF 5%
CERAMIC CHIP 0.0022uF 10%
CERAMIC CHIP 0.0022uF 10%
CERAMIC CHIP 0.0022uF 10%
ELECT 4.7uF 20%
ELECT 4.7uF 20%
ELECT m 4.7uF 20%
ELECT 4.7uF 20%
co
CERAMIC CHIP 100PF 5%
CERAMIC CHIP 100PF 5%
ELECT 47uF 20%
ELECT 47uF 20%
9 9
Remark
25V
100V
100V
71V
71V
50V
16V
50V
16V
50V
25V
(AEP, UK)
25V
(AEP, UK)
25V
(AEP, UK)
25V
(AEP, UK)
25V
(AEP, UK)
25V
(AEP, UK)
25V
(AEP, UK)
50V
(AEP, UK)
50V
(AEP, UK)
50V
(AEP, UK)
2 8 9 9
50V
(AEP, UK)
50V
(AEP, UK)
50V
(AEP, UK)
50V
(AEP, UK)
50V
(AEP, UK)
50V
(AEP, UK)
50V
(AEP, UK)
50V
(AEP, UK)
50V
(AEP, UK)
50V
(AEP, UK)
50V
(AEP, UK)
50V
50V
(AEP, UK)
50V
50V
50V
50V
50V
50V
50V
25V
25V
