- Page 1 AOC-MTGN-i2S User's Guide Revision 1.0a...
- Page 2 Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
-
Page 3: About This Add-On Card
About this Add-on Card The Supermicro® Super I/O Modules provide flexible I/O networking options, and the AOC-MTGN-i2S is the most flexible and scalable 10GbE SFP+ SIOM controller for today’s demanding data center environments. Based on the Intel 10GbE network controller 82599, the AOC-MTGN-i2S addresses the demanding needs of the next generation data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking. -
Page 4: Conventions Used In The User's Guide
AOC-MTGN-i2S Add-on Card User's Guide Conventions Used in the User's Guide Pay special attention to the following symbols for proper system installation and to prevent damage to the system or injury to yourself: Warning: Important information given to ensure proper system installation or to prevent damage to the components or injury to yourself. -
Page 5: Contacting Supermicro
Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML... -
Page 6: Table Of Contents
AOC-MTGN-i2S Add-on Card User's Guide Table of Contents Preface About this User's Guide ....................3 About this Add-on Card ....................3 Returning Merchandise for Service ................3 Conventions Used in the User's Guide ................. 4 Naming Convention ....................... 4 SMC Networking Add-on Cards ..................4 Contacting Supermicro .................... -
Page 7: Chapter 1 Overview
Overview Congratulations on purchasing your add-on card from an acknowledged leader in the industry. Supermicro products are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. For product support and updates, please refer to our website at http://www.supermicro.com/... -
Page 8: 1-3 Specifications
AOC-MTGN-i2S Add-on Card User's Guide 1-3 Specifications General • Intel 82599ES 10GbE controller ® • Super I/O Module (SIOM) Form Factor • Dual SFP+ ports • Load balancing on multiple CPUs • iSCSI remote boot support • Fibre Channel over Ethernet (FCoE) support •... - Page 9 Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) statistics counters • iSCSI remote boot • NC-SI for remote management • Asset Management support on Supermicro® platforms • Controller asset tags such as part number, revision, serial number, and MAC addresses Advanced Software Features • Teaming support •...
-
Page 10: Power Consumption
AOC-MTGN-i2S Add-on Card User's Guide Cables Support • SFP+ direct attach twinaxial copper cables up to 7m • Fiber-optic cables (with required optional SFP+ transceivers) Power Consumption • Typical power consumption: 6.2W • Maximum power consumption: 7.2W Operating Conditions •... -
Page 11: Supported Platforms
CBL-SFP+AOC-3M: 3m 10GbE SFP+ to SFP+ Fiber Active Optical Cable (AOC) • CBL-SFP+AOC-5M: 5m 10GbE SFP+ to SFP+ Fiber Active Optical Cable (AOC) Compliance/Environmental • RoHS Compliant 6/6, Pb Free Supported Platforms • Supermicro® motherboards with Super I/O Module slot • Supermicro® server systems with Super I/O Module slot... - Page 12 AOC-MTGN-i2S Add-on Card User's Guide Notes...
-
Page 13: Chapter 2 Hardware Components

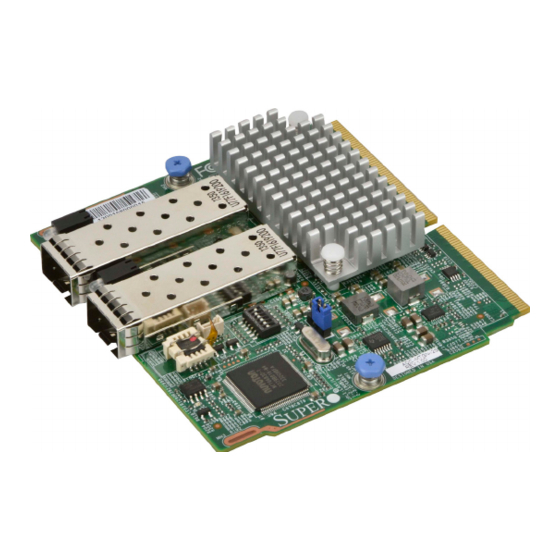

Chapter 2: Hardware Components Chapter 2 Hardware Components Add-On Card Image and Layout The AOC-MTGN-i2S Image LED3 LED2 LED1 JPL1 LAN2 LAN1 Intel 82599ES The AOC-MTGN-i2S Layout... -
Page 14: Major Components
AOC-MTGN-i2S Add-on Card User's Guide Major Components The following major components are installed on the AOC-MTGN-i2S: 1. Intel 82599 10GbE Controller 2. LAN Port 1 and LED1 Indicator 3. LAN Port 2 and LED2 Indicator 4. LED3 - Thermal Alert LED 5. -
Page 15: Connectors And Leds
Chapter 2: Hardware Components Connectors and LEDs LAN Ports Two SFP+ LAN ports (LAN1 and LAN2) are located on the add-on card. These LAN ports support connection speeds of 10Gbps. Use SFP+ direct attach twinaxial copper cables for network connections. LED1 and LED2 Each LAN port has a corresponding LED to indicate speed and data activity. -
Page 16: Jumpers
AOC-MTGN-i2S Add-on Card User's Guide Jumpers Explanation of Jumpers To modify the operation of the add-on card, a jumper can be used to choose between optional settings. A jumper creates shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board. -
Page 17: S1 Dip Switch
Chapter 2: Hardware Components S1 DIP Switch This DIP Switch provides SMBUS address selection. You can configure the card with static SMBUS address. Refer to the tables below for address selections. - Page 18 AOC-MTGN-i2S Add-on Card User's Guide Notes...
-
Page 19: Chapter 3 Installation
Chapter 3: Installation Chapter 3 Installation Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid dam- aging your add-on card, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •... -
Page 20: Before Installation
AOC-MTG-i2S Add-on Card User's Guide Before Installation To install the add-on card properly, be sure to follow the instructions below. 1. Power down the system. 2. Remove the power cord from the wall socket. 3. Use industry standard anti-static equipment such as gloves or wrist strap and follow the precautions listed on page 3-1 to avoid damage caused by ESD. - Page 21 Chapter 3: Installation Follow this step to install the add-on card if your system does not support a swap- pable bracket. Insert the SIOM card in the motherboard and then install the moth- erboard in the chassis. An internal bracket comes with the SIOM card 1U chassis SKU.
-
Page 22: Installing Drivers On Windows
Follow the steps below to install the drivers for Windows. Download the drivers from the Supermicro FTP site at ftp://ftp.supermicro.com/Networking_Drivers/. 1. Run the CDR-NIC. 2. When the SUPERMICRO window appears, click on the computer icon next to the product model. Note: If the FOUND NEW HARDWARE WIZARD screen displays on your system, click CANCEL. - Page 23 Chapter 3: Installation Follow the instructions below to build the driver manually. 1. Move the base driver tar file to the directory of your choice. For example: /home/username/ixgbe /usr/local/src/ixgbe 2. Untar/unzip archive, where <x.x.x> is the version number for the driver tar file: tar zxf ixgbe-x.x.x.tar.gz 3.
-
Page 24: Installing Drivers On Freebsd
AOC-MTG-i2S Add-on Card User's Guide In addition, when using 2.6-based kernels, make sure that older ixgbe drivers are removed from the kernel before loading the new module. To do this, use: rmmod ixgbe; modprobe ixgbe 6. Assign an IP address to the interface by entering the following, where x is the interface number: ifconfig ethx <IP_address>... - Page 25 Chapter 3: Installation ifconfig ixgb<interface_num> <IP_address> 6. Verify that the interface works. Enter the following, where <IP_address> is the IP address for another machine on the same subnet as the interface that is being tested: ping <IP_address> 7. If you want the driver to load automatically when the system is booted: cd ixgb-x.x.x/src make load cp if_ixgb.ko /modules...
- Page 26 AOC-MTG-i2S Add-on Card User's Guide Edit the kernel configuration file (i.e., GENERIC or MYKERNEL) in /usr/src/sys/ i386/conf, and ensure the following line is present: device ixgb Compile and install the kernel. Reboot the system for the kernel updates to take affect.
- Page 27 (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
