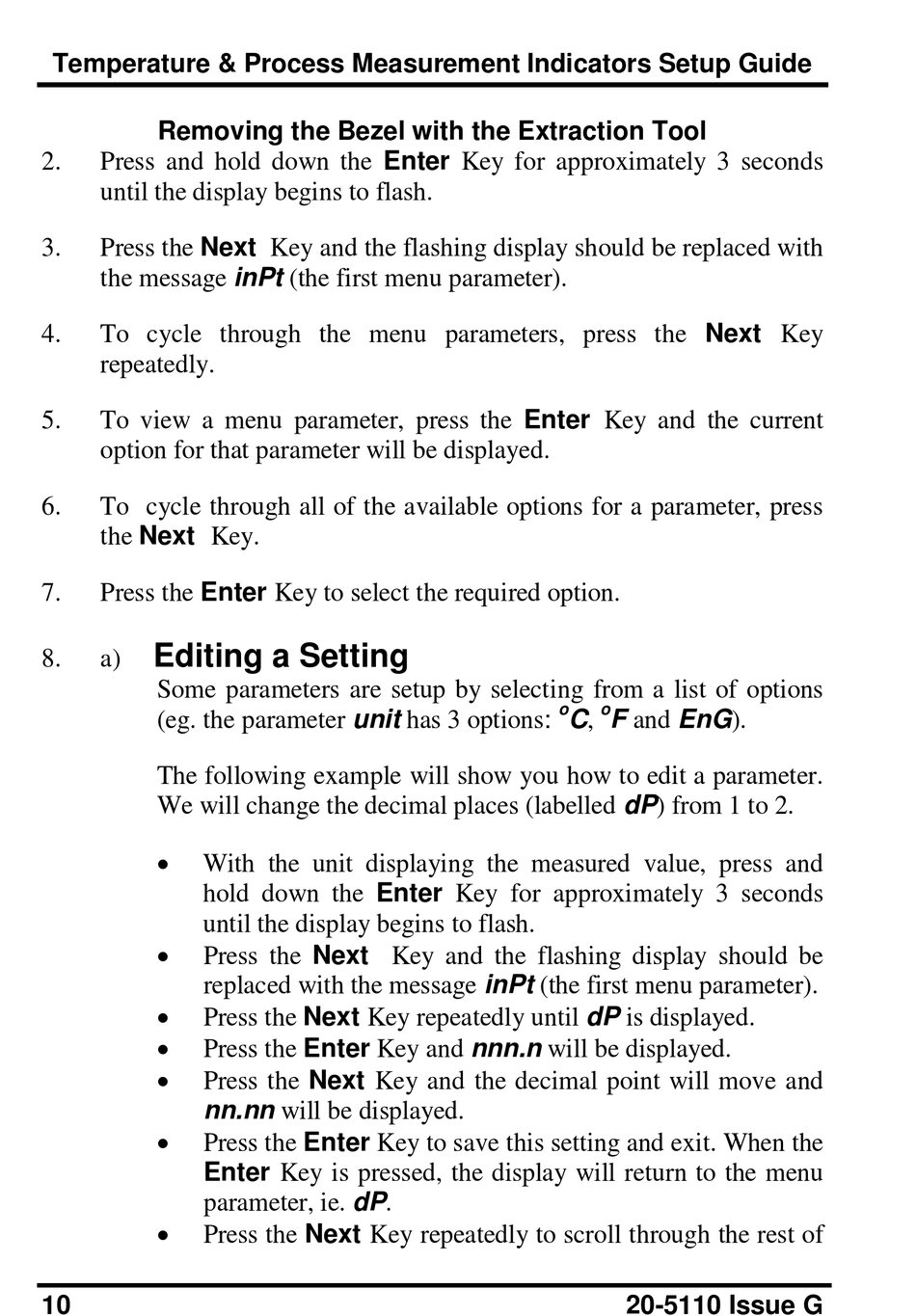

Temperature & Process Measurement Indicators Setup Guide
Removing the Bezel with the Extraction Tool
Press and hold down the Enter Key for approximately 3 seconds
2.
until the display begins to flash.
Press the Next Key and the flashing display should be replaced with
3.
the message inPt (the first menu parameter).
To cycle through the menu parameters, press the Next Key
4.
repeatedly.
To view a menu parameter, press the Enter Key and the current
5.
option for that parameter will be displayed.
6. To cycle through all of the available options for a parameter, press
the Next Key.
Press the Enter Key to select the required option.
7.
Editing a Setting
8. a)
Some parameters are setup by selecting from a list of options
(eg. the parameter unit has 3 options:
The following example will show you how to edit a parameter.
We will change the decimal places (labelled dP) from 1 to 2.

With the unit displaying the measured value, press and
hold down the Enter Key for approximately 3 seconds
until the display begins to flash.

Press the Next Key and the flashing display should be
replaced with the message inPt (the first menu parameter).

Press the Next Key repeatedly until dP is displayed.

Press the Enter Key and nnn.n will be displayed.

Press the Next Key and the decimal point will move and
nn.nn will be displayed.

Press the Enter Key to save this setting and exit. When the
Enter Key is pressed, the display will return to the menu
parameter, ie. dP.

Press the Next Key repeatedly to scroll through the rest of
10
o o
C, F and EnG).
