Summary of Contents for jcb JCB-CD18Li

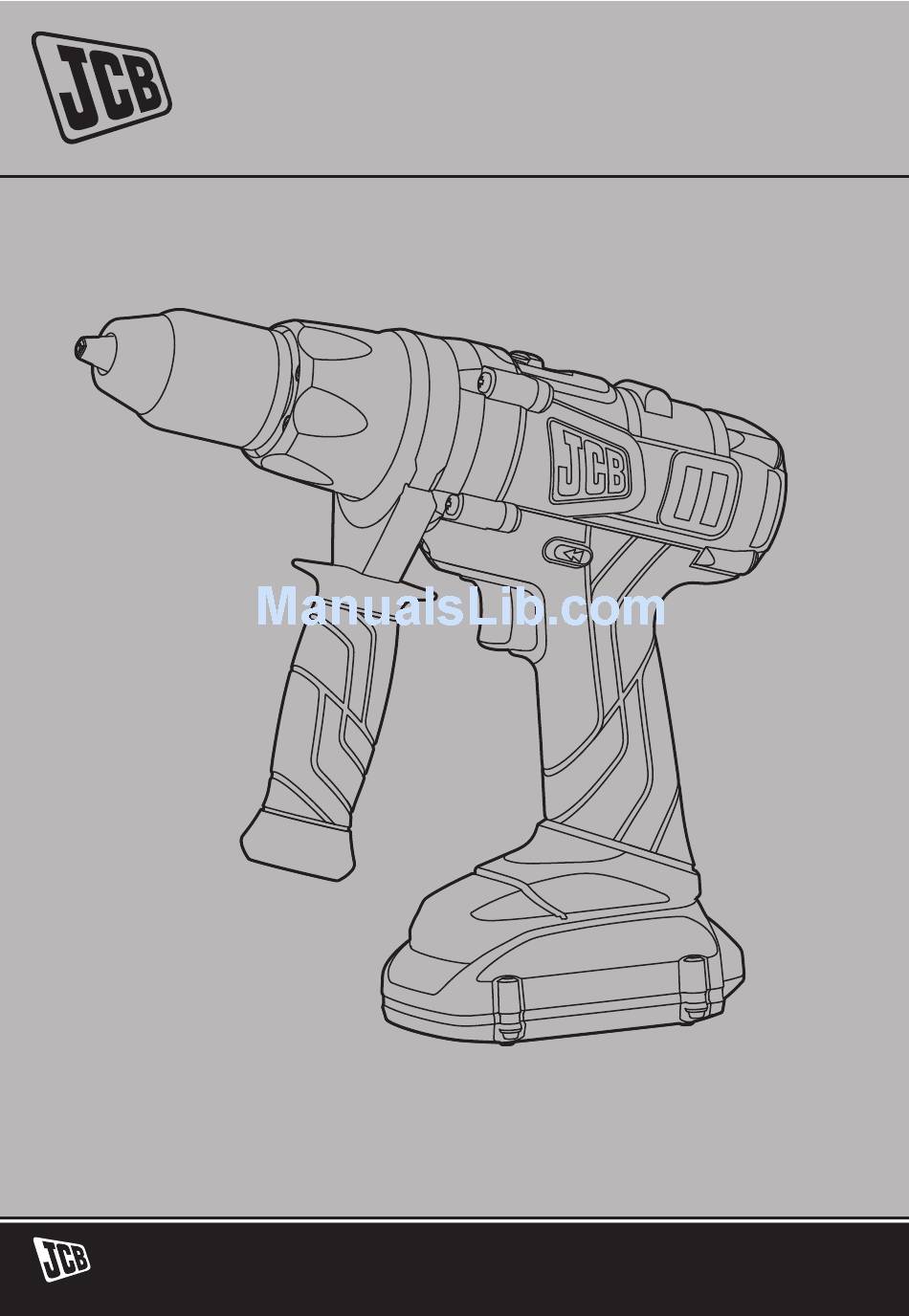

- Page 1 SAFETY AND OPERATING MANUAL CORDLESS COMBI DRILL JCB-CD18Li ORIgInaL InStRuCtIOnS SO53 3LE Customer Helpline 0845 600 5526...
-
Page 3: General Power Tool Safety Warnings
gEnERaL POwER tOOL SafEty waRnIngS waRnIng! Read all earthed or grounded surfaces, safety warnings and all such as pipes, radiators, ranges instructions. Failure to follow the and refrigerators. There is an warnings and instructions may increased risk of electric shock if result in electric shock, fire and/or your body is earthed or grounded. -
Page 4: Power Tool Use And Care
protection. Protective equipment 4. Power tool use and care such as dust mask, non-skid a) Do not force the power tool. safety shoes, hard hat, or hearing use the correct power tool for protection used for appropriate your application. The correct conditions will reduce personal power tool will do the job better injuries. - Page 5 tools with sharp cutting edges are additionally seek medical help. less likely to bind and are easier Liquid ejected from the battery to control. may cause irritation or burns. g) use the power tool, accessories 6. Service and tool bits etc. in accordance with these instructions, taking into a) Have your power tool serviced account the working conditions...
- Page 6 aDDItIOnaL SafEty POIntS fOR yOuR COMBI DRILL 1. Remove the battery pack in fire, or with household waste. from the drill before carrying out Return exhausted batteries to adjustments. your local collection or recycling 2. Do not expose to rain or water. point.
- Page 7 3. Do not charge non-rechargeable batteries. 4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. SO53 3LE Customer Helpline 0845 600 5526...
- Page 8 SyMBOLS To reduce the risk of injury, user must read instruction manual Warning Wear ear protection Wear eye protection Wear dust mask Indoor use only Do not expose to rain or water Do not burn Do not dispose of batteries. Return exhausted batteries to your local collection or recycling point.
-
Page 9: Component List
COMPOnEnt LISt 1. KEyLESS CHuCK 2. tORquE aDJuStMEnt RIng 3. twO-SPEED gEaR COntROL 4. fORwaRD/REvERSE ROtatIOn COntROL 5. On/Off SwItCH 6. BattERy PaCK RELEaSE ButtOn 7. BattERy PaCK * 8. auxILIaRy HanDLE 9. LED LIgHt *not all accessories illustrated are included as standard. SO53 3LE Customer Helpline 0845 600 5526... -
Page 10: Technical Data
tECHnICaL Data Voltage No load speed 0-400/0-1300/min Number of clutch positions 20+1+1 Impact rate 0-6400/0-20800/min Max torque (soft/hard) 35/50N.m Chuck capacity 13mm Wood 35mm Max. drilling Steel 13mm capacity Masonry 16mm Machine weight 2.1kg Charger input 220-240V~50/60Hz 78W Charger output 14.4-18V nOISE InfORMatIOn A weighted sound pressure L... - Page 11 C or less. Plan your work schedule to spread any high vibration tool use across a number of days. aCCESSORIES 1.3 Ah lithium battery pack(JCB-BAT18Li) 1h charger(JCB-FCH18Li) Double ended bit We recommend that you purchase your accessories from the same store that sold you the tool.
-
Page 12: Intended Use
OPERatIng InStRuCtIOnS nOtE: Before using the tool, read the safety and operating manual carefully. IntEnDED uSE The machine is intended for driving in and loosening screws as well as for drilling in wood, metal and plastic. BEfORE PuttIng IntO OPERatIOn a) CHaRgIng tHE BattERy The battery charger supplied is matched to the Li-ion battery... -
Page 13: Operation
After recharge, slide it back into your tool. A simple push with slight pressure will be sufficient. C) auxILIaRy HanDLE Slide the handle onto the drill and rotate to the desired working position. To clamp the auxiliary handle, rotate the handgrip clockwise. - Page 14 control in the center position. 3. REvERSIBLE (See For drilling and screw driving use forward rotation (4) marked “ ” (lever is moved to the left). Only use reverse rotation marked “ ” (lever is moved to the right) to remove screws or release a jammed drill bit.
-
Page 15: Chuck Adjustment
warning: to prevent gear damage, always allow the chuck to come to a complete stop before changing the direction of rotation or the two-speed gear control. 5. CHuCK aDJuStMEnt (See To open the chuck jaws rotate the front section of the chuck. Insert the drill bit between the chuck jaws and rotate the front section in the opposite direction. -
Page 16: Using The Led Light
15 - 19 for driving screws into hard wood for driving larger screws for heavy drilling for drilling in masonry and concrete 7. autOMatIC SPInDLE LOCK (See The automatic spindle lock allows you to use it as a regular screwdriver. You can give an extra twist to firmly tighten a screw, loosen a very tight screw or continue working when the battery... -
Page 17: Overload Protection
Depress the switch trigger to start 11. OvERLOaD the tool. Move the drill bit into the PROtECtIOn workpiece, applying only enough When overloaded, the motor comes pressure to keep the bit rotating. Do to a stop. Relieve the load on the not force or apply side pressure to machine immediately and allow elongate a hole. -
Page 18: Problem Solving
PROBLEM SOLvIng 1. wHy DOES tHE DRILL nOt tuRn On wHEn yOu PRESS tHE SwItCH? The forward/reverse rotation control, which is on top of the trigger, is positioned in the lock function. Unlock the forward/reverse rotation control by putting it into the required rotation position. -
Page 19: Environmental Protection
EnvIROnMEntaL PROtECtIOn Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. PLug REPLaCEMEnt (uK & IRELanD OnLy) If you need to replace the fitted plug then follow the instructions below. IMPORtant The wires in the mains lead are colored in accordance with the following code: Blue –... - Page 20 In 1945 JCB began producing construction equipment. Today, we build the world’s number one diggers, each one the product of our unswerving focus on innovation, quality and engineering. JCB power tools are built to give you the same world beating standards of performance. The same innovation, to always get the job done better, the same quality, to never let you down, the same engineering heritage and expertise that you can trust 100%.
-
Page 21: Ec Declaration Of Conformity
EC DECLaRatIOn Of COnfORMIty Positec Power tools Rg24 8aL, uK Declare that the product Description JCB Cordless Combi Drill Type (JCB-CD18Li) Function Drilling;tightening and loosening screws,nuts Complies with the following Directives, EC Machinery Directive 2006/42/EC EC Low Voltage Directive 2006/95/EC...
