Operator's Manual
MP8750 Multimedia Projector
Operator's Guide
Projecteur multimédia MP8750 Guide d'utilisation
MP8750 Multimedia-Projektor Bedienerhandbuch
Proyector de medios múltiples (multimedia) MP8750 Guía del operador
Guida dell'operatore del proiettore multimediale MP8750
Bruksanvisning för MP8750 Multimediaprojektor
3M MP8750 Multimediaprojector Gebruiksaanwijzing
Downloaded From projector-manual.com 3M Manuals
Advertisement
Table of Contents
Related Manuals for 3M MP8750
Summary of Contents for 3M MP8750

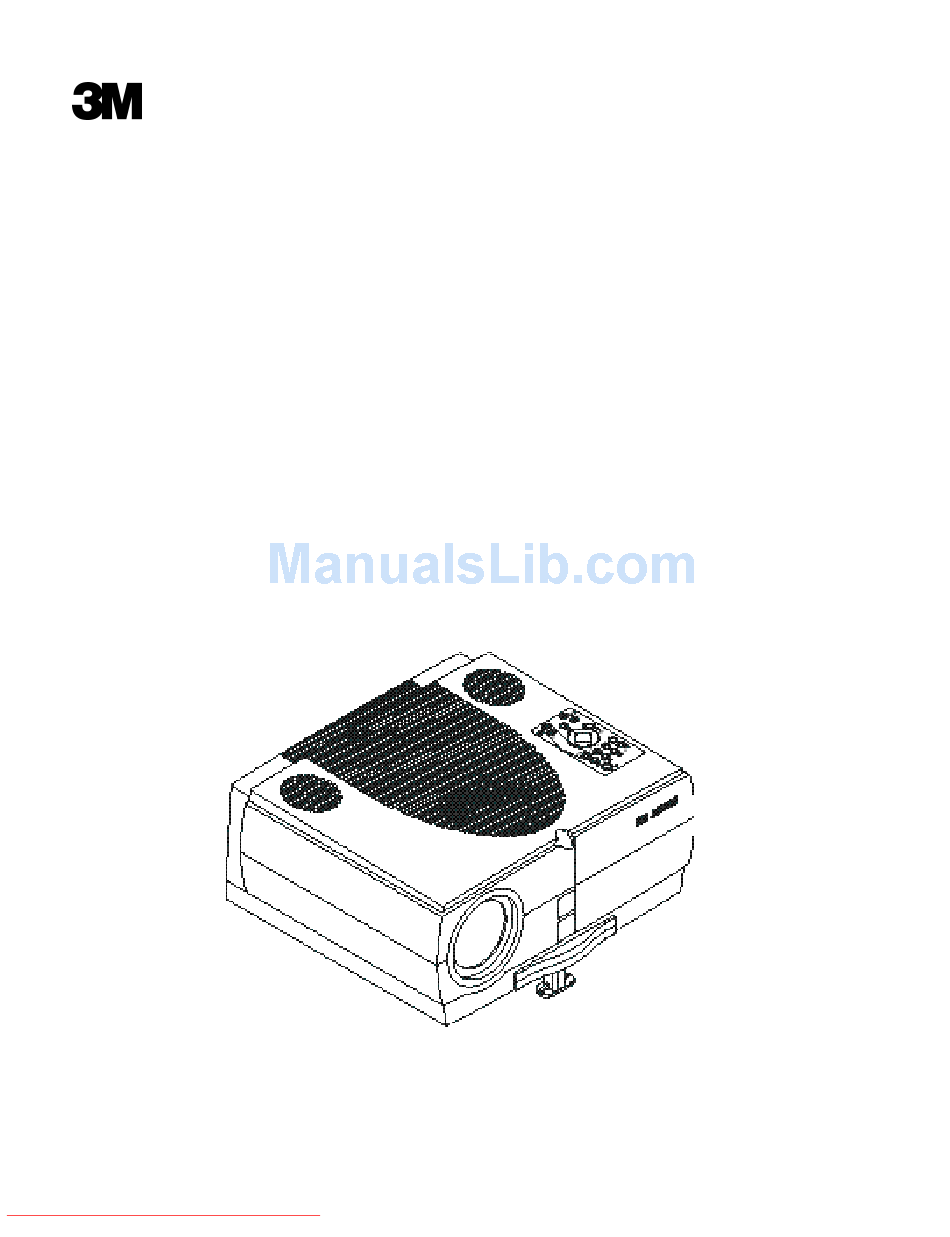

- Page 1 MP8750 Multimedia Projector Operator’s Guide Projecteur multimédia MP8750 Guide d’utilisation MP8750 Multimedia-Projektor Bedienerhandbuch Proyector de medios múltiples (multimedia) MP8750 Guía del operador Guida dell’operatore del proiettore multimediale MP8750 Bruksanvisning för MP8750 Multimediaprojektor 3M MP8750 Multimediaprojector Gebruiksaanwijzing Downloaded From projector-manual.com 3M Manuals...
-
Page 2: Table Of Contents
SECTION 8: PRODUCT SPECIFICATIONS ..................... 20 8-1. T ........................20 ECHNICAL PECIFICATIONS 8-2. A & S ....................... 21 CCESSORY PARE ARTS 8-3. H ............................21 OW TO RDER © 3M 1999 3M ™ Multimedia Projector MP8750 Downloaded From projector-manual.com 3M Manuals... -
Page 3: Safeguards
Before operating the machine, please read the entire manual thoroughly. The 3M Multimedia Projector MP8750 was designed, built, and tested for use indoors, using 3M lamps, 3M ceiling mount hardware and nominal local voltages. The use of other replacement lamps, outdoor operation, operation in environments containing heavy cigarette smoke or different voltages has not been tested and could damage the projector or peripheral equipment and/or create a potentially unsafe operating condition. -
Page 4: Product Safety Labels
PRODUCT SAFETY LABELS The following safety labels are used on or within the MP8750 projector to alert you to items or areas requiring your attention: Inside of projector gets very HOT! Allow internal parts to cool before replacing the lamp. -
Page 5: Warranty
LIMITED WARRANTY 3M warrants this product against any defects in material and workmanship, under normal use and storage, for a period of two years from date of purchase. Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, 3M’s only obligation and your exclusive remedy shall be replacement of... -
Page 6: Contents Of Shipping Box
Figure 1-1. Packing List 1-2. Keep Your Packing Materials Save the shipping box and packing materials in the event the MP8750 should require shipping to a 3M Service Center for repair. Use packing material to protect projector. 1-3. What’s Next? Take a few minutes to review Section 2 to familiarize yourself with the MP8750 machine characteristics and then turn to Section 3 to set up the projector. -
Page 7: Section 2: Production Description
Section 2: Production Description 2-1. Machine Characteristics The MP8750 integrates metal halide lamp and Digital Light Processor (DLP) technology. It accepts input from computer and/or video sources and projects a super bright image. The MP8750 Multimedia Projector is easy to set up and use. It offers the following features: •... -
Page 8: Section 3: Set Up/Connections
Figure 3-1. Input Connection Terminals 3-2. Operator Touch Panel Keypad The MP8750 operator touch panel keypad (Figure 3-2) is located on top of the projector. Refer to Section 4 for more detail on using the keypad. 1. Zoom: Adjust (increase/decrease) image size. -
Page 9: Mouse Connection
3-3. Mouse Connection The MP8750 has mouse emulation capability. Connect your computer mouse to the MP8750 and control computer mouse functions using the remote control. 1. Power down the computer and projector. 2. Remove the mouse cable connection from your computer mouse port. - Page 10 Cable Connection, continued MAC cable optional Audio cable optional Figure 3-4. Cable Connections © 3M 1999 3M ™ Multimedia Projector MP8750 Downloaded From projector-manual.com 3M Manuals...
-
Page 11: Image Size (Projector-To-Screen Distance)
Use the Picture menu/Height option to shift (upward) the projected image. The center of the projected image can be shifted a maximum of 12 degrees without incurring any keystoning. Figure 3.5. 12 Degree Maximum Shift Figure 3.5. Maximum Image Shift 3M ™ Multimedia Projector MP8750 © 3M 1999 Downloaded From projector-manual.com 3M Manuals... -
Page 12: Section 4: Operating Instructions
4-1. Power Up Projector Read the Important Safeguards before operating the MP8750 projector. After all cable connections have been completed, the projector can be powered up. During operation, keep the exhaust and intake air vents clear of obstructions to allow proper cooling. -
Page 13: Standby Mode
To exit a sub-menu, press the Disc Pad to the left. To completely exit the menu system and return to the projected image, press the Menu button. 3M ™ Multimedia Projector MP8750 © 3M 1999 Downloaded From projector-manual.com 3M Manuals... -
Page 14: Menu Adjustments/Settings
(Predefined modes / User Mode 1…3) Resolution Select pixel resolution (640x350 / (drop down window) 640x400 / 720x400 / 640x480 / 800x600 / 832x624 / 1024x768 / 1280x1024) © 3M 1999 3M ™ Multimedia Projector MP8750 Downloaded From projector-manual.com 3M Manuals... - Page 15 Reset all menu window position to Position default Help Select Help window mode 3 seconds (drop down window) (immediate / 1, 3, or 5 seconds / off) 3M ™ Multimedia Projector MP8750 © 3M 1999 Downloaded From projector-manual.com 3M Manuals...
- Page 16 Lamp life hours (Green: lamp good / Firmware: xxx-x.xx red: lamp needs replacement) VESA 1024 x 768 75 Hz Closes the Info display by pressing the Enter button Lamp © 3M 1999 3M ™ Multimedia Projector MP8750 Downloaded From projector-manual.com 3M Manuals...
-
Page 17: Section 5: Remote Control
ü ü Note The buttons marked with an asterisk (*) also appear on the Pointer Freeze Mouse Mute On Magnify Reveal operator touch panel keyboard. Image Image Image 3M ™ Multimedia Projector MP8750 © 3M 1999 Downloaded From projector-manual.com 3M Manuals... -
Page 18: Battery Replacement
3. Remove old batteries. 4. Install new batteries (3). Make sure the polarity (+/-) on each battery matches the decal. 5. Replace battery compartment door. Figure 5-1. Replacing Batteries © 3M 1999 3M ™ Multimedia Projector MP8750 Downloaded From projector-manual.com 3M Manuals... -
Page 19: Maintenance
5. Vacuum (5) the air filter to remove the dust and dirt. 6. Insert the air filter in the back panel. 7. Insert the back panel and secure with screws (2). Figure 6-1. Removing Air Filter Door 3M ™ Multimedia Projector MP8750 © 3M 1999 Downloaded From projector-manual.com 3M Manuals... -
Page 20: Replacing Projection Lamp
8. Close the lamp door (4) tightly until the lock tab (2) slides into the locked position. 9. Go to the Advanced Setup menu and reset the lamp life display to zero. Figure 6-2. Changing the lamp cartridge © 3M 1999 3M ™ Multimedia Projector MP8750 Downloaded From projector-manual.com 3M Manuals... -
Page 21: Lamp Life Indicator
For best performance, keep your projector free of excess dust and surface dirt. Use a soft cloth to remove dust from the projector housing. Use 3M ™ Overhead Cleaner 676 to remove surface dirt and smudges from the projection lens. -
Page 22: Section 7: Troubleshooting
7-2. Service Information For product information, product assistance, service information, or to order accessories or spare parts, please call: In U.S. or Canada: 1-800-328-1371 In other locations, contact your local 3M Sales office. © 3M 1999 3M ™ Multimedia Projector MP8750... -
Page 23: Section 8: Product Specifications
AC 100-240 V ±50/60 Hz Power Consumption 450 W Regulatory Approvals FCC Part 15, Class A, CE, UL Warranty Two years limited warranty on parts and labor 3M ™ Multimedia Projector MP8750 © 3M 1999 Downloaded From projector-manual.com 3M Manuals... -
Page 24: Accessory & Spare Parts List
MP8750 remote mouse and a PC mouse (only works with Microsoft serial mouse). 8-3. How to Order Please order these parts through your dealer, or contact 3M Customer Service at the following number: • In U.S. or Canada: 1–800–328–1371 •... - Page 25 (Intentionally Blank) 3M ™ Multimedia Projector MP8750 © 3M 1999 Downloaded From projector-manual.com 3M Manuals...
- Page 26 P.O. Box 5757 Apartado Postal 14-139 including 10% post-consumer wastepaper 6801 River Place Blvd. London, Ontario, Canada Mexico, D.F. 07070 9500 Cerge Pontoife Cedex © 3M 1999 78-6970-8976-7 Rev. A Austin, TX 78726-9000 N6A 4T1 Mexico France Downloaded From projector-manual.com 3M Manuals...
