Summary of Contents for Samson PowerStrip PS10

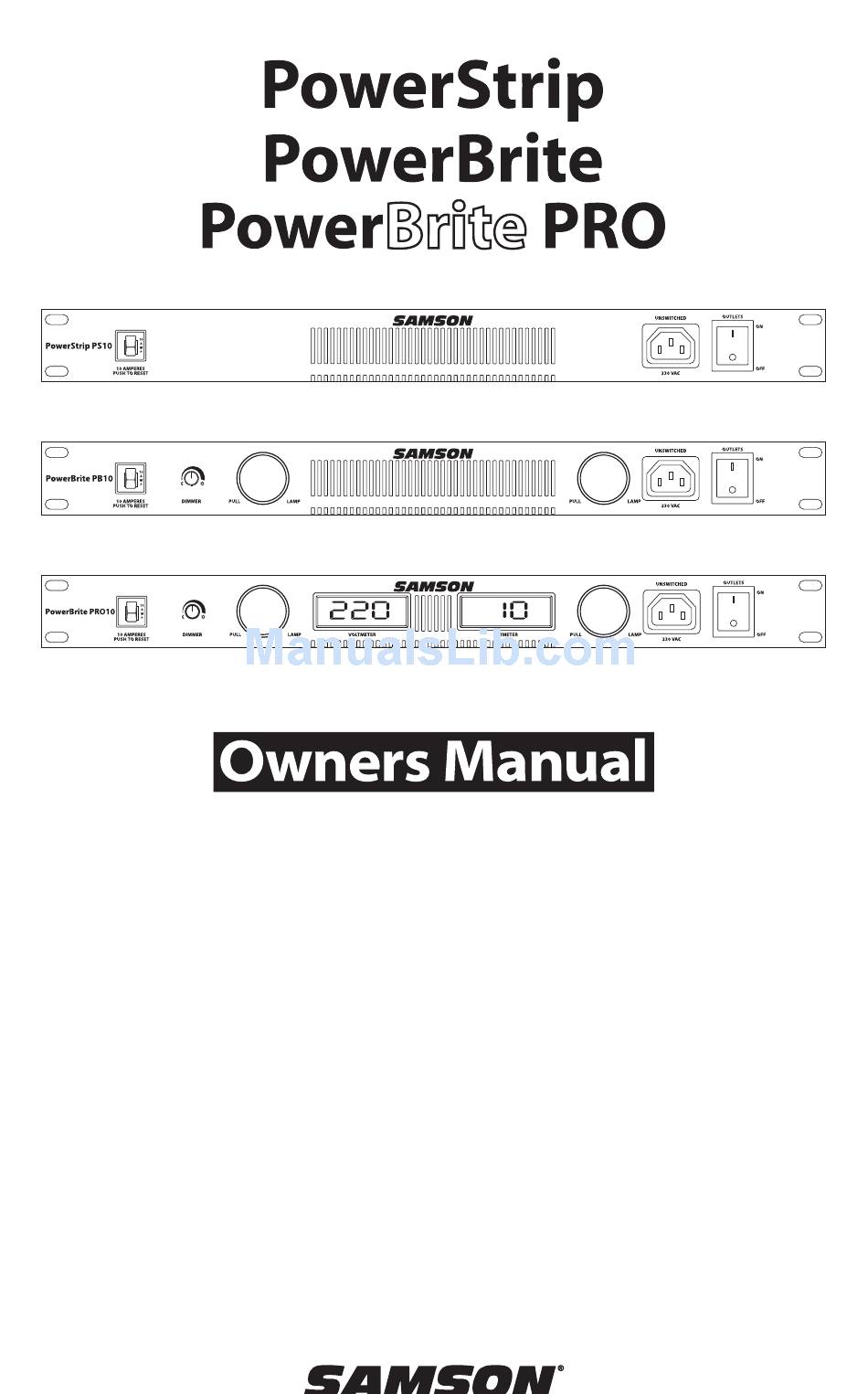

  • Page 1 PS10 PB10 PB10PRO RACK-MOUNT POWER DISTRIBUTION...
  • Page 2 Caution: To reduce the hazard of electrical shock, do not remove cover or back. No user serviceable parts inside. Please refer all servic- ing to qualified personnel. WARNING: To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture. The lightning flash with an arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of un-insulated "dangerous voltage"...

  • Page 3: Table Of Contents

    Specifications ............12 Copyright 2007, Samson Technologies Corp.

  • Page 4: Introduction

    Introduction Congratulations on purchasing your Samson PowerStrip, PowerBrite, or PowerBrite Pro! This manual covers three products: the PowerStrip PS10; the PowerBrite PB10; and the PowerBrite PB10Pro. All three of these single-space rack units provide multiple outlets for reliable power distribution with 3-point surge and spike protection, plus RF (Radio Frequency) filtering.

  • Page 5: Powerbrite Features

    PowerStrip & PowerBrite Features The Samson PowerStrip PS10, PowerBrite PB10, and PowerBrite PB10Pro all utilize state-of-the-art technology in power distribution and are engineered to the finest detail. Here are some of their main features: • Eight switched, rear panel, IEC outlets that allow you to power an entire rack’s worth of gear from one source.

  • Page 6: Ps10 Guided Tour - Front Panel

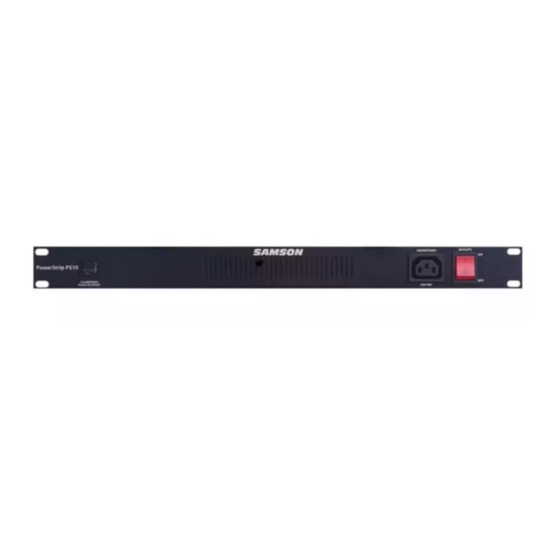

    PS10 Guided Tour - Front Panel PowerStrip PS10 Front Panel 1: Circuit breaker- This circuit breaker will trip whenever the total load on the PS10 (all rear panel switched outlets plus the front panel unswitched convenience outlet) exceeds 10 amps. To reset it, unplug one or more devices so as to reduce the load and gently press the circuit breaker in until you hear it click.

  • Page 7: Ps10 Guided Tour - Rear Panel

    PS10 Guided Tour - Rear Panel PowerStrip PS10 Rear Panel 1. Power cord - Heavy Duty, 14 gauge mains power cord. 2: Switched AC outlets - Connect external equipment to these standard IECoutlets, which are turned on and off from the front panel Outlets switch (see #2 on the previous page).

  • Page 8: Pb10 Guided Tour - Front Panel

    PB10 Guided Tour - Front Panel PowerBrite PB10 Front Panel 1: Circuit breaker- This circuit breaker will trip whenever the total load on the PB10 (all rear panel switched outlets plus the front panel unswitched convenience outlet) exceeds 10 amps. To reset it, unplug one or more devices so as to reduce the load and gently press the circuit breaker in until you hear it click.

  • Page 9: Pb10 Guided Tour - Rear Panel

    PB10 Guided Tour - Rear Panel PowerBrite PB10 Rear Panel 1: Power Cord - Heavy Duty, 14 gauge mains power cord. 2: USB Socket - USB type socket for connecting the included USB gooseneck LED lamp. 3: Switched AC outlets - Connect external equipment to these standard 3-pin AC outlets, which are turned on and off from the front panel Outlets switch (see #6 on the previous page).

  • Page 10: Pb10Pro Guided Tour - Front Panel

    PB10PRO Guided Tour - Front Panel PowerBrite PB10Pro Front Panel 1: Circuit breaker- This circuit breaker will trip whenever the total load on the PB10Pro (all rear panel switched outlets plus the front-panel unswitched convenience outlet) exceeds 10 amps. To reset it, unplug one or more devices so as to reduce the load and gently press the circuit breaker in until you hear it click.

  • Page 11: Pb10Pro Guided Tour - Rear Panel

    PB10PRO Guided Tour - Rear Panel PowerBrite PB10Pro Rear Panel 1: Power Cord - Heavy Duty, 14 gauge mains power cord. 2: USB Socket - USB type socket for connecting the included USB gooseneck LED lamp. 3: Switched AC outlets - Connect external equipment to these standard 3-pin AC outlets, which are turned on and off from the front panel Outlets switch (see #8 on the previous page).

  • Page 12: Setting Up And Using Your Powerstrip Or Powerbrite

    Setting Up and Using Your PowerStrip or PowerBrite Setting up your PS10, PB10, or PB10Pro is a simple procedure which takes only a few minutes: Remove all packing materials (save them in case of need for future service) and install the unit in a standard 19” rack. We recommend that the PB10 and PB10Pro be placed in the top slot so that its slide-out LED lamps can be used to illuminate the entire rack of equipment below.

  • Page 13: Appendix A: Led Or Incandescent

    Appendix A: LED Or Incandescent? There are numerous advantages to using the kind of LED (light emitting diode) lighting provided by the PowerBrite PB10 and PowerBrite PB10Pro over the incandescent lighting provided by competing rack light products. Here are the main points to consider when making your purchase: •...

  • Page 14: Specifications

    Specifications Electrical: Number of Outlets PS10, PB10, PB10Pro 8 switched, 1 unswitched Max. Current 10 Amp (circuit breaker protected) Input Voltage (RMS) 0 to 130 Vac continuous Spike Protection Mode Hot to Neutral, Hot to Ground, and Neutral to Ground Max.
