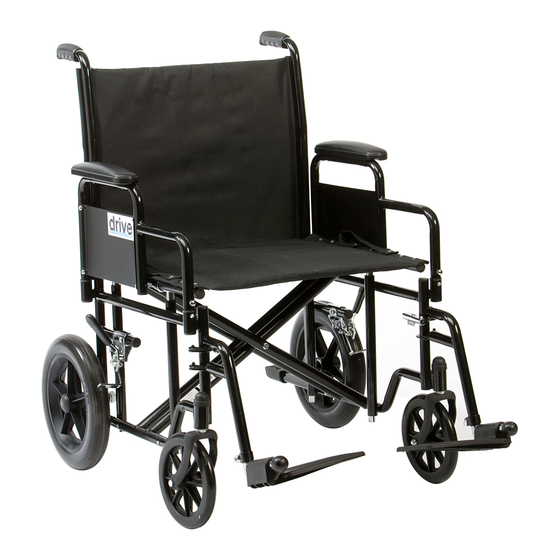

Bariatric Transport Chair
REF: BTR22BLK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BTR22BLK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Drive BTR22BLK

Summary of Contents for Drive BTR22BLK

  • Page 1 Bariatric Transport Chair REF: BTR22BLK...

  • Page 2: Table Of Contents

    Contents Contents 7. Arm Rest Removal 2. Introduction 8. Quick Release Wheels 3. Parts Description 9. Using the Stepper Tube 4. Brake Operation 10. Disassembly and Folding 5. Leg Rest Adjustment 11. Maintenance 6. Leg Rest Removal 12. Warranty Introduction The Bariatric Transport chair is designed for a single occupant up to 32 stone (200kg) and is suitable for in indoor and most outdoor environments.

  • Page 3: Brake Operation

    Brake Operation Parking Brakes To apply the parking brakes, push the handle on the brake unit until locked in place (see diagram). To release the brake, push the handle in the opposite direction. Note: the model of brake on the wheelchair may be visually different from that shown.

  • Page 4: Leg Rest Removal

    Leg Rest Removal To remove the leg rest, press the chrome lever on the leg rest whilst swinging the leg rest out (as shown left). This will now allow the leg rest to be lifted up and removed. To attach the leg rest, place the leg rest on the two receiver posts on the wheelchair frame.
  • Page 5 Operation and Propulsion  The Bariatric Transport Chair has transit wheels which can only be propelled by an attendant using the push handles.  Apply the parking brakes when stationary. Refer to the section on parking brakes for operation instructions. ...

  • Page 6: Using The Stepper Tube

    Using the Stepper Tube Use the stepper tube to raise the front castors (when mounting a kerb for example). To use, push down on the stepper tube with a foot. Do not raise the front castors by pushing down on the push handles as this could result in damage to the wheelchair.

  • Page 7: Maintenance

    Maintenance and Tyre Pressure The Bariatric Transport Chair is installed with puncture proof solid tyres that will not require inflation. Proper care and maintenance is important in order to keep your wheelchair in good working order. Be sure that your chair is in proper working order at all times.

  • Page 8: Warranty

    Warranty Your Drive branded product is warranted to be free of defects in materials and workmanship for one year from date of purchase. This device was built to exacting standards and carefully inspected prior to shipment. This warranty is an expression of our confidence in the materials and workmanship of our products and our assurance to the customer.
