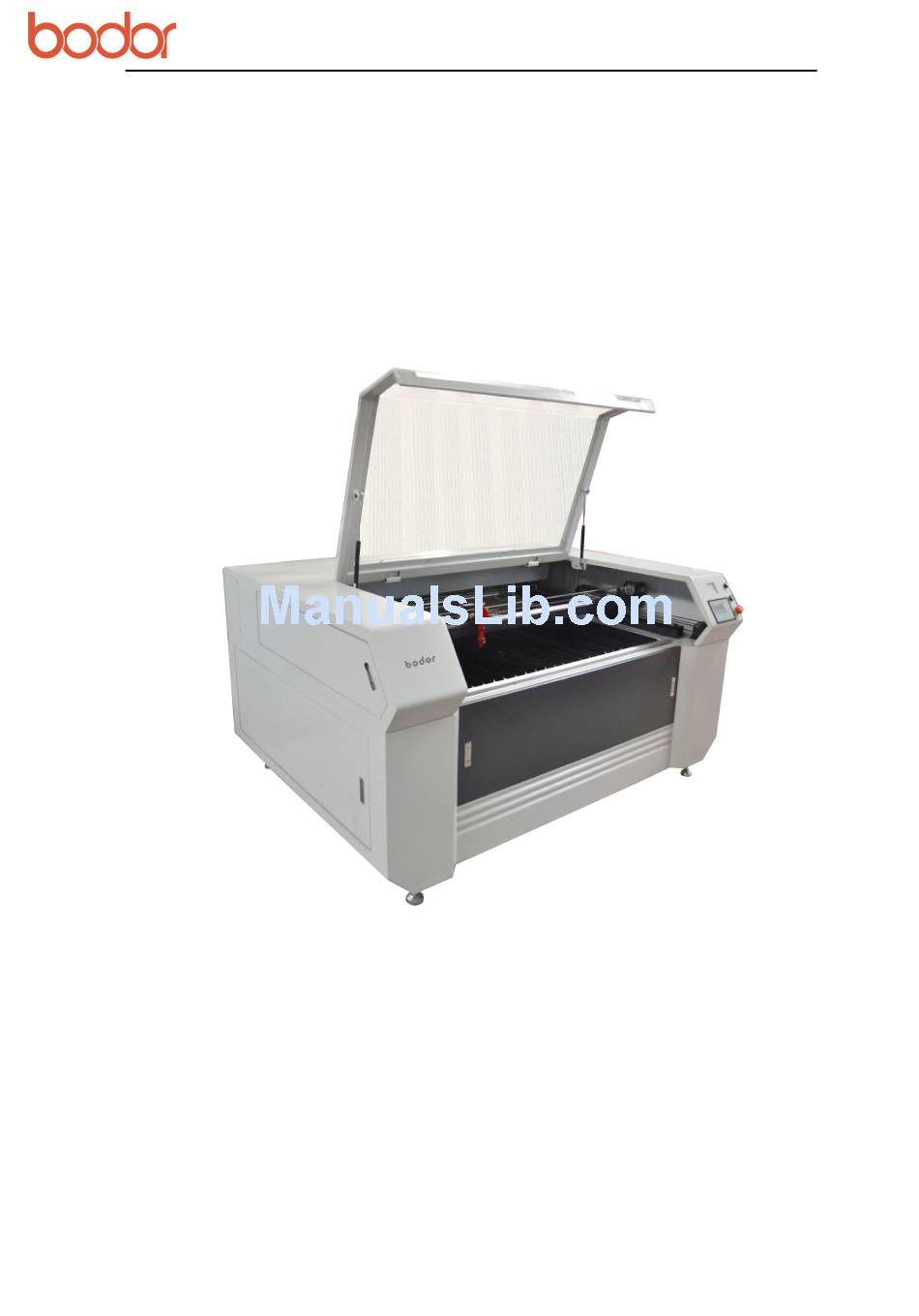

User Manual for BCL-X Series Laser Machine
Laser Engraving and Cutting Machine
User Manual for BCL-X
Series
Jinan Bodor CNC Machine Co., Ltd
Adress: Huaya Industrial Park, Kanghong Road, High-Tech Zone, Jinan,
Shandong, China
ZIP: 250101
TEL: 0086-531-88690020
FAX: 0086-531-88690199
After-sales service:0086-531-88270377
Website:www.bodorcnc.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BCL-X series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bodor BCL-X series

  • Page 1 User Manual for BCL-X Series Laser Machine Laser Engraving and Cutting Machine User Manual for BCL-X Series Jinan Bodor CNC Machine Co., Ltd Adress: Huaya Industrial Park, Kanghong Road, High-Tech Zone, Jinan, Shandong, China ZIP: 250101 TEL: 0086-531-88690020 FAX: 0086-531-88690199 After-sales service:0086-531-88270377...
  • Page 2: Table Of Contents

    User Manual for BCL-X Series Laser Machine Brief Introduction of Laser Engraving Cutting Machine............ 4 I Safety Knowledge..................... 4 1.1 Basic Information....................4 1.2 Optical Security..................... 4 1.3 Electricity Security..................4 II Equipment Brief Introduction................5 2.1 Instruction of Machine Model&Nameplate...........5 1.
  • Page 3 User Manual for BCL-X Series Laser Machine Preface Thank you very much for your trust and purchasing our Products. We can provide perfect after-sale service and solutions. Please keep this manual and other attachments carefully, in order to guarantee the equipments safe running.
  • Page 4: I Safety Knowledge

    User Manual for BCL-X Series Laser Machine Brief Introduction of Laser Engraving Cutting Machine I Safety Knowledge 1.1 Basic Information  Make sure that the operator is being trained before operating the machine.  Operator must be aside the machine during machine working. Never leave the machine alone in case to cause unnecessary loss.
  • Page 5: Ii Equipment Brief Introduction

    User Manual for BCL-X Series Laser Machine II Equipment Brief Introduction 2.1 Instruction of Machine Model&Nameplate 1.Model Instruction ※※※一※※※※一※※ Machine Serial Machine Working Area: Model Introduction: BCL: 0503: 500mm×300mm M: Mini Machine Serial Bodor Cutting 0605:600mm ×500mm X: Standard Machine Serial Laser 1006:1000mm×600mm...
  • Page 6: Nameplate Instruction

    User Manual for BCL-X Series Laser Machine 2.Nameplate Instruction This serial equipment is vertically installed in the middle of the transmission shaft, which can make speedy and stable cutting and engraving.The nameplate of machine is in the right-back side. You can read the relevant information on it. It is not accepted for anybody to change or remove this nameplate.
  • Page 7 User Manual for BCL-X Series Laser Machine 2.2.2 Machine Shell Right/Left Shield; Side Door; Up Cover; Transom(X Axis); Carling (Y Axis); Working Table. Transom Carling Working Front Door Side...
  • Page 8 User Manual for BCL-X Series Laser Machine Name Back Smoke Entrance Universal Wheel Foot USB Flash Interface Computer Interface 2.2.3 Drive System: Y Axis:...
  • Page 9 User Manual for BCL-X Series Laser Machine Couple Motor belt Girdle Transmissio 48 tooth Synchronizin g Wheel Guide Rail 24 tooth Synchronizing Wheel X Axis: Endless-belt 48 tooth Synchronizing Wheel Guide Rail Pinion Stand 24 tooth Belt Synchronizing Wheel...
  • Page 10 User Manual for BCL-X Series Laser Machine 2.2.4 Optical System Laser Tube Socket Laser Tube Attention: The laser tube is fragile. It should be taken slightly. Water inlet of the laser tube should be in the lower place, and water outlet be in the higher place(reci laser tube), so there won't be any bubble.
  • Page 11 User Manual for BCL-X Series Laser Machine High-voltage insulation protective jacket Water flow direction Water-in High-tension cable Attention: The working-voltage of high-tension cable can be higher than 100,000V.There can be strong static electricity even when the power was cut-off in short time. Please do not touch the cable directly.
  • Page 12 User Manual for BCL-X Series Laser Machine 2.2.5 Control System There are some difference in the control system for different models.Specific product is subject to real object. Bodor's control system is as below: Leetro control system; Ruida control system; Bodor control system.
  • Page 13 User Manual for BCL-X Series Laser Machine 48V Switch power X Axis Motor Drive Filter Y Axis Motor Drive DC24V and 5V Power Z Axis Motor Drive Relay System card board Ammeter Laser Emergency Power Switch Potentiometer Start Button 2.2.6 Spare parts...
  • Page 14 User Manual for BCL-X Series Laser Machine 2.2.7 Tool Box Power Certificate Data Approval Double-sided Adhesive Tape Limit Swith High-tension Adhesive Tape Water/Air Tube U Disk Fork Hexwrenc Wrench Dimming Focus Block Block Shove Attention: There can be some difference in toolbox for different models. Specific parts are subject to real objects.
  • Page 15: Power Strip

    User Manual for BCL-X Series Laser Machine 2.3 Power Strip Outlet Connecting Power Air Switch Inlet Connecting Water Chiller Interface Fuse Water Chiller Ground Air-tube Line Interface Water Chiller Abalone Signal Line Socket...
  • Page 16: Iii Equipment Installation

    User Manual for BCL-X Series Laser Machine III Equipment Installation 3.1 Installation Preparation 3.1.1 Preparation for workplace Make sure the working area is dry enough. And any electromagnetism, strong power, pollution is forbidden. Temperature of working environment should be 10℃ to 38℃, humidity should be 10- 90%.
  • Page 17  Keep the laser tube outlet clear in case of front mirror breakdown. The broken damage caused by improper operation, will not be in Bodor's range of protection.  Fix the laser tube with proper strength. Larger strength will broke the laser tube.
  • Page 18 User Manual for BCL-X Series Laser Machine 3.2.3 Installation of Water Chiller ▲ First take down the cover of water inlet on the top of the chiller. Pour purified water or distilled water into the water tank until it is full.
  • Page 19 User Manual for BCL-X Series Laser Machine Screw tightly with spanner Installation of Air Pump Insert the silicone tube into the air-inlet by an air tube. Then connect the power and make the smooth air-out of the air entry in the leaser head as shown in the below picture.
  • Page 20: Grounding Connection

    4 Ω Attention: Nonstandard grounding may lead to high failure rate and other security accidents. All these are not in the range of Bodor's protection. IV Test Equipment 4.1 Inspect before powering on...
  • Page 21: Adjust Light Path

    User Manual for BCL-X Series Laser Machine Then pull the laser head to check whether it can move smoothly and move the crossbeam front and back to confirm whether it can be noise free.Power on when everything is ok. 4.1.1 Boot Process Open: Air-break switch "ON"--->...
  • Page 22 User Manual for BCL-X Series Laser Machine 4.2.2 Adjust light path The laser path is debugged OK before shipment. While there may be deviation of laser path during long time transportation. You need to debug the laser path if it happens.
  • Page 23 User Manual for BCL-X Series Laser Machine Laser shoot from laser emitter goes through first, second and third reflection mirror successively and reaches to work table through focus lens. Its working principle is to get the best engraving and cutting effects after several reflections and focus.
  • Page 24 User Manual for BCL-X Series Laser Machine Optical system of bed is in the inside of gantry. The adjusting of second reflection mirror is easier. Just adjust the first reflection mirror. No.1 Screw No.2 Screw No.3 Screw Testing method when laser is reflected from first...
  • Page 25 User Manual for BCL-X Series Laser Machine 3.Adjust third reflection mirror The best effect is that the facula reflected by the second reflection mirror is upper to the center of the third reflection mirror. Method:  Paste acrylic on the inlet of laser head. Move laser head to the leftest of the beam by left-right direction button on the panel.
  • Page 26 User Manual for BCL-X Series Laser Machine Accordingly, from second reflection mirror to third reflection mirror, laser should fall on the same upper side of the center slightly. Upper—adjust No.21 screw; lower—adjust No.22,23 screw; Left—adjust No.22 screw; Right—adjust No.21,23 screw.
  • Page 27 User Manual for BCL-X Series Laser Machine No.31 screw No.32 screw No.33 screw put a double-sided adhesive tape on the outlet of the laser head, take left hand side as left, right hand, right;laser tube side, front and people where...
  • Page 28: V Rotation Axis Processing

    User Manual for BCL-X Series Laser Machine Front Left Right Back Picture A Focus test is as shown in picture A: First paste double-sided adhesive tape on outlet, press pulse button and check if the facula is on the center of outlet. If not, please adjust 3 screws of laser head.
  • Page 29 User Manual for BCL-X Series Laser Machine 1.1 Rotation axis connect Fix rotation axis Draw out aviation connector of the drive.
  • Page 30 User Manual for BCL-X Series Laser Machine Connect the aviation connector of rotation axis with the drive’s aviation connector 1.2 Reset on power Power on the machine, then touch the limit switch of Y axis by metal manually to assist...
  • Page 31 User Manual for BCL-X Series Laser Machine 2. Software operation 2.1 Software set A. Open the software, click ‘File’ ---‘Vendor settings’, enter password ‘rd8888’ and log B. Press ‘Read’, then close dialog box.
  • Page 32 User Manual for BCL-X Series Laser Machine C. Choose “User” on the right side of software, click ‘Read’ and set parameters as shown in the below picture. After changing parameters, click ‘Read’. Attention: Record the original parameters before changing them. Reset them when you...
  • Page 33 User Manual for BCL-X Series Laser Machine 2.2 Pulse calculation ‘Circle pulse’ is changing along with the diameter changing of rotary products. Calculation formula: Realistic pulse=(theoretical pulse*theoretical length)/ realistic length Example: engrave 20mm line on the bottle bottom of 65mm diameter.
  • Page 34 User Manual for BCL-X Series Laser Machine (3) Paste a double-sided adhesive tape along the surface of working object. (4) Place the rotation axis in right position, adjust the position of the bottle. Pull the beam and make the laser head upon the bottle.
  • Page 35 User Manual for BCL-X Series Laser Machine (5) Start to work after adjusting focus (6) Measure the length of cutting line Measuring length is 16.5mm and is not identical with 20mm on software. So Circle Pulse(10000) is not correct. (7) Change Circle Pulse According to the calculation formula---{10000*20}/16.5=12121, you can get the actual...
  • Page 36: Vi Simple Operation Instruction

    User Manual for BCL-X Series Laser Machine Input the calculated pulse and the object diameter. 3. Attention When you don’t use rotation axis, please set the parameters in “User” to original parameters and remove tick before Tips: The placement direction of rotation axis can affect cutting effects. A wrong direction placement can result in a reverse effect.
  • Page 37 User Manual for BCL-X Series Laser Machine B. Click【Install】button. Installation interface shows up after unzip and copy operation. C. Click . The following dialog box shows up. D. After confirming USB data line is connected well, click “OK”. The following dialog box shows up.
  • Page 38: Data Line Using Operation

    User Manual for BCL-X Series Laser Machine E. After installing USB drive, click to install software. After that, the following dialog box will show up and indicate that the software has been installed successfully. F.After finishing all installations, click【 】to end up installation process.
  • Page 39 User Manual for BCL-X Series Laser Machine A. Click “File”, then open“Vendor settings”. B. Input password “rd8888”. C.After entering interface, click“read”.
  • Page 40 User Manual for BCL-X Series Laser Machine D. Click “user” as shown in the following picture. Click“read”. Attention: if changing main board or parameters, please first go through “ read” . Then find parameters of CD or U disk and go through “open” and“write”.
  • Page 41 User Manual for BCL-X Series Laser Machine E. In the U disk or CD along with the machine, find the file folder named by machine serial number. File folder named machine serial number Click it F. After that, “CHANGJIA.RDVSet”file shows up.
  • Page 42 User Manual for BCL-X Series Laser Machine Click it G.After opening it,“Import param success”shows up. H. Click “用户” as shown in the following picture. According to the supplier’s setting mode, follow the sequence of “read”—“open— “write”to import user parameters.
  • Page 43 User Manual for BCL-X Series Laser Machine I. After importing parameters of the supplier and user, close the software. Reopen the software, you can use it normally. 6.2.2 Make simple pictures&Set picture layers A.In the software, choose “Rectangle”and draw a simple square. Then modify the size.
  • Page 44 User Manual for BCL-X Series Laser Machine Modify size B. Click “script”. Click once in the drawing zone. In the dialog box, edit text and click “OK”button.
  • Page 45 User Manual for BCL-X Series Laser Machine C. After choosing text by frame, select picture layers. Layer...
  • Page 46 User Manual for BCL-X Series Laser Machine 6.2.3 Set working mode According to cutting material, set power and speed. (Cutting parameter sheet can be for reference) 6.2.4 Download file Click “DOWNLOAD”. Name the file. Click “OK”. Click it...
  • Page 47 User Manual for BCL-X Series Laser Machine 6.2.5 Machine operation 1.On the machine, find downloaded file by pressing “file” button as shown in the picture. 2.After finding named file, press “Enter”button. 3.put cutting material well and adjust focal length well.
  • Page 48 User Manual for BCL-X Series Laser Machine 4.find the right place ,press “origin”button to frame cutting area. Then press “start”button. Then you can see the machine is cutting material as shown in below picture. Position button Start button...
  • Page 49: U Disk Operation

    User Manual for BCL-X Series Laser Machine 6.3 U disk operation Same operations with data line will not be listed again. 1.After setting power, speed and cutting method, click “Save as offline file” and shows dialog box. Name the name of the file. Then click and save “USB drive”.
  • Page 50 User Manual for BCL-X Series Laser Machine 4.Choose“读 U 盘文件”and press“确认”button. 5.After choosing the file, then choose“copy to memery”and press“OK”button. Below picture will show. Attention: if there is a file in the machine which has the same name as the file in U...
  • Page 51 User Manual for BCL-X Series Laser Machine disk,the copy operation will not be successful. It will be ok if you rename the file in the machine. 6.In the machine, find the copied file. You can go through working operation.
  • Page 52: Vii Equipment's Maintenance

    User Manual for BCL-X Series Laser Machine VII Equipment's maintenance 7.1 Daily maintenance Equipment's working environment could not be too severe. If temperature is higher than 30℃,lower than 18℃,and if there is too much dust, with severe air pollution, then the machine could be badly damaged, failure rate goes up steadily.
  • Page 53: Guide Rail's Clean

    User Manual for BCL-X Series Laser Machine on the left side of transom. The third one is on the top side of laser head, lens is inside of lens cone). Laser beam is transmitted through these reflectors and lens. It's easily for mirrors to smear dust and other dirt, which could result in laser's loss or mirrors' damage.
  • Page 54: Ix Common Breakdown Maintenance

    User Manual for BCL-X Series Laser Machine cold area should guarantee water should not be freeze, especially when machine stops working, cooling water must not stay inside in laser tube in case there is any frozen cooling water to cause explosion.(Special attention: For users who use AC, cooling water must be connected with ground) 8.2 The two supporting points should be on the 1/4 part of laser tube, and water-flow...
  • Page 55 User Manual for BCL-X Series Laser Machine 3.Water recycling is normal, then check if laser power Laser power is bad and needs to guiding light is bright or not, fan rotates or not, if not be changed Laser power or laser tube has 4.Press "laser", if there is no light...
  • Page 56: Appendix 1

    Appendix 1 《After-sale warranty of Laser Engraving Cutting Machine》 First of all, thank you very much for purchasing Bodor products. In order to guarantee the smooth processing of after-sales service, we will make the following announcements: General principles 1.
  • Page 57 If the failure cause by the quality of parts after testing(non human and use environment factors etc.), it will be repaired or replaced free of charge, and Bodor company will bear the return shipping cost.
  • Page 58 The repaired parts should be returned to our factory. After we test and repair the part, we will give it back to the buyer. ( if the buyer is in arrears of spare parts, Bodor company will cancel the warranty terms of the machine).
  • Page 59: Appendix 2

    User Manual for BCL-X Series Laser Machine Appendix 2 Cutting and engraving parameters of laser tubes Cutting parameter of 80W laser tube Turning Materia Thicknes Working(Ma Speed (Min) Application Remark x) Power% Power% 10-20 40-70 35-70 5-10 70-80 65-80 acrylic 0.5mm lower...
  • Page 60 User Manual for BCL-X Series Laser Machine Cutting parameter of 90W laser tube Material(mm) Speed(mm/s) Min Power(%) Max Power(%) acrylic 10~20 40~68 40~63 65-75 60~70 60~75 55~70 10mm 45~75 40~70 12mm 65~75 60~70 15mm 60~75 55~70 cloth or paper leather...
  • Page 61 User Manual for BCL-X Series Laser Machine 5~15 40~63 40~63 40~63 40~60 10mm 45~65 45~65 12mm 38~58 35~58 15mm 40~65 40~60 18mm 20mm 0.5~1 75~80 cloth leather wood or paper MDF scanning step artificial marble 300-600 18-65 0.03-0.1 scanning step...
  • Page 62: Postscript

    Attention: above parameters are only for reference, not actual working parameters. Postscript Bodor reserves the right to explain the terms of the manual. We will try our best to guarantee the accuracy. Due to the limitations of editors, there may be improper mistakes or omissions.
  • Page 63 Futhermore, if any equipment is damaged or there are any losses in either economic or reputation to our company due to the following situation, we, Bodor company, reserve the right to investigate any legal liability. 1) Using the equipment in an environment that it was not designed for..
  • Page 64 4. Abroad accommodation(arranged and paid by the buyer) (B).Overseas training/maintenance processes: 1. Bodor company will calculate the fees of item 1 and item 2 above, and then inform the buyer. After the buyer pays the fees, Bodor company will arrange for the technician to apply for a visa.
