Summary of Contents for David White LL360P

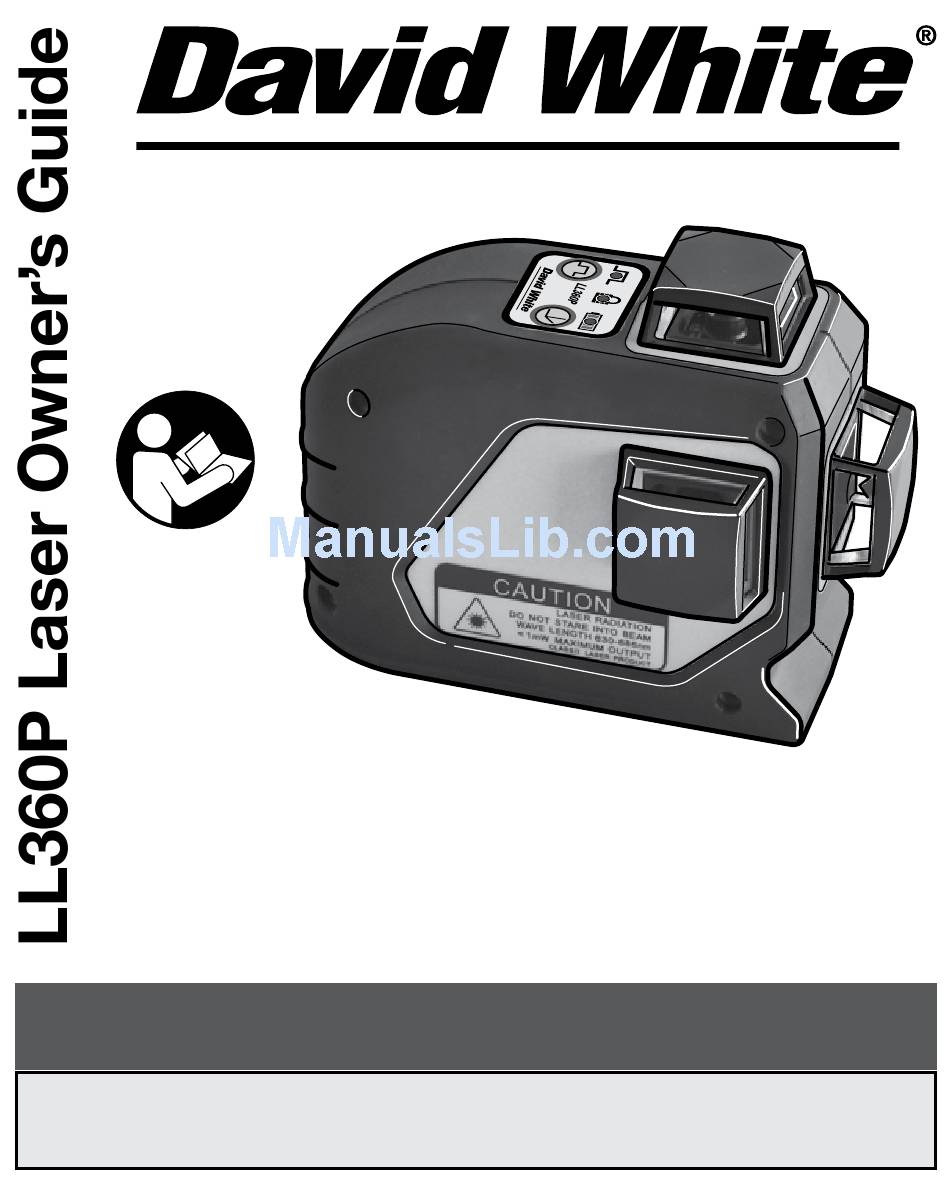

- Page 1 LL360P FOR CUSTOMER SERVICE, PARTS AND REPAIR CALL (765) 581-4097 www.davidwhite.us.com IMPORTANT: IMPORTANT: IMPORTANTE: Read Before Using Lire avant usage Leer antes de usar...
- Page 2 David White is not responsible for errors caused by instruments that are out of adjustment. Contact your distributor, dealer or David White for information on the nearest facility to check if your instrument is properly adjusted.
- Page 3 LL360P...
-
Page 4: General Safety Rules
GENERAL SAFETy RULES Read all instructions. Failure to follow all instructions listed WARNING below may result in hazardous radiation exposure, electric shock, fire and/or serious injury. If glass light house breaks when dropped, contact customer service immediately. Broken glass can cause laceration hazard and unit to lose its IP rating. -
Page 5: Electrical Safety
Work area safety DO NOT dispose of batteries in fire. Keep batteries out of reach of Keep work area clean and well children. lit. Cluttered or dark areas invite accidents. Personal safety DO NOT operate the laser tool around Stay alert, watch what you are children or allow children to operate doing and use common sense the laser tool. -
Page 6: Intended Use
or transits to view the laser beam. Do not use the tool if the switch does Serious eye injury could result. not turn it on and off. Any tool that cannot be controlled with the switch DO NOT stare directly at the laser is dangerous and must be repaired. -
Page 7: Technical Data
Battery compartment/lid 1c. “Pulse” mode indicator Switch for automatic leveling/ 1d. Manual/Lock indicator locking the unit 1e. Low battery level indicator TECHNICAL DATA LL360P Description Accuracy: 1/4-in at 100-ft (3mm at 15m) Range: 65-ft (20m) Range with Detector (Optional):... - Page 8 LL360P Description Storage Temperature: -4º F to 140º F (-20º to 60º C) Power Supply: Three (3) AA cell alkaline provide approx. 5 hours on continuous work Water/Dust Protection IP54 Net Weight: 2.9lb (1.3kg) PREPARATIONS Inserting/Replacing Batteries Insert the batteries. When inserting,...
-
Page 9: Operation
OPERATION Do not subject the working without automatic leveling) WARNING or to the ON position (when working instrument to extreme temperatures or variations in with automatic leveling). temperature. As an example, do not Immediately after switching on, the leave it in vehicles for long time. In tool sends laser beams out of the exit case of large variations in openings. -
Page 10: Maintenance And Service
Pulse Mode Mode button 1b. The Pulse Mode indicator 1c will light up green. The Pulse (Receiver) Mode allows When not using the tool, switch it off the laser tool to be used with the in order to extend battery life. optional line laser receiver. -
Page 11: Limited Warranty
Seller or Authorized Service Center. To make a claim under this Limited Warranty, you must return the complete laser, optical instrument or David White product, transportation prepaid, to SITEPRO Service Department or Authorized Service Center. Please include a dated proof of purchase with your tool. For locations of nearby service centers, please call 1-855-354-9881. - Page 12 © Dave White’s SitePro 7619 S 1150 E Otterbein, IN 47970 Tel. +1 (765) 581 4097 42347DLL360 10/15 Printed in China...
