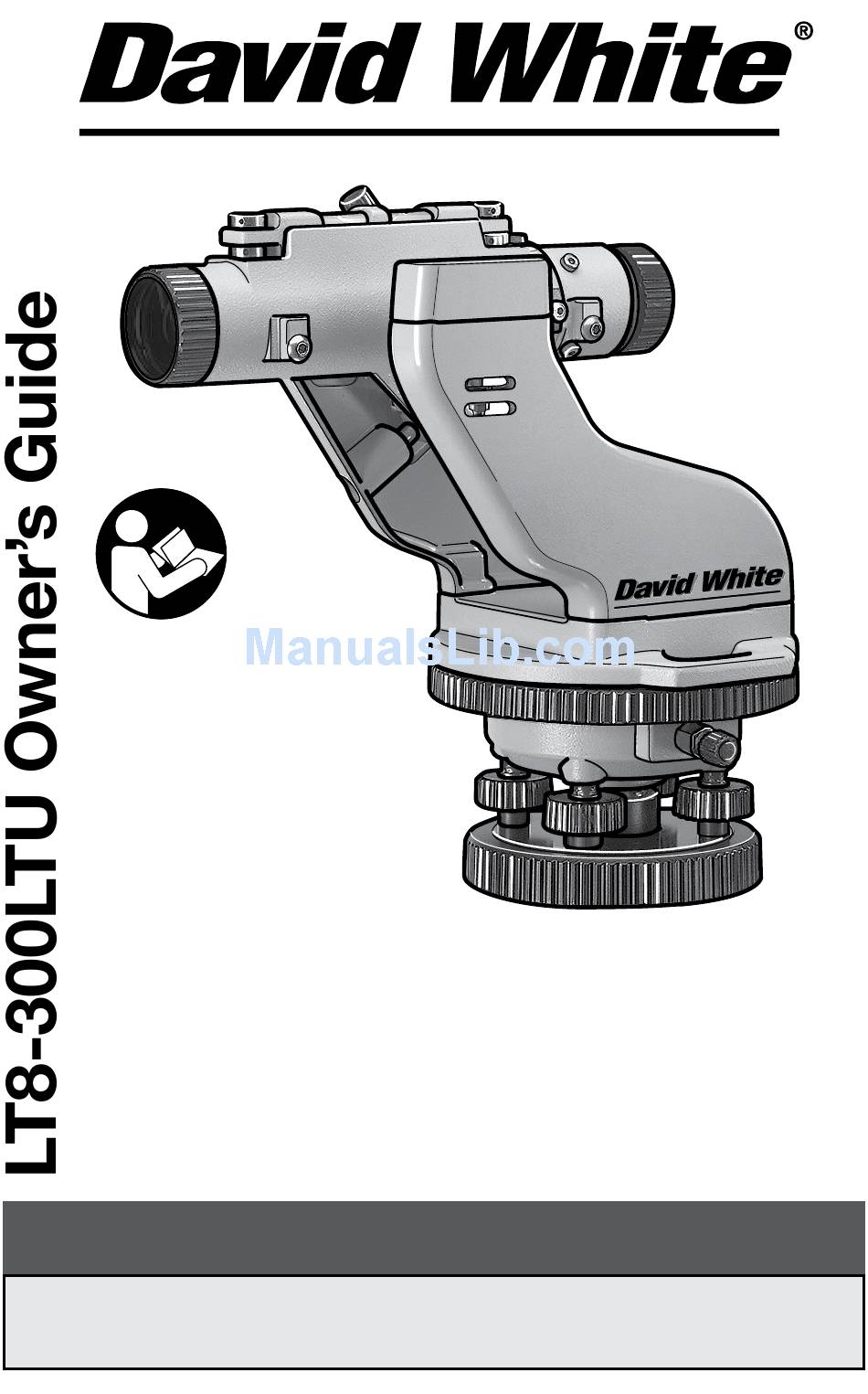

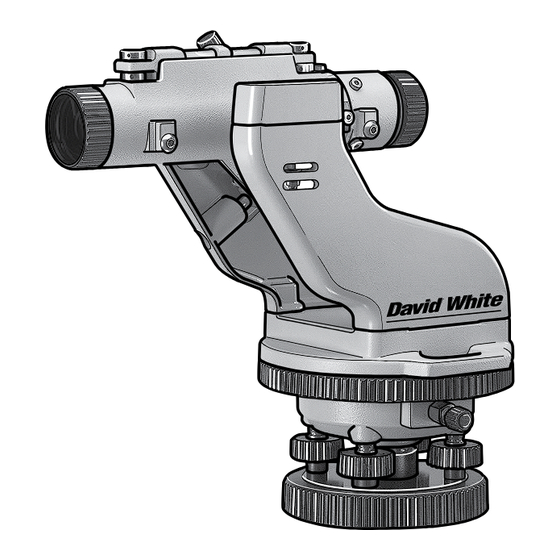

- Page 1 LT8-300LTU LT8-300LTULP FOR CUSTOMER SERVICE, PARTS AND REPAIR CALL (765) 581-4097 www.davidwhite.us.com IMPORTANT: IMPORTANT : IMPORTANTE: Read Before Using Lire avant usage Leer antes de usar...
- Page 2 David White is not responsible for errors caused by instruments that are out of adjustment. Contact your distributor, dealer or David White for information on the nearest facility to check if your instrument is properly adjusted.
-
Page 4: General Safety Rules
GENERAL SAFETy RULES Read all instructions. Failure to follow all instructions listed below WARNING may result in serious injury. When moving a tripod-mounted instrument, handle with care. Carry WARNING only in an upright position. Do not carry over your shoulder or in a horizontal position. -
Page 5: Technical Data
16. Laser plummet 5. Instrument level vials (2) 17. Plate level vial 6. Horizontal circle 7. Horizontal circle lock 8. Horizontal vernier TECHNICAL DATA LT8-300LTU LT8-300LTU RANGE: Vernier Double direct to 5 Up to 400 ft (120 m) min. ACCURACY: within 3⁄16 in at 150 ft... -
Page 6: General Description
10. The clamp does not move outward or inward must be hand tightened firmly before the as objects are focused. David White tangent will function. Universal instruments utilize the smooth precision of a rack and pinion mechanism Shifting Center for focusing. -
Page 7: Operation
OPERATION Initial Operation The LT8-300LTULP is equipped with a laser plummet. Protect the instrument WARNING This eliminates the need to use a plumb against moisture and bob. The instrument is set up over direct sun light. a reference point by using the laser Do not subject the instrument to extreme plummet beam (LT8-300LTULP). - Page 8 Make minor adjustments with leveling When leveling your instrument, be sure not to touch the tripod. Follow these screws if necessary. instructions carefully. Final Level Check Line up the telescope so that it is directly Rotate the telescope over each of four over one pair of leveling screws.
- Page 9 The following examples will explain how When reading the circle degree scale to to read the degree and vernier scales on the left, read up the vernier scale in the the circle. same direction. Exact Degree Reading The point at which 0 on the vernier scale touches the circle.
-
Page 10: Maintenance And Service
Read the length “ ” of a level rod shown between the stadia hairs. Stadia Hairs 1. Set up the LT8-300LTU over your pipe laser. 2. Sight on the far point and lock the The distance to the target is “ ”... -
Page 11: Limited Warranty
THIS LIMITED WARRANTY APPLIES ONLY TO PRODUCTS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CONTACT YOUR LOCAL SITEPRO DEALER OR IMPORTER. David White is a registered trademark and distributed exclusively by SitePro. -11-... - Page 12 © Dave White’s SitePro 7619 S 1150 E Otterbein, IN 47970 Tel. +1 (765) 581 4097 42346D8879 09/15 Printed in China...
