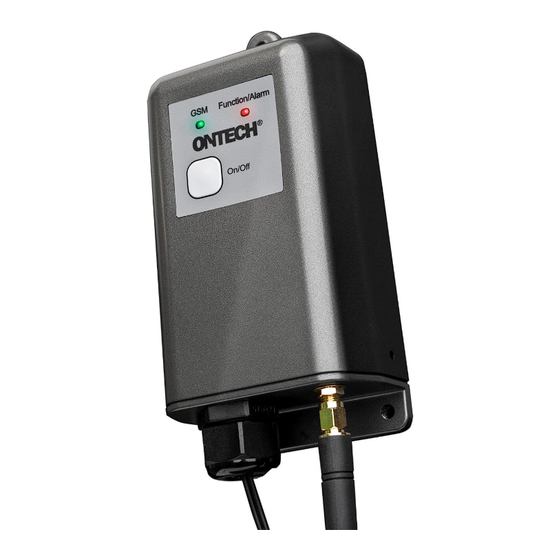

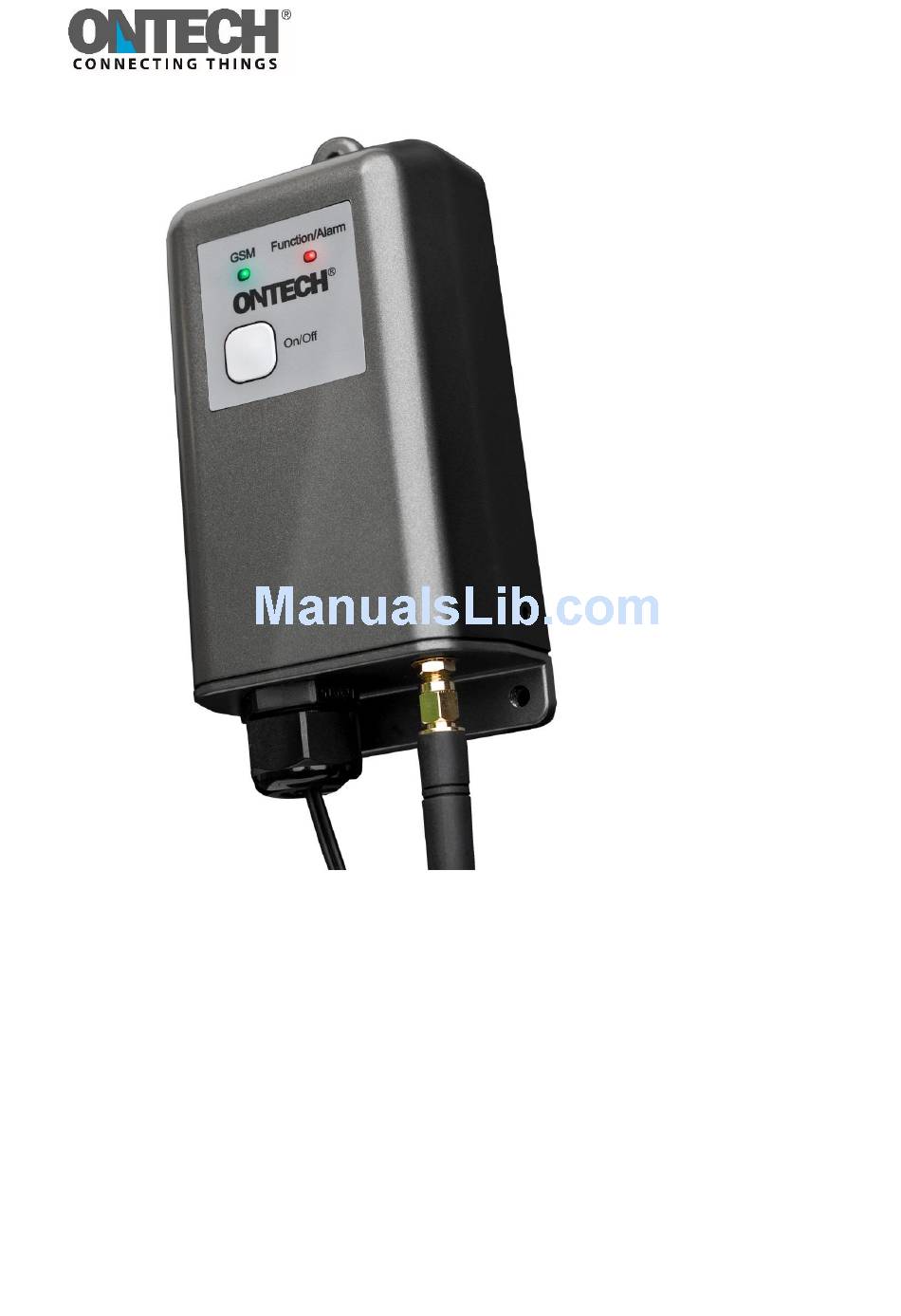

- Page 1 Ontech GSM 9025 Reference Manual English -1 -...
-
Page 2: Table Of Contents
Content Welcome ............................. 4 This manual ............................4 Text styles ............................4 Support ..............................4 Disclaimer ............................4 Overview ............................. 5 Accessory units ............................ 5 External temperature sensor ......................6 Get started ........................... 7 Content in the package ........................7 Start up the unit the first time ...................... - Page 3 Acknowledge alarms ......................... 21 Wired alarm sensors .......................... 21 Connecting a wired alarm ......................... 21 Delay of wired alarms ........................22 Alarm from a wired alarm sensor ....................22 Temperature alarm ........................... 22 Temperature alarms from the unit ....................22 Power fail alarms ..........................
-
Page 4: Welcome
Welcome Thank you for chosen Ontech GSM 9025. We hope you will be satisfied with the product and that it will be a good help for you. This manual covers all you have to know about the product. If you want a more comprehensive manual, we recommend the “Quick Start Guide”... -
Page 5: Overview
Accessory units Ontech GSM 9025 is equipped with a short range radio in the 2.4 GHz frequency band. This is used for wireless communication with different accessories. Up to 7 wireless accessories can be connected with a unique identity, which means they can be separately operated. The working range is about 30 meters in free field, this is often enough in a normal sized one-family house. -
Page 6: External Temperature Sensor
Open or Normally closed function. The unit also contains a temperature sensor. Ontech Alarmbox 9012 is a small battery powered unit containing a magnetic switch that sends an alarm if the magnetic switch is activated. The unit also has a wired input that can be connected to alarm sensors with either Normally Open or Normally closed function. -
Page 7: Get Started
Some prepaid SIM cards has a voice message that is played the first time the SIM-card is used. This message is blocking all the SMS functions in Ontech GSM 9025 and must be removed. Put the SIM— card in a mobile phone and make a voice call that is answered and the voice message is removed. -
Page 8: Choose A Password
5. Open the SIM-card holder by dragging it down until there is a click. 6. Fold up the upper part. 7. Insert the SIM-CARD in the upper part (the up folded part). The cut corner shall be positioned in the upper left corner when the upper part is folded down 8. -
Page 9: Change Password
1. Send an SMS to the unit with following content: 1234#8*8*5678 (1234= your old password, 4567= your new password. 2. Don’t forget to change the settings in the app for Androids or IPhone if you are using one to control your Ontech GSM 9025. -9 -... -
Page 10: Using Apps
Four different options will appear on the screen. Press Settings. When you have entered the page Settings for main units: 1. Press Number of units if you wish to control more than one Ontech GSM main unit. Select how many units you want to control. -
Page 11: Installation And Setting Of The Iphone App
When all settings are done you will return to the Main Page by click on the Main-button. You are now done with the settings and the app is ready to use to control your Ontech GSM 9025. -11 -... -
Page 12: Functions
Functions Ontech GSM 9025 is a mobile product with many different functions that can be programmed. Below you will find a list of available functions. Ver. refers to the software version where the function is available. To check which software version your unit have, see... - Page 13 Alarm units such as IR detectors, magnet switch and fire alarms, etc Settings that is connected to the Ontech GSM 9025 must have a closing (Normally Open, NO) or breaking (Normally Closed, NC) function. You must choose NO or NC when connecting an alarm to the unit.
- Page 14 GPS fence This functions lets you activate and set the area on a so called GPS fence. If the unit moves outside this area the alarm will activate and alert all the phone numbers on the alarm list. Sensor 4-20mA The unit can be used to measure and alarm at different levels of current between 4-20 mA.
-
Page 15: Function Settings
2. Press the button Settings on the lower part of the screen.. 3. Press the button SIM settings. An alert panel appears. Select Ontech GSM 9025 or 9035. 4. A website named Setting your Ontech Unit opens in the web browser Safari. Tilt the iPhone to landscape screen position in order to make the text more easily read. -
Page 16: Set The Functions With A Smartphone
1. Launch the telephones web browser. Go to the page http://www.ontechgsm.com/set.html. 2. A website named Setting your Ontech Unit opens in the web browser Safari. Tilt the iPhone to landscape screen position in order to make the text more easily read. -
Page 17: Controlling The Unit
Turn on or turn off a relay on the main unit or 230V output on any of the extra relays Ontech Relay 9010/9015 if you have one connected to the system: Press on the current unit and choose Relay ON or Relay off. With the function Set relay you can set the relay to go and off automatically after a certain time (timer function). -
Page 18: Controlling With An Iphone
Turn on or turn off a relay on the main unit or 230V output on any of the extra relays Ontech Relay 9010/9015 if you have one connected to the system: Press on the current unit and choose Relay ON or Relay off. With the function Set relay you can set the relay to go and off automatically after a certain time (timer function). - Page 19 Two or more commands can be written in the same SMS, just write them after each other and separate the commands with the sign #. Example: You want to turn on the relay in the main unit and turn off the relay of the Ontech Extra Relay with ID 3.
-
Page 20: Alarm
1. Launch the telephones web browser. Open the page http://www.ontechgsm.com/set.html. 2. A website named Setting your Ontech Unit opens in the web browser Safari. Tilt the telephone to landscape screen position in order to make the text more easily read. -
Page 21: Activate And Deactivate The Alarm Function
Powerfail alarms and Battery alarms cannot be acknowledged. Wired alarm sensors Different types of wired alarm sensors can be connected to Ontech GSM 9025. The unit has two alarm inputs. Default setting is Normally Open (NO). If the alarm sensors you connect are of the type Normally Closed (NC), you have to set this (See Functions on page 12). -
Page 22: Delay Of Wired Alarms
Temperature alarm Ontech GSM 9025 can be set to send an alarm message if the temperature rise above or decrease below the set temperature value. All temperature measurements and settings will use Celsius degree. -
Page 23: Power Fail Alarms
Temperature alarm to an Android telephone If the app Ontech Control is installed there will be a voice message saying “Ontech Alarm” On the main screen the background of the icon for the alarm will be red. The background of the temperature value will be red to show the temperature measured by the temperature sensor. - Page 24 -24 -...
-
Page 25: Other Functions
17) or by pushing the button on the unit. Garage Opener function for Android Important! Can only be operated from Android telephones with the Ontech Control app installed. This function differs between Android and Iphones. Below contains a description for the Android phone. -
Page 26: Add A User To The List
6. Press the Android general Back button to go back to the main screen. Garage opener function for Iphone Important! Can only be operated from Android telephones with the Ontech Control app installed. This function differs between Android and Iphones. Below contains a description for the Iphone. For... -
Page 27: Erase A User
GPS function Ontech GSM 9025 is prepared to connect to a GPS receiver. Receivers with a DIN contact of the type PS/2 is connected to an Ontech GPS adapter that is connected to terminal C (See picture on page 9). -
Page 28: Both Lamps
23 degrees and the external temperature sensor is 21 degrees. 2/15/-- indicates an extra relay Ontech Relay 9015 with ID no 2, the outlet is not activated and the internal temperature sensor is 15 degrees. There is no external temperature sensor. -
Page 29: Master Functions
This is the set thermostat temperature. Important! Under Units: is shown the extra units (Ontech Relay 9010, Ontech Relay 9015 and Ontech Alarmbox 9012) that is connected to the main unit with the short range radio. If these units loose contact with the main unit it can take up to one hour before this information is shown in the status SMS. -
Page 30: Backup Battery
Alarm list with the text ”Internal battery empty. Unit shuts down”. Then the unit will disconnect from the GSM network and turn off. In Android telephone with the Ontech Control app installed these messages will be presented graphically. -
Page 31: Trouble Shooting Guide
Wrong radio channel set Check all units in the system has connect to extra Short range radio disabled the same radio channel set. units Ontech Relay Check that the short range radio 9010/9015 and function is turned on. Ontech Alarm box... -
Page 32: Technical Specifications
Technical specifications Dual band GSM 900/1800 MHz GSM subscription All, even prepaid. Operator must operate the GSM network and not only 3G. Relay Potential free 230V/10A Short range radio Frequency 2,4 GHz, Power 1 mW Alarm inputs Two alarm inputs that can be set to Normally Open or Normally Closed. -
Page 33: Qr-Codes
QR-codes Ontech Control for Android Ontech Control for iPhone Settings page for Smartphones -33 -...
