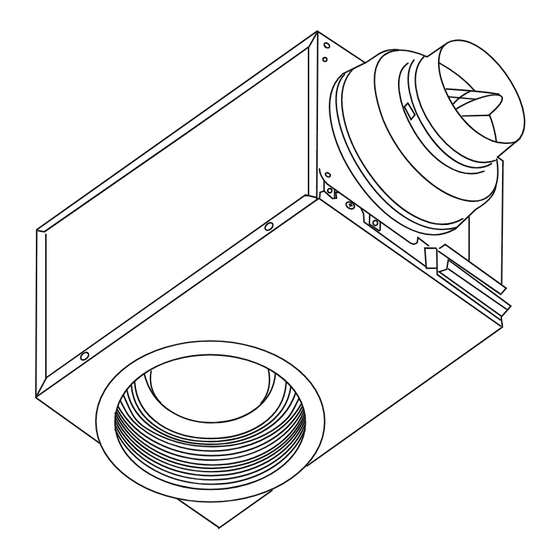

Service Manual Ventilating Fan (North America Market) FV-08VRL1 WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
1. Parts Identification FV-08VRL1 Main Body Section (4pcs) (2pcs) (2pcs) (6pcs) (4pcs) Junction Box (2pcs) (2pcs) (7pcs) (3pcs) (2pcs) (4pcs) Motor Section Casing Section...
Page 3
1. Parts Identification FV-08VRL1 Main Labels CAUTION: Lamp Contains Mervury. To reduce the risk of injury to persons,install fan at least 2.1m(7feet)above the floor. Dispose According to Local, ATTENTION: LISTEN State or Federal Laws. Afin de reduire les risques de blessures corporelles,...
Page 4
1. Parts Identification FV-08VRL1 Replace Lamp Method Step 1. Step 2. Step 3. Remove the trim assembly Remove the lamp cover Replace the lamp Replace Motor Unit Method Step 1. Step 2. Step 3. Step 4. Clamp Remove 2pcs screws...
3. Parts List FV-08VRL1 Part No. Part Name Q'ty Remark FFV0420027S Bracket Cover FFV6710026S Wiring Cover FFV1600116S Frame Assembly FFV0000125S Adapter Assembly FFV0800002S Casing Support FFV2800015S Junction Box FFV3402103S Earth Lead Wire FFV0900055S Connector Assembly V FFV0900056S Connector Assembly L...
Page 7
3. Parts List FV-08VRL1 Part No. Part Name Q'ty Remark 41 FFV9001004S Packing Case Assembly 42 FFV3410038S Light Section Not Include 2pcs Bind Tap Screw FFV7000018S Truss Tap Screw FFV7000108S Truss Tap Screw FFV7010028S Spring Washer For Fixing Earth Lead Wire...
