ARTRAY ARTCAM-WOM Series Instruction Booklet

Usb2.0 ccd camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

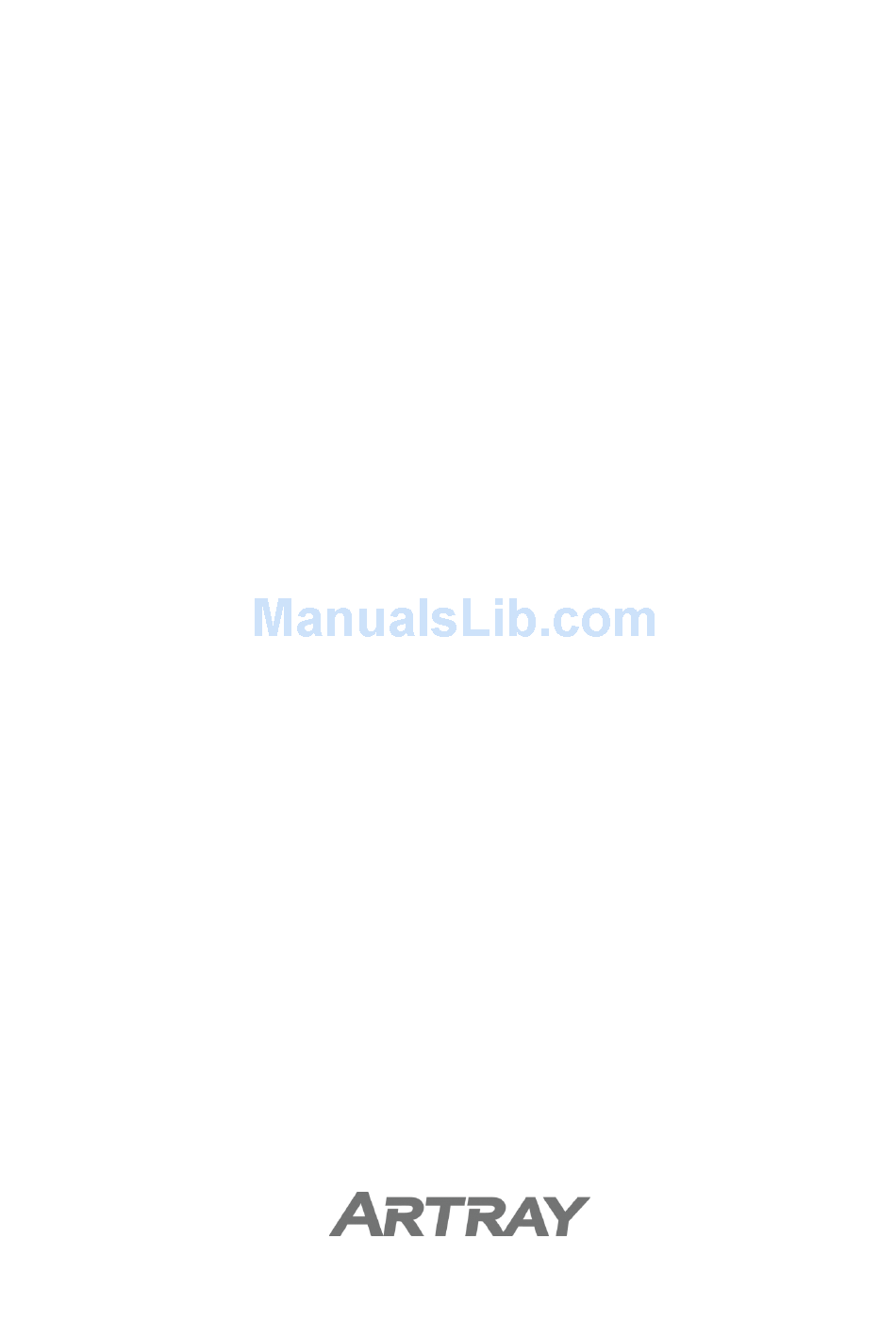

USB2.0 CCD CAMERA
ARTCAM-WOM Series
INSTRUCTION BOOKLET
0.3M pixels
1.25M pixels
1.5 M pixels
1.5 M pixels
2.0 M pixels
5.0 M pixels
5.0 M pixels
ARTRAY CO., LTD.
ARTCAM-424KY-WOM Series
ARTCAM-445KY2-WOM Series
ARTCAM-150P5-WOM Series
ARTCAM-285CX-WOM Series
ARTCAM-274KY-WOM Series
ARTCAM-500P2-WOM Series
ARTCAM-655KY-WOM Series
June 3, 2013
Ver1.30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARTCAM-WOM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ARTRAY ARTCAM-WOM Series

Summary of Contents for ARTRAY ARTCAM-WOM Series

  • Page 1 June 3, 2013 Ver1.30 USB2.0 CCD CAMERA ARTCAM-WOM Series INSTRUCTION BOOKLET 0.3M pixels ARTCAM-424KY-WOM Series 1.25M pixels ARTCAM-445KY2-WOM Series 1.5 M pixels ARTCAM-150P5-WOM Series 1.5 M pixels ARTCAM-285CX-WOM Series 2.0 M pixels ARTCAM-274KY-WOM Series 5.0 M pixels ARTCAM-500P2-WOM Series 5.0 M pixels ARTCAM-655KY-WOM Series ARTRAY CO., LTD.

  • Page 2: Table Of Contents

    Contents 1. Attention………………………………….3 2. Introduction………………………………6 3. Main Features……………………………6 4. The Product………………………………7 5. Connect the Camera…………………….8 6. Specifications……………………………..9 7. External Dimensions…………………….13 Spectral Sensitivity Characteristics……...19 9. AD Conversion…………. ……. ……. …..26 10. Optional Functions………………………27 11. Recommended PC……………………..29...

  • Page 3: Attention

    1. Attention ■About this manual 1. Before using the camera, please read this manual thoroughly. 2. Please keep this manual reachable and always refer to the contents when needed. 3. Please contact us if the manual is lost or damaged. We will provide an replacement. 4.
  • Page 4 ■For Safe Use Warning ●In following circumstances, please stop using the product and turn off the power immediately to prevent the risks of fires and electric shocks. If the product is defective, please contact us for repair or exchange. For your safety, please do not disassemble, modify or repair the camera on your own.
  • Page 5 To save the environment, we do not issue warranty in printed format. Instead, all records of the warranty periods, delivery dates and the customer information are well kept in our system. For more details, please refer to the sites below: Hardware Warranty : http://www.artray.us/download/artray_warranty.pdf...

  • Page 6: Introduction

    2. Introduction ARTCAM-WOM Series is CCD cameras for industrial use. This series adopt USB2.0 interface, so the data can be delivered to PC directly without a capture board. Cameras are equipped with on board memory which avoid data missing during transfer.

  • Page 7: The Product

    4. The Product 1) Camera 2) USB Cable Type A-B connector cable, 3m approx. *1 A USB cable with auxiliary power supply is attached for ARTCAM-424KY-WOM/ARTCAM-655KY-WOM series and customized model of external power supply is also available. *2 For open frame type and model without USB connector, a Type A- connector of 3m will be attached. 3) Introduction Booklet 4) Viewer software/Device Driver CD <Options>...

  • Page 8: Connect The Camera

    5. Connect the Camera 5-1 How to connect a camera 5-2 Shutter Speed Shutter speed can be changed on the standard viewer software ART-Viewer. The shutter speed is set directly on the sensor register, so please refer to the following formulas for the real exposure time.

  • Page 9: Specifications

    6. Specifications 6-1 Color Model ARTCAM- ARTCAM- ARTCAM- ARTCAM- 424KY-WOM 445KY2-WOM 150P5-WOM 285CX-WOM 424KY-WOM-OP 445KY2-WOM-OP 150P5-WOM-OP 285CX-WOM-OP-CM 424KY-WOM-OP-CM 445KY2-WOM-OP-CM 150P5-WOM-OP-CM Sensor Type CCD Color Image Sensor Total Number 692(H)×504(V) 1348(H)×976(V) 1434(H)×1050(V) 1434(H)×1050(V) Of Pixels Number Of 659(H)×494(V) 1296(H)×966(V) 1392(H)×1040(V) 1392(H)×1040(V) Effective Pixels Resolution 656(H)×494(V)
  • Page 10 6-2 Color Model ARTCAM- ARTCAM- ARTCAM- 274KY-WOM 500PⅡ-WOM 655KY-WOM 274KY-WOM-OP 655KY-WOM-OP-CM 500PⅡ-WOM-OP-CM 274KY-WOM-OP-CM Sensor Type CCD Color Image Sensor Total Number Of Pixels 1688(H)×1248(V) 2658(H)×1970(V) 2536(H)×2068(V) Number Of Effective Pixels 1628(H)×1236(V) 2588(H)×1960(V) 2456(H)×2058(V) Resolution 1600(H)×1200(V) 2560(H)×1920(V) 2456(H)×2058(V) Active Imager 7.16(H)×5.44(V)mm 8.80(H)×6.66(V)mm 8.47(H)×7.10(V)mm Size...
  • Page 11 6-3 Monochrome Model ARTCAM- ARTCAM- ARTCAM- ARTCAM- 424KY-BW-WOM 445KY2-BW-WOM 150P5-BW-WOM 285CX-BW-WOM 424KY-BW-WOM-OP 445KY2-BW-WOM-OP 150P5-BW-WOM-OP 285CX-BW-WOM-OP-CM 424KY-BW-WOM-OP-CM 445KY2-BW-WOM-OP-CM 150P5-BW-WOM-OP-CM Sensor Type CCD Monochrome Image Sensor Total Number 692(H)×504(V) 1348(H)×976(V) 1434(H)×1050(V) 1434(H)×1050(V) Of Pixels Number Of Effective 659(H)×494(V) 1296(H)×966(V) 1392(H)×1040(V) 1392(H)×1040(V) Pixels Resolution 656(H)×494(V) 1280(H)×960(V)
  • Page 12 6-4 Monochrome Model ARTCAM- ARTCAM- 274KY-BW-WOM 655KY-BW-WOM 274KY-BW-WOM-OP 655KY-BW-WOM-OP-CM 274KY-BW-WOM-OP-CM Sensor Type CCD Monochrome Image Sensor Total Number Of Pixels 1688(H)×1248(V) 2536(H)×2068(V) Number Of Effective Pixels 1628(H)×1236(V) 2456(H)×2058(V) Resolution 1600(H)×1200(V) 2456(H)×2058(V) Active Imager 7.16(H)×5.44(V)mm 8.47(H)×7.10(V)mm Size 1/1.8” 2/3” Scan Mode Progressive Scan Pixel Size 4.4(H)×4.4(V)μm...

  • Page 13: External Dimensions

    7. External Dimensions 7-1 C-MOUNT, CASED, USB CABLE TYPE ARTCAM-445KY2-WOM / 445KY2-BW-WOM ARTCAM-150P5-WOM / 150P5-BW-WOM ARTCAM-285CX-WOM / 285CX-BW-WOM ARTCAM-274KY-WOM / 274KY-BW-WOM ARTCAM-500PⅡ-WOM C Mount USB B Connector Drawing base without a tripod panel...
  • Page 14 7-2 C-MOUNT, CASED, USB CABLE TYPE ARTCAM-424KY-WOM / 424KY-BW-WOM ARTCAM-655KY-WOM / 655KY-BW-WOM C Mount USB B Connector Drawing base without a tripod panel...
  • Page 15 7-3 BOARD LENS, BOARD TYPE ARTCAM-445KY2-WOM-OP / 445KY2-BW-WOM-OP ARTCAM-150P5-WOM-OP / 150P5-BW-WOM-OP ARTCAM-274KY-WOM-OP / 274KY-BW-WOM-OP...
  • Page 16 7-4 BOARD LENS, BOARD TYPE ARTCAM-424KY-WOM-OP / 424KY-BW-WOM-OP...
  • Page 17 7-5 C-MOUNT, BOARD TYPE ARTCAM-445KY2-WOM-OP-CM / 445KY2-BW-WOM-OP-CM ARTCAM-150P5-WOM-OP-CM / 150P5-BW-WOM-OP-CM ARTCAM-285CX-WOM-OP-CM / 285CX-BW-WOM-OP-CM ARTCAM-274KY-WOM-OP-CM / 274KY-BW-WOM-OP-CM ARTCAM-500PⅡ-WOM-OP-CM...
  • Page 18 7-5 C-MOUNT, BOARD TYPE ARTCAM-424KY-WOM-OP-CM / 424KY-BW-WOM-OP-CM ARTCAM-655KY-WOM-OP-CM / 655KY-BW-WOM-OP-CM...

  • Page 19: Spectral Sensitivity Characteristics

    8. Spectral sensitivity characteristics 8.1 ARTCAM-424KY-WOM series(Color model) (Color model) 8.2 ARTCAM-424KY-BW-WOM series(Monochrome model) (Monochrome model)
  • Page 20 8.3 ARTCAM-445KY2-WOM series(Color model) (Color model) 8.4 ARTCAM-445KY2-BW-WOM series(Monochrome model) (Monochrome model)
  • Page 21 8.5 ARTCAM-150P5-WOM series(Color model) (Color model) 8.6 ARTCAM-150P5-BW-WOM series(Monochrome model) (Monochrome model)
  • Page 22 8.7 ARTCAM-285CX-WOM series(Color model) (Color model) 8.8 ARTCAM-285CX-BW-WOM series(Monochrome model) (Monochrome model) 8.8 ARTCAM-285CX-BW-WOM series(Monochrome model)
  • Page 23 8.9 ARTCAM-274KY-WOM series(Color model) (Color model) 8.10 ARTCAM-274KY-BW-WOM series(Monochrome model) (Monochrome model)
  • Page 24 8.11 ARTCAM-500PⅡ-WOM series(Color model) (Color model)
  • Page 25 8.12 ARTCAM-655KY-WOM series(Color model) (Color model) 8.13 ARTCAM-655KY-BW-WOM series(Monochrome model) (Monochrome model)

  • Page 26: Ad Conversion

    9. AD Conversion (ARTCAM-WOM series) *AD conversion to 16 bit and then output the upper 10 bit to digital gain 9-1 Standard functions (configurable in standard viewer/SDK) ・Digital gain Global gain (digital gain) can be configured with the standard viewer software or SDK.

  • Page 27: Optional Functions

    10. Optional Functions 10-1 Trigger Input ARTCAM-WOM series are designed with external trigger. Trigger Input Circuit Camera 3.3V FPGA TRIG PC814 R1 = 2.4kΩ R2 = 10kΩ...
  • Page 28 10-2 GPIO GPIO option is available upon request before the delivery of the ARTCAM-WOM series. Pin assign Function GPIO_0 GPIO_1 GPIO_2 VCC(3.3V) Maximum output 50mA GPIO_3 GPIO_4 GPIO_5 ・Each of the six GPIO pins is pulled up to 3.3V with 1kΩ on the circuit board and is connected to the IO pins on FPGA.

  • Page 29: Recommended Pc

    What may cause the problem is that the regulation of the power lines becomes not enough, and so causes impudence mismatch on data signals. *For the recommended extension cable, please contact our sales department. (TEL: +81-3-3389-5488) ARTRAY CO., LTD. 1-17-5 Kouenjikita, Suginami-ku, Tokyo 166-0002 Japan Tel : +81-3-3389-5488 Fax : +81-3-3389-5486 Email : sales@artray.us URL : www.artray. us...
