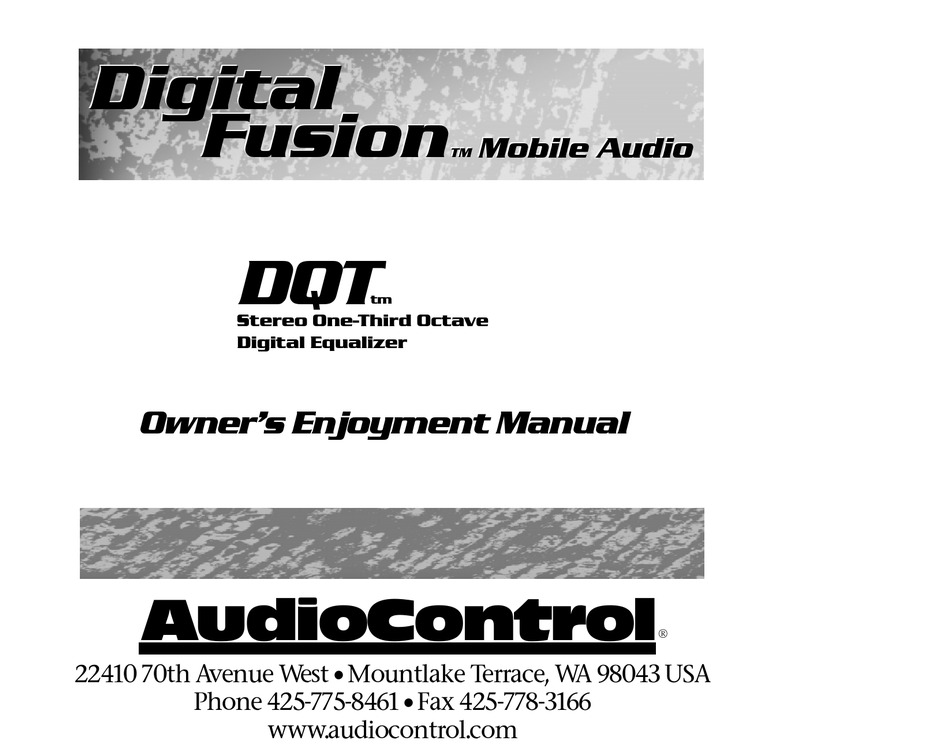

- Page 1 Digital Digital Fusion Fusion Mobile Audio Mobile Audio Stereo One-Third Octave Digital Equalizer Owner’s Enjoyment Manual ® 22410 70th Avenue West • Mountlake Terrace, W A 98043 USA Phone 425-775-8461 • Fax 425-778-3166 www.audiocontrol.com...
- Page 2 This page was intentionally left bland Owner’s Enjoyment Manual...
-
Page 3: Table Of Contents
Table of Contents Introduction ............1 Features and Highlights . - Page 4 Owner’s Enjoyment Manual...
-
Page 5: Introduction
Introduction Welcome to the world of Digital Fusion. The fusion of AudioControl’s lengthy experience in performance signal processing combined with state-of-the-art Digital Signal Processing (DSP) technology. Congratulations also on your pur- chase of the DQT, the world’s first thirty-band, one-third octave stereo and parametric, digital equalizer, utilizing AudioControl’s Digital Fusion... - Page 6 No hiss, clicks, or pops plus maximum sound quality. Bulletproof Warranty: The most impor- tant feature of all. Every AudioControl product is selflessly designed and manufactured by the occupants of our Pacific Northwest rainforest factory. We take every effort to ensure that you will have many years of enjoyment out of your DQT.
-
Page 7: Quick Installation Information
If this is not obvious to you, quickly pack up your DQT and run to your nearest authorized AudioControl dealer to have them perform the installation. You will thank us later. 2. Physically mount the DQT in a location that keeps it away from soda spills, food crumbs, and curious fingers. -
Page 8: A Guided Tour Of The Dqt
A GUIDED TOUR OF THE DQT 1) Inputs: The DQT has two RCA inputs that need to get their audio signals from your source unit. If your source unit has multiple outputs (like a front, rear, and/or subwoofer) you only need to connect the front or rear outputs to your DQT. - Page 9 You can wire up the power, ground, and remote turn-on from the convenience of outside your car and then casually plug it into your DQT. Owner’s Enjoyment Manual DQT 24bit Digital EQ By AudioControl Figure 2: Top view of DQT Digital Fusion ™...
-
Page 10: Installing The Dqt
INSTALLING THE DQT Up to this point everything you have read has served to educate you on the operations of your DQT. We are sure that you are now chomping at the bit to install your DQT so we recommend you read the following sections very carefully. -
Page 11: Audio Wiring
When the electrical connections are complete, you may reconnect the negative terminal to your battery. Figure 4: DQT with DXS Figure 5: DQT with a FOUR.1 Owner’s Enjoyment Manual Digital C. DQT Audio Wiring Planning: As you may already have guessed, there are numerous ways to configure the DQT in your audio system. -
Page 12: Level Matching
planning out your system and even sketching it out on paper. The following diagrams are just a few of the system options: D. Level Matching If you have ever listened to a friend’s “killer” car audio system and heard lots of hiss, clicks or pops, then you have experienced an improperly level matched system. -
Page 13: Dqt Menu Screens
DQT’s functions is quite simple. When you first apply power to your DQT, it will go through a “wake up” screen, including some subliminal advertising for AudioControl. It will then display a friendly blue screen. Fear not, the blue screen on the DQT is actually a good thing. - Page 14 MODE: GraphicEQ Graphic EQ Freq = 1kHz L= +6dB >o< Figure 7: Graphic EQ screen Your DQT has 30 built-in graphic equalization filters with fixed, constant-Q, center frequencies. They just happen to match those on the Audio- Control SA-3055 real time analyzer. In the GraphicEQ mode, you can select any of the 30 frequencies, one at a time and apply boost or cut.
- Page 15 select a frequency, apply the proper amount of boost or cut, and change the bandwidth or “Q” of the filter. Para EQ1 mode allows you set the controls for one of the parametric equalizers. Para EQ2 lets you change the settings for the second parametric EQ band.
-
Page 16: Adjusting The Equalizer
If you cannot locate an RTA, you probably want to have your authorized AudioControl dealer perform the equalization adjustments as they will have one. You can certainly “try” adjusting your DQT using your ears, however an RTA will give you the best results. - Page 17 usually goes. Take a careful look at the “curve” on your analyzer and how one frequency combines with the next. There is no one curve that will satisfy every person, as we all have different tastes. How else can you explain Liberace or rice cakes? The key is to use your DQT to help balance your system from one frequency to the next and give your speakers...
-
Page 18: Graphic Versus Parametric Equalization
area of the audio spectrum that is an octave above your sub-bass frequencies and several octaves below your midrange. Most autosound systems have too much midbass due to the fact that speakers mounted in the doors or kick panels cause resonance’s or peaks in the response curve. These peaks in the midbass can actually mask or block sounds in the all-important midrange area causing your system to sound dull or lifeless. -
Page 19: Troubleshooting
100 Hz, 125 Hz, 160 Hz, 200 Hz, and 250 Hz to control the area. Or you can use one parametric control centered at 160 Hz and set the bandwidth at 1 octave and you can perform a global adjust- ment of the entire midbass region. -
Page 20: Warranty
Make sure your system is turned OFF before you move these jumpers. FACTORY SETTINGS Input Grounding Ground Isolation Choice of beverage DQT 24bit Digital EQ By AudioControl Figure 14: Inside of DQT Owner’s Enjoyment Manual Shipped Options Balanced Unbalanced Isolated 200ohm or Ground Micro-brew... - Page 21 “...who’s good with electronics”, try to repair your AudioControl product. So go ahead, read this warranty, and then take a few days to enjoy DQT before sending in the warranty card and comments.
- Page 22 4. You cannot let anybody who isn’t (A) the AudioControl factory; (B) somebody authorized in writing by AudioControl to service your DQT. If anyone other than (A) or (B) messes with your DQT, that voids your warranty. 5. The warranty is also void if the serial number is altered or removed, or if DQT has been used improperly.
-
Page 23: Specifications
DQT SPECIFICATIONS All specifications are measured at 14.4 VDC (standard automotive voltage). As technology advances, AudioControl reserves the right to continuously change our specifications, like our weather . . . although we are working on it. Maximum input level ............7.5 V Maximum output level . - Page 24 Width = 1/6 Width = 1/6 Width = 1/6 © 2002, AudioControl, a division of Electronic Engineering and AudioControl, Making Good Stereo Sound Better, Digital Fusion, DQT, DXS, are all trademarks of Electronic Engineering and Manu- bleak, windy, and dreary rain-drenched days at our home in the...
