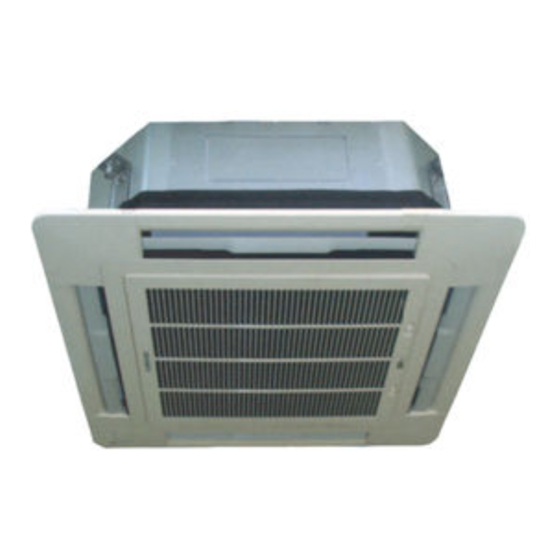

Samsung CH052EAM Installation Manual
System air conditioner (cool and heat)
Hide thumbs
Also See for CH052EAM:
- Owner's instructions manual (16 pages) ,
- Owner's instructions manual (16 pages)
Table of Contents
Advertisement
INSTALLATION MANUAL
MANUAL DE INSTALACIÓN
MANUEL D'INSTALLATION
MANUALE D'INSTALLZIONE
MANUAL DE INSTALAÇÃO
INSTALLATIONS-HANDBUCH
E°XEIPI¢IO E°KATA™TA™H™
àçëíêìäñàü èé ìëíÄçéÇäÖ
CH052EAM
CH070EAM
CH094EAM
CH105EAM
CH128EAM
CH140EAM
System Air Conditioner
(Cool and Heat)
Aire acondicionado sistemático
(Refrigeración y Calefacción)
Climatiseur numérique multifonctionnel
(Refroidissement et Chauffage)
Sistema Aria Condizionata
(Raffreddamento e Riscaldamento)
Sistema Ar Condicionado
(Refrigeração e Aquecimento)
Klimaanlage System
(Kühlen und Wärmen)
™‡ÛÙËÌ· ∫ÏÈÌ·ÙÈÛÌÔ‡
(æ‡Í˘ Î·È £¤ÚÌ·ÓÛ˘)
ëËÒÚÂÏÌ˚È ÇÓÁ‰Û¯Ì˚È äÓ̉ˈËÓÌÂ
(éı·ʉÂÌËÂ Ë Ó·Ó„Â‚)
E S F I P D G R DB98-11886A(3)
Advertisement
Table of Contents
Related Manuals for Samsung CH052EAM
Summary of Contents for Samsung CH052EAM
- Page 1 INSTALLATION MANUAL MANUAL DE INSTALACIÓN MANUEL D’INSTALLATION MANUALE D’INSTALLZIONE MANUAL DE INSTALAÇÃO INSTALLATIONS-HANDBUCH E°XEIPI¢IO E°KATA™TA™H™ àçëíêìäñàü èé ìëíÄçéÇäÖ CH052EAM CH070EAM CH094EAM CH105EAM CH128EAM CH140EAM System Air Conditioner (Cool and Heat) Aire acondicionado sistemático (Refrigeración y Calefacción) Climatiseur numérique multifonctionnel (Refroidissement et Chauffage)
-
Page 2: Table Of Contents
Contents Chapter Preparation for Installation ....... 4 Deciding on Where to Install the Indoor Unit ....5 Indoor Unit Installation . -
Page 3: 4 W W A A Y Y C C A A S S S S E E T T T T E E
Chapter Preparation for Installation ....4 Deciding on Where to Install the Indoor Unit . . . 5 Indoor Unit Installation ....8 Purging the Unit . -
Page 4: Preparation For Installation
Preparation for Installation When deciding on the location of the air conditioner with the owner, the following restrictions must be taken into account. General Do NOT install the air conditioner in a location where it will come into contact with the following elements: Combustible gases Saline air Machine oil... -
Page 5: Deciding On Where To Install The Indoor Unit
Deciding on Where to Install the Indoor Unit Indoor Unit There must be no obstacles near the air inlet and outlet. Install the indoor unit on a ceiling that can support its weight. Maintain sufficient clearance around the indoor unit. Make sure that the water dripping from the drain hose runs away correctly and safely. - Page 6 Deciding on Where to Install the Indoor Unit (continued) Drawing of the indoor unit 052/070/094/105 Unit : mm 10-M4 Hole (prepared hole) 2x230=260 Suspension bolt 4-M8~M10 OPEN CLOSED Fresh air intake hole Name Remark ø6.35 (1/4") : 052/070 Liquid pipe connection ø9.52 (3/8") : 094/105 ø12.70 (1/2") :...
- Page 7 128/140 Unit : mm 10-M4 Hole (prepared hole) 2x230=260 Suspention bolt 4-M8~M10 OPEN CLOSED Branch duct connection Name Remark Liquid pipe connection ø9.52(3/8") ø19.05(3/4") Gas pipe connection Drain pipe connection Power supply connection Air discharge grille Air suction grille...
-
Page 8: Indoor Unit Installation
Indoor Unit Installation It is recommended to install the refnet joint before installing the indoor unit. Place the pattern sheet on the ceiling at the spot where you want to install the indoor unit. Since the diagram is made of paper, it may shrink or stretch slightly due to temperature or humidity. -
Page 9: Purging The Unit
Purging the Unit On delivery, the indoor unit is loaded with refrigerant gas. All this gas must therefore be purged before connecting the assembly piping. To purge the inert gas, proceed as follows. Unscrew the pinch pipe at the end of each refrigerant pipe. Result: All inert gas escapes from the indoor unit. -
Page 10: Connecting The Refrigerant Pipe
Connecting the Refrigerant Pipe There are two refrigerant pipes of differing diameters: A smaller one for the liquid refrigerant A larger one for the gas refrigerant The inside of copper pipe must be clean & has no dust. Remove the pinch pipe on the pipes and connect the assembly pipes to Refrigerant oil each pipe, tightening the nuts, first manually and then with a torque wrench, a spanner applying the following torque. -
Page 11: Cutting/Flaring The Pipes
Cutting / Flaring the Pipes Make sure that you have the required tools available (pipe cutter, reamer, flaring tool and pipe holder). If you wish to shorten the pipes, cut it with a pipe cutter, taking care to ensure that the cut edge remains at a 90° angle with the side of the pipe. Refer to the illustrations below for examples of edges cut correctly and incorrectly. -
Page 12: Performing Leak Test & Insulation
Performing Leak Test & Insulation Leak Test To check for gas leaks on the indoor unit, check the connection part of each refrigerant pipe by using a leak detector. Insulation Once you have checked that there are no leaks in the system, you can insulate the piping and hose. -
Page 13: Drainpipe And Drain Hose Installation
Drainpipe and Drain Hose Installation Care must be taken when installing the drainpipe and drain hose for Flexible the indoor unit so that condensate water is drained correctly outside. hose Drainpipe Fix the flexible hose to the drainpipe. The connection port of the flexible hose and PVC drainpipe must be fixed with PVC adhesives. - Page 14 Drainpipe and Drain Hose Installation (continued) If a concentrated drain hose is installed, refer to the figure below. Drain clamp Air ventilation Concentrated drain hose Testing the drainage You should test the drainage after completing the installation. Prepare a little water about 2.0 liters. Turn the cover drain pump, then pull it out.
-
Page 15: Connecting The Connection Cord
Connecting the Connection Cord The indoor unit is powered from the outdoor unit via the connection cord. Remove the screw on the electrical component box and remove the cover plate. Route the connection cord through the side of the indoor unit and connect the cable to terminals;... -
Page 16: Assigning Address To Indoor Unit
Assigning Address to Indoor Unit Before installing the indoor unit, assign an address to the indoor unit according to the air conditioning system plan. The address of the indoor unit is assigned by adjusting MAIN(SW02) and RMC(SW01) rotary switches. K1 K2 K3 K4 K5 K6 K7 K8 K9 K10 K11 K12 SW02 MAIN... - Page 17 Installation of more than 2 indoor units Indoor unit Indoor unit 1 Indoor unit 2 Switch MAIN(SW02) address RMC(SW01) address All indoor units must have different MAIN addresses, but their RMC addresses should be same. In case of installing the wired remote controller, all indoor units and the wired remote controller must have the same RMC address.
-
Page 18: Installing The Safety Net
Installing the Safety Net Install the safety net after installing the connection cord and fixing electric component box cover. For your safety, you must install the safety net. For details about installing the panel, refer to the manual for the panel. The electric component box cover... -
Page 19: Troubleshooting
Troubleshooting Detection of errors If an error occurs during the operation, one or more LED flickers and the operation is stopped except the LED. If you re-operate the air conditioner, it operates normally at first, then detect an error again. LED Display on the receiver &... -
Page 20: Led Display
Troubleshooting (continued) LED Display LED lamp display Operation Defrost Timer Air flow Filter Abnormal conditions Remarks Type A Type B Communication error between indoor units 1. Error of electronic expansion valve close 2. Error of electronic expansion valve open 3. 2’nd detection of high temperature cond 4. -
Page 21: Wired Remote Controller
Wired remote controller If an error occurs, is displayed on the wired remote controller. If you would like to see an error code, press the Test button. Type A Display Explanation Remark Error of communication between the outdoor unit and the wired Communication remote controller errors... - Page 22 Troubleshooting (continued) Type B Display Explanation Remark Compressor down due to protection control of the discharge Error about protection temperature sensor control of the outdoor unit Control due to the condenser temperature sensor when cooling mode Error of the low pressure switch (Protection control) Reverse phase error (Protection control) In removing frost Error about the outdoor unit...
-
Page 23: O O P P P P T T T T I I I I O O O O N N N N A A A A L L L L A A C C C C C C C C E E E E S S S S S S S S O O O O R R R R I I I I E E E E S S S S
Chapter Parts List ....... . . 24... -
Page 24: Parts List
Parts List Wired Remote Controller Accessories Type A Wired remote M4x16 tapped Indoor unit power Owner’s Installation Cable-tie Cable clamp controller screw drawing cable instructions manual Type B Communication Wired M4x16 tapped Indoor unit power Cable-tie Cable clamp Wire joint cable of the wired remote controller screw... - Page 25 Centralized Controller Accessories Centralized M4x16 tapped Owner’s Installation Cable-tie Cable clamp controller screw instructions manual Function Controller Accessories Function M4x16 tapped Owner’s Installation Cable-tie Cable clamp controller screw instructions manual Transmitter Accessories Transmitter Transmitter Installation Transmitter power cable communication cable manual...
- Page 26 THIS AIR CONDITIONER IS MANUFACTURED BY: ESTE AIRE ACONDICIONADO HA SIDO FABRICADO POR: CE CLIMATISEUR EST FABRIQUE PAR: QUESTO CONDIZIONATORE D’ARIA È PRODOTTO DA: ESTE APARELHO DE AR CONDICIONADO É FABRICADO POR: DIESE KLIMAANLAGE IST FABRIZIERT VON: AYTH H ™Y™KEYH KATA™KEYA™THKE A¶O: ùíéí...
