System air conditioner (cool and heat)
Hide thumbs Also See for CH105EAM:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
OWNER'S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D'UTILISATION
ISTRUZIONI PER L'USO
MANUAL DE INSTRUÇÕES
GEBRAUCHSANWEISUNG
√¢∏°π∂™ Ã∏™∆∏
àçëíêìäñàü
èéãúáéÇÄíÖãü
CH052EAM
CH070EAM
CH094EAM
CH105EAM
CH140EAM
System Air Conditioner
(Cool and Heat)
Aire acondicionado sistemático
(Refrigeración y Calefacción)
Climatiseur numérique multifonctionnel
(Refroidissement et Chauffage)
Sistema Aria Condizionata
(Raffreddamento e Riscaldamento)
Sistema Ar Condicionado
(Refrigeração e Aquecimento)
Klimaanlage System
(Kühlen und Wärmen)
™‡ÛÙËÌ· ∫ÏÈÌ·ÙÈÛÌÔ‡
(æ‡Í˘ Î·È £¤ÚÌ·ÓÛ˘)
ëËÒÚÂÏÌ˚È ÇÓÁ‰Û¯Ì˚È äÓ̉ˈËÓÌÂ
(éı·ʉÂÌËÂ Ë Ó·Ó„‚)
E S F I P D G R DB98-11887A(4)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH105EAM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samsung CH105EAM

Summary of Contents for Samsung CH105EAM

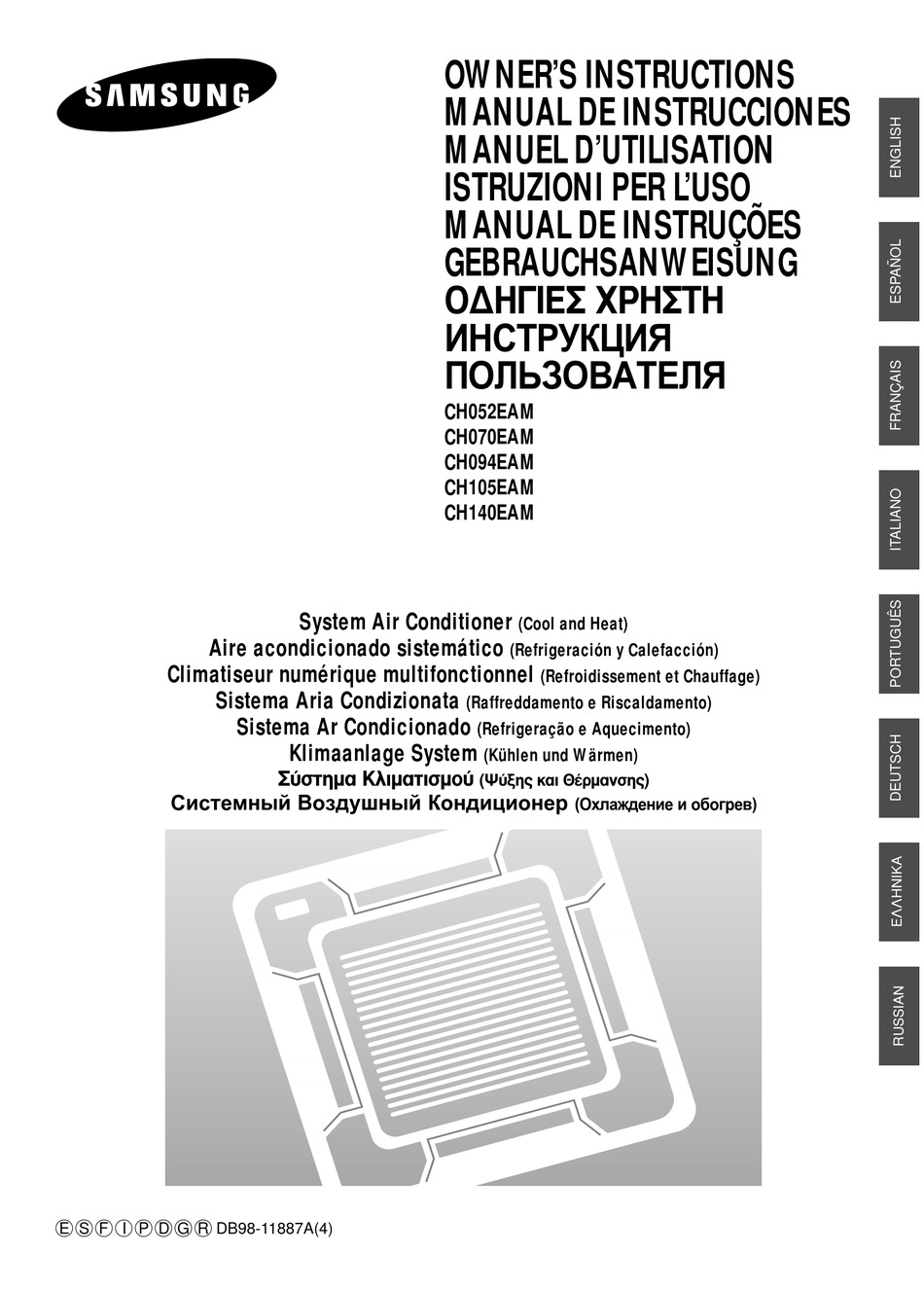

  • Page 1 ISTRUZIONI PER L’USO MANUAL DE INSTRUÇÕES GEBRAUCHSANWEISUNG √¢∏°π∂™ Ã∏™∆∏ àçëíêìäñàü èéãúáéÇÄíÖãü CH052EAM CH070EAM CH094EAM CH105EAM CH140EAM System Air Conditioner (Cool and Heat) Aire acondicionado sistemático (Refrigeración y Calefacción) Climatiseur numérique multifonctionnel (Refroidissement et Chauffage) Sistema Aria Condizionata (Raffreddamento e Riscaldamento) Sistema Ar Condicionado (Refrigeração e Aquecimento)
