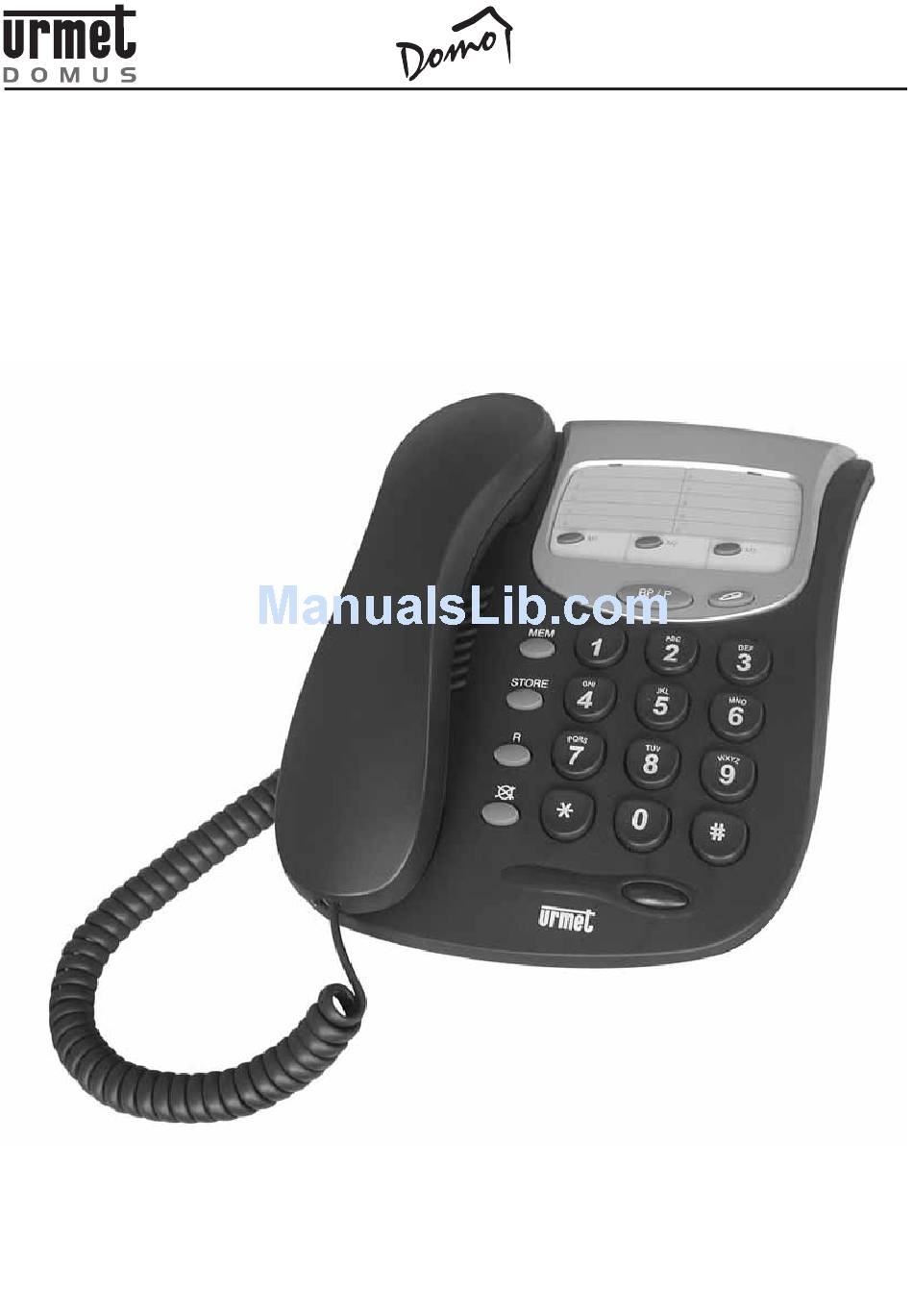

Mod.
4093
DS4093-001A
LBT7849
TELEFONO BCA DOMO
SINGLE LINE DOMO TELEPHONE
Sch./Ref. 4093/1
LIBRETTO ISTRUZIONI
INSTRUCTIONS FOR USE

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4093 and is the answer not in the manual?

Questions and answers

Summary of Contents for urmet domus 4093

  • Page 1 Mod. 4093 DS4093-001A LBT7849 TELEFONO BCA DOMO SINGLE LINE DOMO TELEPHONE Sch./Ref. 4093/1 LIBRETTO ISTRUZIONI INSTRUCTIONS FOR USE...
  • Page 2: Note Informative

    NOTE INFORMATIVE Dichiarazione di conformità La società Urmet Domus S.p.A. con sede in via Bologna n.° 188/C – 10154 Torino (TO) I, dichiara che il presente dispositivo è conforme alle seguenti norme: • EN55022, EN55024 – Compatibilità elettromagnetica • EN41003, EN60950 – Sicurezza elettrica...
  • Page 3: Table Of Contents

    INDICE NOTE INFORMATIVE ..............2 Dichiarazione di conformità...
  • Page 4: Caratteristiche

    1. CARATTERISTICHE 1.1 Caratteristiche generali DESCRIZIONE DESCRIZIONE MICROTELEFONO TASTIERA DI SELEZIONE AGGANCIO MICROTELEFONO INDICATORE LUMINOSO DI CHIAMATA TASTO GANCIO TASTO MUTE SUPPORTO MICROTELEFONO TASTO R CARTELLINO PORTANUMERO TASTO STORE TASTI MEMORIE DIRETTE TASTO MEM TASTO NOTES CAVO SPIRALATO (CORDONE MICROTELEFONO) TASTO RP/P DS4093-001A...
  • Page 5: Dimensioni

    DESCRIZIONE PIEDINI IN GOMMA SONERIA SUPPORTI PER INSTALLAZIONE A PARETE CONNETTORE CAVO MICROTELEFONO COMMUTATORE LIVELLO VOLUME DELLA SONERIA CONNETTORE CAVO LINEA TELEFONICA 1.2 Dimensioni LBT7849...
  • Page 6: Installazione

    2. INSTALLAZIONE 2.1 Collegamento del microtelefono Inserire una delle due estremità del cavo spiralato alla presa del microtelefono e l’altra alla presa posta sul lato sinistro del telefono. 2.2 Collegamento del cavo di linea • Presa telefonica tipo RJ Inserire una delle due estremità del cavo di linea alla presa posta sul retro del telefono e la rimanente direttamente nella presa telefonica proveniente dal PABX.
  • Page 7: Installazione A Parete

    2.4 Installazione a parete Il telefono può essere installato a parete mediante due tasselli (non a corredo) che dovranno essere fissati in corrispondenza delle apposite asole ricavate sulla base del telefono. Per forare la parete, si consiglia di utilizzare la dima riportata nell’ultima pagina del presente libretto istruzioni e, dopo aver praticato i fori ed inserito i tasselli, avvitare le viti fino ad una distanza dalla parete di circa 5mm.
  • Page 8: Uso Del Telefono

    • a fine conversazione riagganciate il microtelefono. (*): questo dispositivo è stato progettato e costruito per essere utilizzato come derivato di un centralino telefonico (PABX) Urmet Domus. Pertanto la sua installazione all’interno dell’impianto PABX, nonché la sua programmazione – laddove necessaria – deve essere eseguita da personale qualificato.
  • Page 9: Funzione Flash (Tasto )

    PROCEDURA DI MEMORIZZAZIONE CON CENTRALINO • Sollevate il microtelefono • attendete il tono di libero del centralino PABX • digitate il codice di accesso alla linea telefonica • premete il tasto per inserire una PAUSA • attendete il tono di libero dalla centrale •...
  • Page 10: Programmazione Delle Memorie A Richiamo Diretto

    4.1 Programmazione delle memorie a richiamo diretto PROCEDURA CON IMPEGNO IMMEDIATO DELLA LINEA DAL PABX • Sollevate il microtelefono • premete il tasto • digitate il numero telefonico da memorizzare • premete il tasto • premete uno dei tasti oppure •...
  • Page 11: Programmazione Delle Funzioni Citofoniche

    4.4 Programmazione delle funzioni citofoniche DESCRIZIONE Se avete installato il telefono Domo come derivato da centralino PABX Urmet Domus della Serie Agorà ed in genere su tutti i cantralini PABX Urmet Domus ad esclusione degli intercomunicanti, è possibile memorizzare i comandi dei servizi citofonici per un uso semplificato.
  • Page 12: Cartellini Porta Numeri

    4.5 Cartellini porta numeri Il telefono Domo è provvisto di cartellini porta numeri (uno standard presente sul telefono ed uno personalizzato(*) a corredo del prodotto) sui quali è possibile annotare i nominativi dei numeri telefonici memorizzati. Per compilare (e/o sostituire) il cartellino è necessario rimuovere la protezione. Su di essa è prevista un’asola: fate leva con una punta sottile per sollevarla di qualche millimetro e, successivamente, disimpegnate le linguette dalle sedi.
  • Page 13: Informative Notes

    • 1 memory card with door phone functions • 1 Consumer Rights sheet • 1 Service Center List sheet • 1 instructions handbook. Urmet Domus reserves the right to change the specifications and performance of the product in any moment without prior notice. LBT7849...
  • Page 14 TABLE OF CONTENTS INFORMATIVE NOTES ..............13 Declaration of Conformity .
  • Page 15: Characteristics

    1. CHARACTERISTICS 1.1 General characteristics DESCRIPTION DESCRIPTION HANDSET DIALLING KEYPAD HANDSET HOOK SYSTEM CALL INDICATOR LED HOOK KEY MUTE BUTTON HANDSET SUPPORT SYSTEM R BUTTON MEMORY CARD STORE BUTTON ONE-TOUCH DIAL BUTTONS MEM BUTTON NOTE BOOK BUTTON SPIRAL CORD (FOR HANDSET) RP/P BUTTON LBT7849...
  • Page 16: Dimensions

    DESCRIPTION RUBBER FEET RINGER SUPPORTS FOR WALL MOUNTING HANDSET LEAD CONNECTOR RINGER VOLUME LEVEL SWITCH TELEPHONE LINE LEAD CONNECTOR 1.2 Dimensions DS4093-001A...
  • Page 17: Installation

    2. INSTALLATION 2.1 Handset connection Connect one end of the spiral cord provided to the socket on the handset and the other to the socket on the left side of the telephone. 2.2 Line cord connection • Presa telefonica tipo RJ Connect one end of the line cord to the socket on the back of the phone and the other directly in the telephone socket.
  • Page 18: Wall Mounting

    2.4 Wall mounting The telephone can be wall-mounted using two expansion bolts (not provided) to be fastened in correspondence with the slots on the base of the telephone. To drill the wall you are advised to use the template shown on the last page of this handbook and, after drilling the holes and inserting the plugs, tighten the screws at a distance from the wall of approx.
  • Page 19: Using The Telephone

    • at the end of the conversation hang up the handset. (*): this device has been designed and realized for Urmet Domus switchboard (PABX) extension using. Therefore his installation in PABX system, and his programming - where necessary – must be done by qualified staff. For the brought back immediate call forwarding function of continuation see the PABX manual that you are using.
  • Page 20: Flash Function (Button )

    STORAGE PROCEDURE WITH SWITCHBOARD • Pick up the handset • wait for the free tone of the PABX switchboard • dial the line access code • press the button to enter a PAUSE • wait for the line free tone •...
  • Page 21: Programming One-Touch Dial Numbers

    4.1 Programming one-touch dial numbers PROGRAMMING PROCEDURE WITH IMMEDIATE CALL FORWARDING • Pick up the handset • press the button • enter the telephone number to be stored • press the button • press button • hang up. Note: every time a storage procedure is carried out, this overwrites (replaces) the phone number stored previously.
  • Page 22: Programming Door Phone Functions

    4.4 Programming door phone functions DESCRIPTION If you have installed the Domo telephone as an extension from a PABX Urmet Domus switchboard of the Agorà Series and in general on all Urmet Domus PABX switchboards with the exception of intercommunicating ones, it is possible to store the controls of the door phone services for simplified use.
  • Page 23: Memory Cards

    4.5 Memory cards The Domo telephone is provided with memory cards (one standard on the telephone and one customised(*) accompanying the product) on which it is possible to write the names corresponding to the phone numbers stored. Remove the transparent protection to complete (and/or replace) the card. It has a slot on it: prise with a fine point to lift it a few millimetres and then, release the catches from their housing.
  • Page 24 DS4093-001A LBT7849 FILIALI STABILIMENTO 20151 MILANO - V.Gallarate 218 URMET DOMUS S.p.A. Tel. 02.380.111.75 - Fax 02.380.111.80 10154 TORINO (ITALY) 00043 CIAMPINO (ROMA) V.L. Einaudi 17/19A Via Bologna 188/C Tel. 06.791.07.30 - Fax 06.791.48.97 Telefono 011.24.00.000 (RIC. AUT.) CASALNUOVO (NA) V.Nazionale delle Puglie 3 80013 011.24.00.300 - 323...
