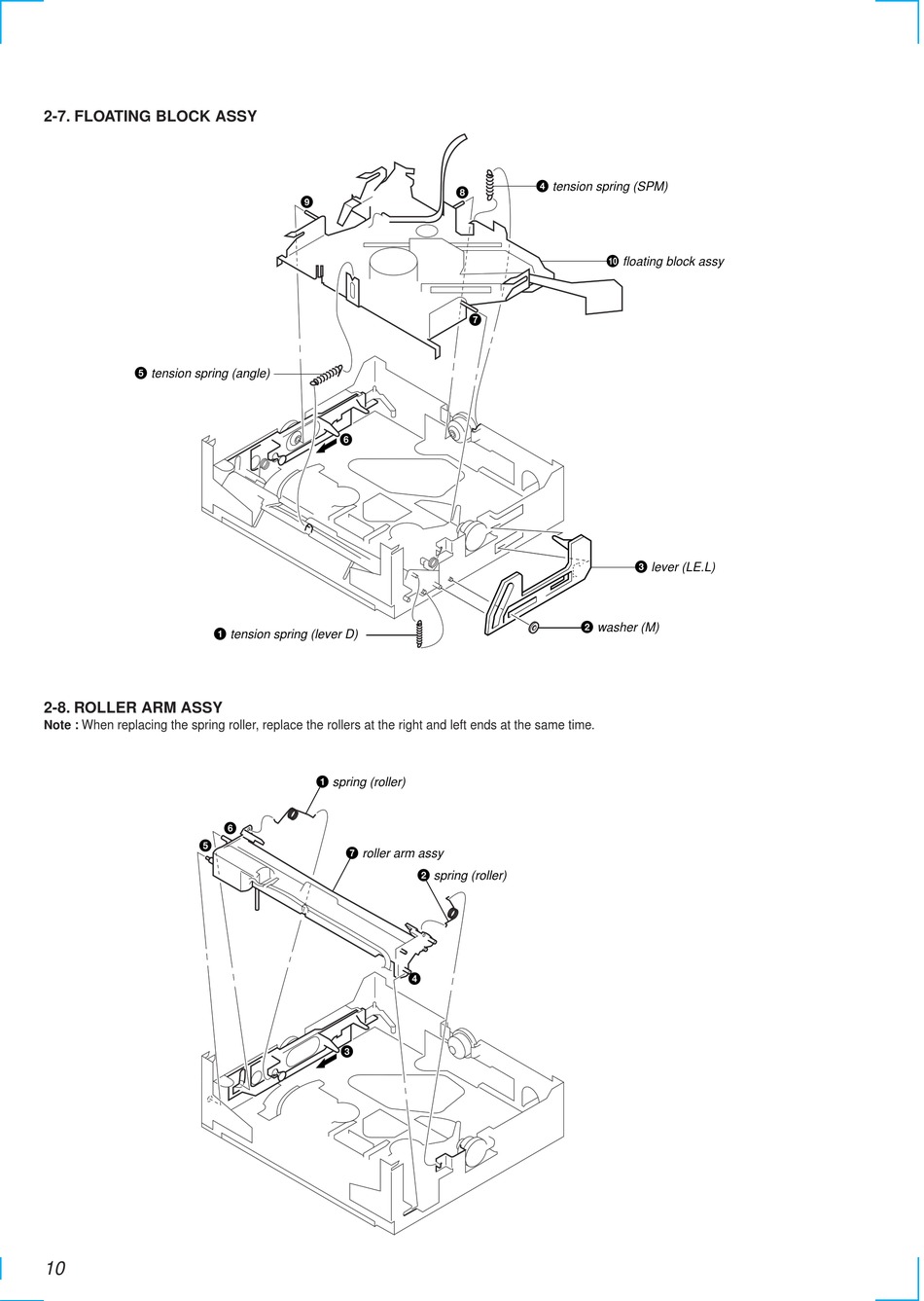

2-7. FLOATING BLOCK ASSY

4 tension spring (SPM)
8
9
0 floating block assy
7
5 tension spring (angle)
6
3 lever (LE.L)
2 washer (M)
1 tension spring (lever D)

2-8. ROLLER ARM ASSY

Note : When replacing the spring roller, replace the rollers at the right and left ends at the same time.
1 spring (roller)
6
5
7 roller arm assy
2 spring (roller)
4
3
10
