SERVICE MANUAL
Ver 1.0 2004. 03
Revision History
Revision History
How to use
How to use
Acrobat Reader
Acrobat Reader
Link
Link
SPECIFICATIONS
SPECIFICATIONS
SERVICE NOTE
SERVICE NOTE
DISASSEMBLY
DISASSEMBLY
• For ADJUSTMENTS (SECTION 6), refer to SERVICE MANUAL, ADJ (987672851.pdf).
• For INSTRUCTION MANUAL, refer to SERVICE MANUAL, LEVEL 1 (987672841.pdf).
• For MECHANISM ADJUSTMENTS, refer to the "DV MECHANICAL ADJUSTMENT MANUAL
Z (Z200) MECHANISM " (9-876-724-11) .
• Reference number search on printed wiring boards is available.
• TO TAKE OUT A CASSETTE WHEN NOT EJECT (FORCE EJECT)
On the VC-359 board
This service manual provides the information that is premised the circuit board replacement service and not intended repair
inside the VC-359 board.
Therefore, schematic diagram, printed wiring board, waveforms, mounted parts location and electrical parts list of the VC-359
board are not shown.
The following pages are not shown.
Schematic diagram ............................. Pages 4-27 to 4-68
Printed wiring board ............................ Pages 4-93 to 4-96
DCR-HC65
BLOCK DIAGRAMS
BLOCK DIAGRAMS
FRAME SCHEMATIC DIAGRAMS
FRAME SCHEMATIC DIAGRAMS
SCHEMATIC DIAGRAMS
SCHEMATIC DIAGRAMS
Mounted parts location ............................. Pages 4-99 to 4-100
Electrical parts list ................................... Pages 5-19 to 5-27

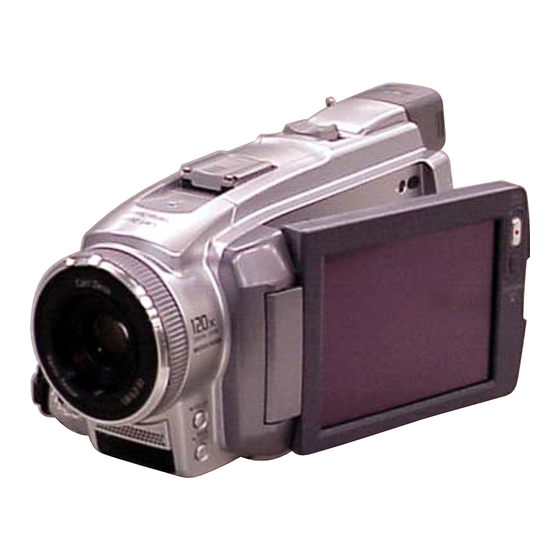

DIGITAL VIDEO CAMERA RECORDER
RMT-831
LEVEL
DCR-HC65
Canadian Model
Korean Model
Z (Z200) MECHANISM
PRINTED WIRING BOARDS
PRINTED WIRING BOARDS
REPAIR PARTS LIST
REPAIR PARTS LIST
2
US Model
E Model
