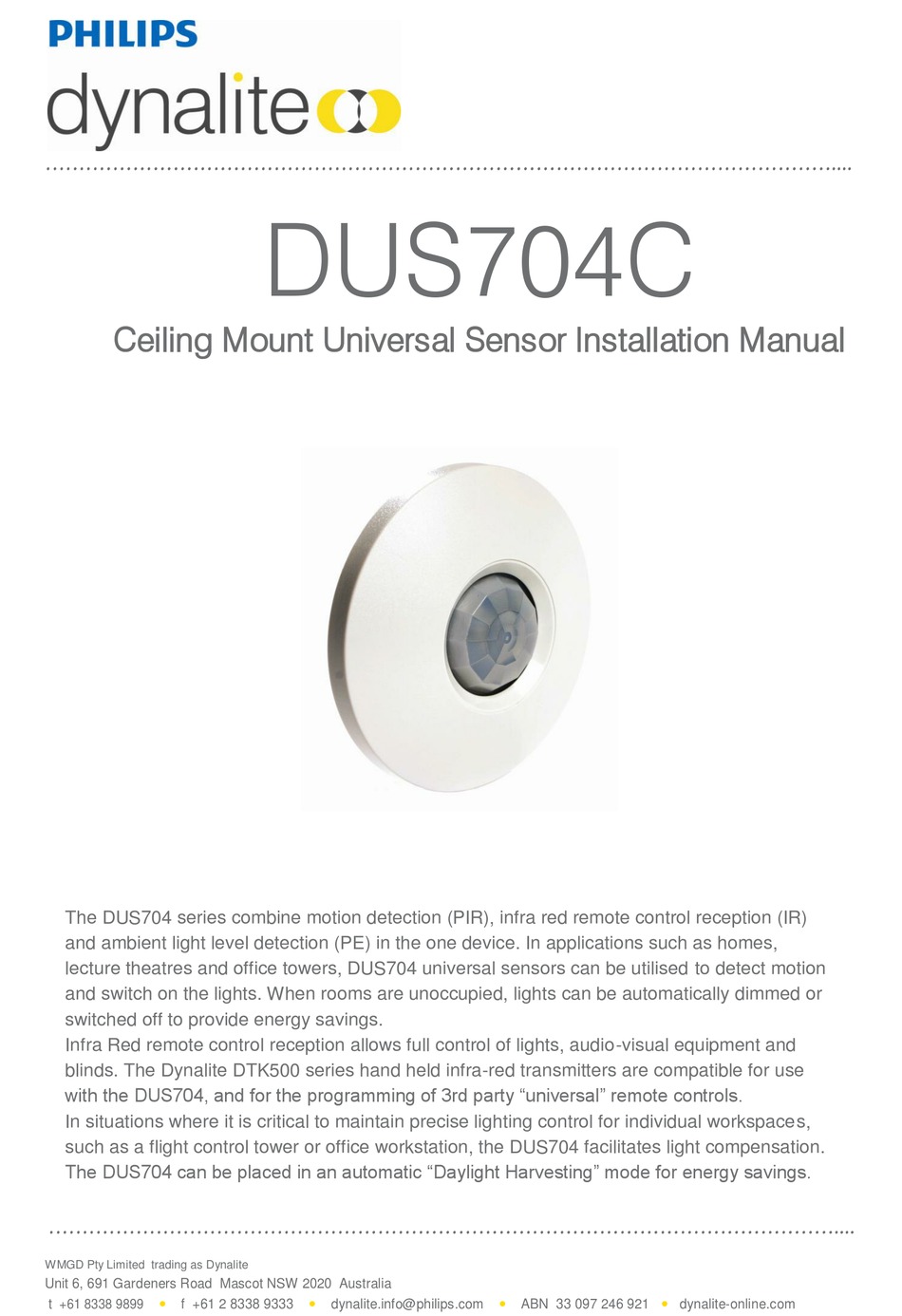

Ceiling Mount Universal Sensor Installation Manual
The DUS704 series combine motion detection (PIR), infra red remote control reception (IR)
and ambient light level detection (PE) in the one device. In applications such as homes,
lecture theatres and office towers, DUS704 universal sensors can be utilised to detect motion
and switch on the lights. When rooms are unoccupied, lights can be automatically dimmed or
switched off to provide energy savings.
Infra Red remote control reception allows full control of lights, audio-visual equipment and
blinds. The Dynalite DTK500 series hand held infra-red transmitters are compatible for use
with the DUS704, and for the programming of 3rd party "universal" remote controls.
In situations where it is critical to maintain precise lighting control for individual workspaces,
such as a flight control tower or office workstation, the DUS704 facilitates light compensation.
The DUS704 can be placed in an automatic "Daylight Harvesting" mode for energy savings.
