Protos MAX2 Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

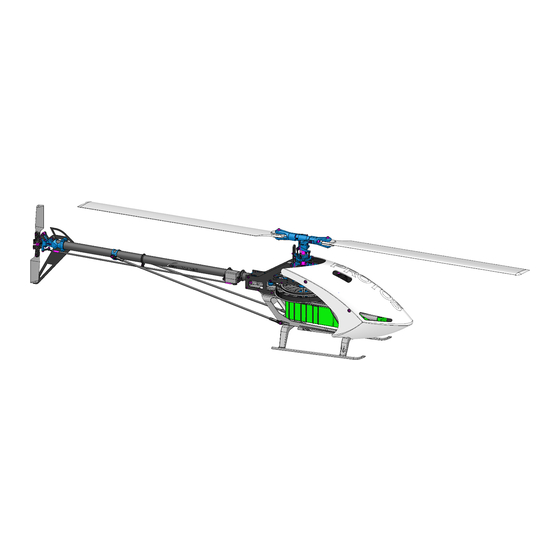

Instructions Manual
R
Main rotor diameter................. 1577mm (700mm blades)
Tail rotor diameter.................. 286mm (105mm tail blades)
Length without main blades.......1371mm
Length with main blades...........1757mm (700mm blades)
Overall height........................365mm
Tail rotor-Main rotor ratio..........4,766
Main pulley............................190T
Release 2.7
Autorotation pulley..................143T
Always check on www.msheli.com for a more recent version of this manual
Tail pulley.............................30T
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MAX2 and is the answer not in the manual?

Questions and answers

Related Manuals for Protos MAX2

Summary of Contents for Protos MAX2

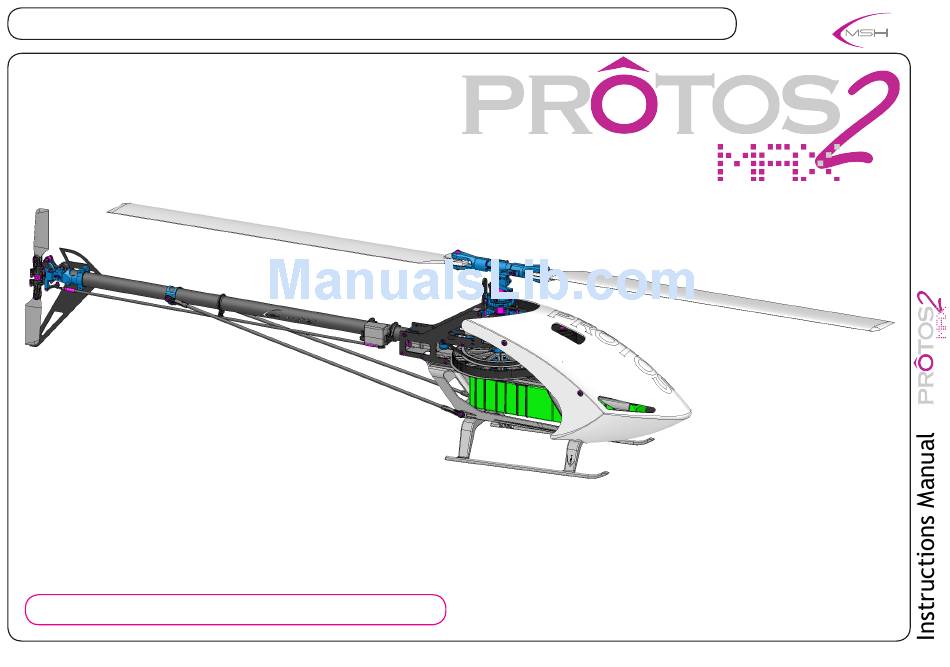

  • Page 1 Instructions Manual Main rotor diameter....1577mm (700mm blades) Tail rotor diameter....286mm (105mm tail blades) Length without main blades..1371mm Length with main blades...1757mm (700mm blades) Overall height......365mm Tail rotor-Main rotor ratio..4,766 Main pulley......190T Release 2.7 Autorotation pulley....143T Always check on www.msheli.com for a more recent version of this manual Tail pulley......30T...

  • Page 2: Table Of Contents

    Index Pages Content safety rules tools required for assembly R/C equipment required to complete motor pinion teeth choice how to read this manual main frame assembly 8-29 tail assembly 30-42 cyclic servos head assembly 44-50 51-52 Brain, ESC, BEC 53-54 battery installation main blades installation canopy installation...
  • Page 3 Always follow these rules for safety Operate the helicopter in open areas with no people nearby. Do NOT operate the helicopter in the following places and situations (or else you risk severe accidents): -in places where children gather or people pass through -in residential areas and parks -indoors and in limited space -in windy weather or when there is rain, snow, fog or other precipitation...

  • Page 4: Tools Required For Assembly

    Tools required for assembly Philips screw driver Hexagon screw drivers : 1,5mm 2mm (need with handle and long tip) 2,5mm - 4mm open-end wrench 7mm two 5 mm (spindle) Thrust bearing grease Hexagon L-key 2,5mm where indicated use Thread lock MEDIUM Slow curing EPOXY...
  • Page 5 Main blades: standard full carbon blades 690mm - 716mm Swashplate servos supported: 750mm - 800mm all standard servos (qnty. 3) need 800 conversion Kit Protos Max V2 ART. MSH71165 Tail blades: standard full carbon blades Tail servo supported: 105mm to 115mm all standard servos (qnty.

  • Page 6: Motor Pinion Teeth Choice

    Motor pinion teeth choice Fly style Pinion (520Kv motor) Beginner 18T ART. MSH71137 (Optional) 1800 Sport 19TART. MSH71179 (Optional) 1950 2100 Soft 3D 20T ART. MSH71138 21T ART. MSH71180 (Optional) 2150 Hard 3D 2250 22T ART. MSH71139 (Optional) Hardcore 3D 23T ART.

  • Page 7: How To Read This Manual

    How to read this manual Box and bag where you can Box where you can find washers, bearings, screws find all big parts and all other small parts Apply a thin layer of threadlock on the external part of the ball bearing Pay attention to the instruction steep behind this icon 24mm...
  • Page 8 box A box F bag A1 where I can find the BIG PARTS where I can find screws, ball bearings and stuff like that Main plastic frame V2 ART. MSH7163 Landing gear ART. MSH71001 Washer 3.1x8x1 Hex screw M3x10 ART. MSH71114...
  • Page 9 box G box F bag A1 where I can find the BIG PARTS where I can find screws, ball bearings and stuff like that Hex screw M3x8 ART. MSH71109 PRE-ASSEMBLED Guide pulley washer - Front side - Guide pulley - Front side - ART.
  • Page 10 box E box F bag A1 where I can find the BIG PARTS where I can find screws, ball bearings and stuff like that Hex screw M4x16 ART. MSH71131 Ball bearing 6x19x6 ART. MSH71135 For 6mm motor shaft For 8mm motor shaft Ball bearing 8x19x6 ART.
  • Page 11 box F bag A1 where I can find the BIG PARTS where I can find screws, ball bearings and stuff like that Pinion 20T ART. MSH71138 M4X4 Socket screw ART. MSH71122 Pinion adapter for 6mm motor shaft ART. MSH71147 Hex screw M4x16 ART.
  • Page 12 box F bag A2 where I can find the BIG PARTS where I can find screws, ball bearings and stuff like that Guide pulley support - Back Side - Ball bearing PRE-ASSEMBLED 6x10x2,5 ART. MSH51073 Belt tensioner ART. MSH71144 Guide pulley arm - Back Side - Hex screw M3x5 ART.
  • Page 13 box G box F bag A2 where I can find the BIG PARTS where I can find screws, ball bearings and stuff like that Frame rear plate ART. MSH71017 Hex screw M4x10 ART. MSH71101...
  • Page 14 box F bag A + A2 where I can find the BIG PARTS where I can find screws, ball bearings and stuff like that Do not fully thighten yet Hex screw M3x8 ART. MSH71109 Tail boom frame clamp ART. MSH71028...
  • Page 15 box G + B box F bag A2 + B1 where I can find the BIG PARTS where I can find screws, ball bearings and stuff like that X carbon frame Frame central plate ART. MSH71018 ART. MSH71157 Hex screw M3x8 ART.
  • Page 16 box A where I can find the BIG PARTS where I can find screws, ball bearings and stuff like that Hex screw M3x6 ART. MSH71108 Oneway top Ball bearing 17x23x4 ART. MSH71146 PRE-ASSEMBLED Oneway bearing Oneway hub Oneway shaft...
  • Page 17 box A where I can find the BIG PARTS where I can find screws, ball bearings and stuff like that PRE-ASSEMBLED Main pulley V2 ART.MSH71149 Hex screw M3x6 ART. MSH71108 tighten untill completely seated tighten 1/8 turn...
  • Page 18 box A where I can find the BIG PARTS where I can find screws, ball bearings and stuff like that Hex screw M3x6 ART. MSH71108 tighten untill completely seated tighten 1/8 turn Autorotation pulley ART.MSH71150 PRE-ASSEMBLED Autorotation pulley support...
  • Page 19 box F bag A2 where I can find the BIG PARTS where I can find screws, ball bearings and stuff like that Short dimension Main shaft hollow V2 ART.MSH71151 M5 Nut ART. MSH71098 Hex screw M5x25 ART. MSH71118...
  • Page 20 box A + box B box F bag A2 where I can find the BIG PARTS where I can find screws, ball bearings and stuff like that Apply grease on thrust bearing Ball bearing Thrust bearing 12x24x6 12x26x9 Internal hole SMALLER ART.
  • Page 21 box F bag A2 where I can find the BIG PARTS where I can find screws, ball bearings and stuff like that Main shaft locking ring ART. MSH71025 Hex screw M3x10 ART. MSH71114...
