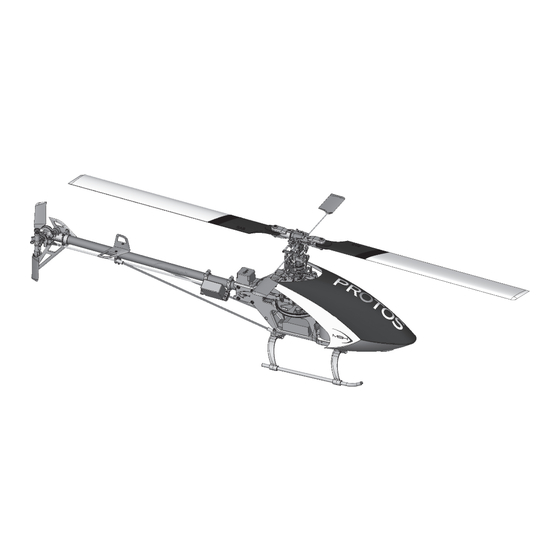

Protos RC Helicopter Instruction Manual
  1. Manuals
  2. Brands
  3. Protos Manuals
  4. Toy
  5. RC Helicopter
  6. Instruction manual

Protos RC Helicopter Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
RC Helicopter
Instructions Manual
Main rotor diameter : 965mm
Tail rotor diameter : 192mm
Lenght without main blades : 892mm
Lenght with main blades : 1122mm
Main blades lenght : 425mm
Overall height : 282mm
Tail rotor - Main rotor ratio : 4,65
Main pulley : 93T
Weight ready to y with 6sLipo : 1500g

Advertisement

loading
Need help?

Need help?

Do you have a question about the RC Helicopter and is the answer not in the manual?

Questions and answers

Related Manuals for Protos RC Helicopter

Summary of Contents for Protos RC Helicopter

  • Page 1 RC Helicopter Instructions Manual Main rotor diameter : 965mm Tail rotor diameter : 192mm Lenght without main blades : 892mm Lenght with main blades : 1122mm Main blades lenght : 425mm Overall height : 282mm Tail rotor - Main rotor ratio : 4,65...
  • Page 2 RC Helicopter Instructions Manual Index Page Content Main Frame Assembly 8-17 Head Assembly 18-26 Tail Assembly Motor Installation 27-29 Battery, ESC and Canopy Installation Belt Tensioning Diagram...
  • Page 3 BAG-A Tips/Instructions Hex screw M2.5x5 only on lower servo frame. Hex Screw M2x10 MSH 50099 Hex Screw M2x10 MSH 50099 Hex Screw M2.5x5 MSH 50101 Ball Screw M2x4.8 MSH 50007 BB 8x16x5 MSH 50034 M2 MSH 50123 MSH 50081 Servo Adapter MSH 50086 Ball Screw 4.5x10.5...

  • Page 4: Guide Pulley

    BAG-B Guide Pulley Spacer 3x5x0.6 Guide Pulley Spacer MSH 50018 3x5x0.6 MSH 50018 BB 3x8x3 MSH 50033 Pin 3x14 MSH 50059 Guide Pulley MSH 50091 Pin 3x14 MSH 50059...
  • Page 5 Attention BAG-B Hex Screw M2.5x6 MSH 50102 Hex Screw M2.5x8 MSH 50103 Washer 2.6x6.5x1.5 MSH 50146 Hex Screw M2.5x6 MSH 50102 Motor Mount MSH 50028 Washer 2.6x6.5x1.5 MSH 50146 Hex Screw M2.5x8 MSH 50103 CAUTION Washer 2.6x6.5x1.5 MSH 50146 Use Thread lock on every screw metal/metal such as screws that keep the servo frame in place.
  • Page 6 BAG-B M2.5 Nylon Nut MSH 50124 Hex Screw M2.5x16 MSH 50106 Main Frame L MSH 50070 Main Frame R Self Tapping MSH 50066 Screw Hex Screw M2.5x6 MSH 50118 Hex Screw 2.5x16 MSH 50102 Hex Screw M2.5x6 MSH 50106 MSH 50102 Washer 2.6x6.5x1.5 MSH 50146 Self Tapping Screw...
  • Page 7 BAG-B Tips/Instructions Slide skid in both struts until "clicks" in position. Both struts should "click". Hex Screw M2.5x10 MSH 50104 Hex Screw M2.5x16 MSH 50106 Nylon Nut M2.5 MSH 50124 Hex Screw M2.5x16 Hex Screw MSH 50106 M2.5x10 MSH 50104 MSH 50087 MSH 50089 Nylon Nut...
  • Page 8 BAG-B Tips/Instructions Use thread lock on grub screw M2.5x12 on the side that goes in the servo frame. Grub screw can be screwed in by hand and tightened with MSH 50063 (Canopy post) Grub Screw using the two flat surfaces. M2.5x12 MSH 50115 Hex Screw...
  • Page 9 BAG-C Tips/Instructions Belt from box Make sure hex screw M3x8 is fully tightened on bottom of main shaft than pulling main shaft gently lock collar in position. Main shaft should not have any vertical play. Hex Screw Hole nearer to side goes on top. M2x6 MSH 50098 Very Important !!
  • Page 10 Tips/Instructions Use Thread lock on balls and screw M2x10. Ball M2x2.8 Hex Screw MSH 50009 M2x10 MSH 50099 BB 2x5x2.5 MSH 50039 Spacer 2x3x2.5 MSH 50021 BAG-C Hex Screw M2x10 MSH 50099 MSH 50024 Ball Screw M2x2.8 MSH 50009...
  • Page 11 Tips/Instructions Length of rods connecting servos to BAG-C swashplate is correct if using 9650 or 3150 fut servo other servos might need adjustment. Rod D 42.5mm MSH 50046 Uniball Hand L MSH 50092 Rod D 42.5mm 3150 MSH 50046 9650 NOTE: User to have 3 sets of: Fut 3150,9650 and 3no's MSH 50046...
  • Page 12 BAG-D CAUTION Do not over tight screws and balls on plastic.Just 1/8 turn after completely BB 2x5x2.5 seated. Flanged Ball Screw MSH 50041 M2x4.8 MSH 50007 MSH 50084 Hex Screw M2x10 MSH 50099 Washout Pin Ball Screw 2x12 M2x4.8 MSH 50058 MSH 50007 MSH 50037 2x12...
  • Page 14 Tips/Instructions BAG-D MSH 50027 Apply Thread lock on hex screw M2.5x5 and outside BB 2.5x6x2.5. Hex Screw M2.5x5 MSH 50101 Hex Screw M2.5x5 MSH 50101 MSH 50085 BB 2.5x6x2.5 Flanged MSH 50093 BB 2x5x2.5 Flanged MSH 50091 CAUTION While tightening screw M2.5x5 to flybar carrier please use two Allen keys in counter action with flybar carrier at 90 degrees with main Hub.
  • Page 15 BAG-D MSH 50026 Grub Screw Hex Screw M3x3 M2x6 Hex Screw MSH 50117 MSH 50098 M2x6 MSH 50098 Uniball Hand S Grub Screw MSH 50036 M3x3 MSH 50117 Rod A 16.4 mm MSH 50048 Rod A 16.4mm NOTE: MSH 50048 User to have 2 sets of: MSH 50008 MSH 50036 and 2no's MSH 50048...
  • Page 16 BAG-D MSH 50088 Hex Screw M2x6 MSH 50098 Grub Screw Grub Screw M3x3 M3x3 MSH 50117 MSH 50117 Paddle weight MSH 50062 Brass 2.4x 5mm Hex Screw M2x6 MSH 50098...

  • Page 17: M2X10 Msh

    BAG-D Ball Screw M2x4.8 MSH 50007 BB 2x5x2.5 Flanged MSH 50041 Hex Screw Hex Screw M2x10 M2x10 Ball Screw MSH 50099 MSH 50099 M2x4.8 MSH 50007 MSH 50082 MSH 50083 Washer BB 5x10x4 5x7.5x0.2 MSH 50034 MSH 50135 Thrust BB 5x10x4 MSH 50042 BAG-D Washer...
  • Page 18 Tips/Instructions Use thread lock on screws M3x8. Hex Screw Thrust bearings flange with bigger M3x8 hole inward, flange with smaller hole MSH 50110 outward. Washer 3.1x8x1 MSH 50122 Spindle Spacer MSH 50011 Oring 5.23x2.62 MSH 50059 BAG-D Spindle Spacer MSH 50011 Washer 3.1x8x1 MSH 50122...
  • Page 19 BAG-D Tips/Instructions Use threadlock on M3x14 screw. Uniball Hand S 1 mm NOTE: MSH 50036 Rod B User to have 2 sets of: MSH 50032 Hex Screw M3x14 MSH 50113 NOTE: Rod B User to have 2 sets of: MSH 50036 12 mm MSH 50049 Uniball Hands...

  • Page 20: Guide Pulley

    BAG-E BB 3x8x3 MSH 50033 Pin 3x14 Guide Pulley MSH 50059 MSH 50091 Pin 3x14 MSH 50059 Guide Pulley Assembly BAG-E Self Tapping Screw 2.2x9.5 MSH 50118 MSH 50064 Self Tapping Screw 2.2x9.5 MSH 50118...
  • Page 21 Tips/Instructions Hex Screw Do not fully tighten screws M2.5x12 yet. M2.5x12 MSH 50105 MSH 50074 BAG-E Hex Screw M2.5x12 MSH 50105 Important !! When sliding boom assembly is in position make sure that the hole on the rear is facing left when looking from behind. Nylon Nut M2.5 MSH 50124...
  • Page 22 Tips/Instructions BAG-F Do not over tight guide pulley screw, check that it turns freely after tightening the screw. Hex Screw M2.5x20 MSH 50107 Hex Screw M2.5x16 MSH 50106 1.5x12 Washer MSH 50144 5x7.5x0.2 MSH 50135 Nylon Nut M2.5 MSH 50124 Washer 5x7.5x0.2 Nylon Nut...
  • Page 23 CAUTION MSH 50061 Tail pitch plate MSH 50099, must screw in to slide shaft MSH 50061 perfectly squared. MSH 50095 MSH 50093 MSH 50094 BB 7x11x3 MSH 50036 BAG-F 1.5x8 MSH 50057 1.5x8 MSH 50057...
  • Page 24 BAG-F Tips/Instructions Do not full tight tail pitch lever screw, just screw it until fully seated. Tail Pitch MSH 50077 Lever Screw M2.5x5 MSH 50100 BB 3x6x2.5 MSH 50037 Ball Screw M2x4.8 MSH 50007 Pitch Tail Pitch Lever Bush Lever Screw 2.5x3x8.6 M2.5x5 MSH 50100...
  • Page 25 Tips/Instructions Make sure BB 3x8x4 is completely seated in tail blade holder. Ball Screw M2x4.8 MSH 50007 MSH 50076 BAG-F BB 3x8x4 MSH 50035 Hex Screw M3x12 MSH 50111 Hex Screw Ball Screw M3x12 MSH 50111 M2x4.8 MSH 50007 BAG-F Grub Screw M3x3 MSH 50117...
  • Page 26 BAG-F Hex Screw M3x12 MSH 50111 Hex Screw M3x12 MSH 50111 Tips/Instructions Apply thread lock to M3x12 screws. BAG-F Nylon Nut M2.5 MSH 50124 Hex Screw M2.5x16 MSH 50106 Nylon Nut M2.5 MSH 50124 Hex Screw M2.5x16 MSH 50106 Tail Blades MSH 50050 (Contained in Bag L)
  • Page 27 BAG-G Tips/Instructions MSH 50065 Glue part MSH 50065 with slow curing epoxy glue. Tail Boom braces 343 mm MSH 50050 (Containded in bag L) MSH 50065 BAG-G Hex Screw M2.5x25 MSH 50108 MSH 50068 MSH 50063 MSH 50067 Nylon Nut M2.5 3x5 MSH 50124 Hex Screw...
  • Page 28 Rod E 35mm BAG-G Tips/Instructions MSH 50045 Glue rod E with slow curing epoxy make sure 1mm not threaded part of rod E is protruding. Control Rod 320 mm MSH 50051 (Contained in Bag L) Rod E 35mm MSH 50045 MSH 50092 Rod E 35mm MSH 50045...
  • Page 29 Tips/Instructions Apply thread lock to M3x8 hex screw. Hex Screw M3x8 MSH 50110 Washer 3.1x8x1 MSH 50122 Hex Screw M3x8 MSH 50110 Washer 3.1x8x1 MSH 50122 MSH 50126...
  • Page 30 Tips/Instructions Grub Screw Apply thread lock to M3x5 grub screw. M3x3 MSH 50117 MSH 50006 Hex Grub Screw M3x3 MSH 50117 CAUTION Make sure there is about 1mm gap between bottom of motor adapter (MSH 50006) and motor mount (MSH 50028) when tightened in position.
  • Page 31 Washer 3.1x10x1 MSH 50121 MSH 50052 Washer 3.1x10x1 MSH 50121 Free spin Motor Pulley 18T MSH 50121 While inserting make sure that the pinion spins freely clockwise looking from above.
  • Page 32 Tips/Instructions Use O ring MSH 50053 to secure battery (not provided in the kit) in place. Use O ring MSH 50060 to secure ESC (not provided in the kit) in place.
  • Page 33 Belt Tension Adjustment Pressing the belt moderately, it should move 2-3 mm. Test tension as indicated in the picture.
  • Page 34 Spare Code Spare Description Part Code Part Description Part Qty MSH51001 Metal flybar control arm...
  • Page 35 Spare Code Spare Description Part Code Part Description Part Qty...
  • Page 36 Spare Code Spare Description Part Code Part Description Part Qty...
  • Page 37 Spare Code Spare Description Part Code Part Description Part Qty 3x5x0.6...
  • Page 38 Spare Code Spare Description Part Code Part Description Part Qty...
  • Page 39 Spare Code Spare Description Part Code Part Description Part Qty...
  • Page 40 Spare Code Spare Description Part Code Part Description Part Qty...
  • Page 41 Spare Code Spare Description Part Code Part Description Part Qty...
