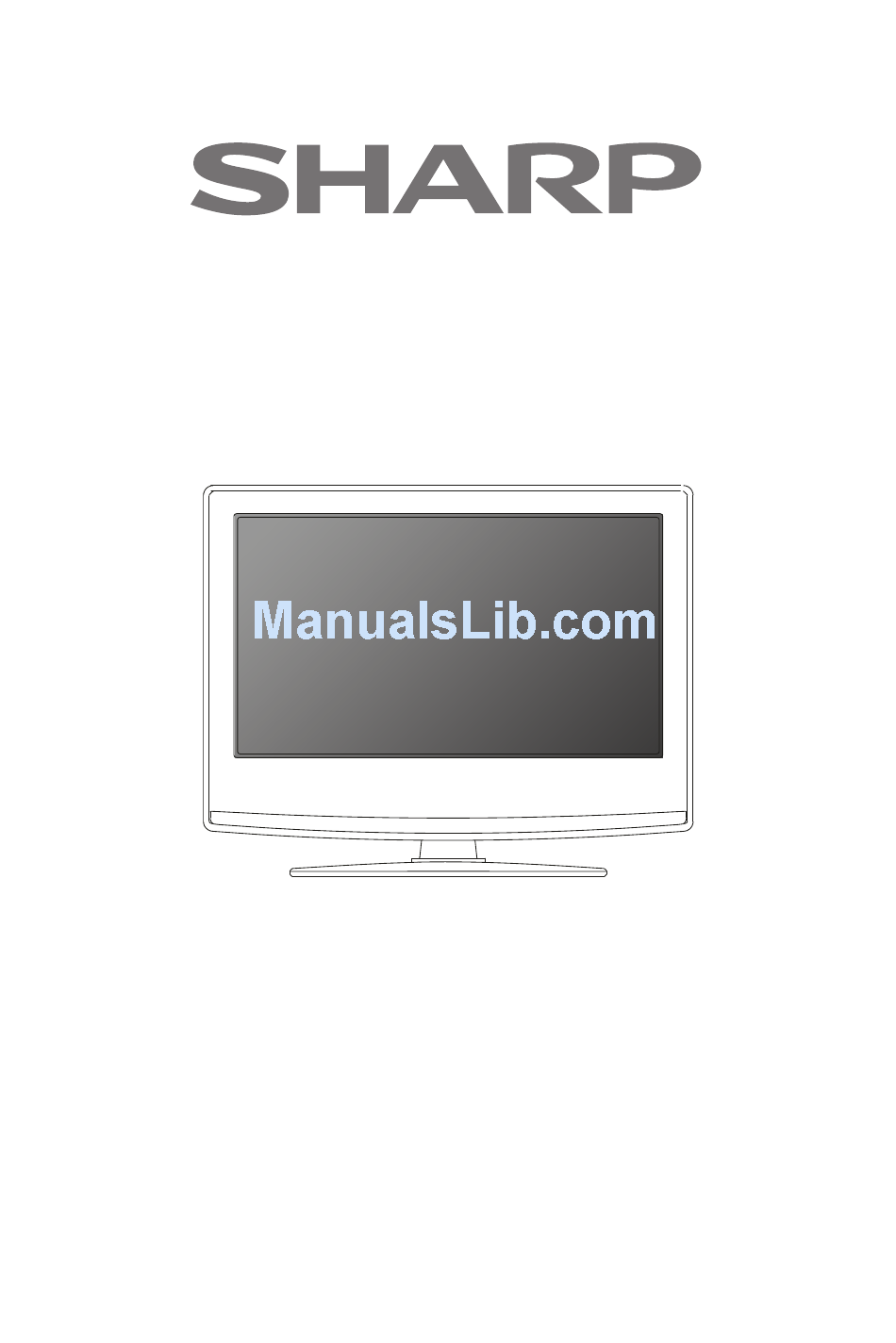

LED TV with Freeview HD, Saorview & USB PVR
User Guide
Model No
LC-32CHF5111K
LC-32CFF5111K
LC-43CFF5111K
LC-43CFF5112K
LC-49CFF5001K

Advertisement

loading

  Related Manuals for Sharp LC-32CHF5111K

  Summary of Contents for Sharp LC-32CHF5111K

  • Page 1 LED TV with Freeview HD, Saorview & USB PVR User Guide Model No LC-32CHF5111K LC-32CFF5111K LC-43CFF5111K LC-43CFF5112K LC-49CFF5001K...
  • Page 2: Important Safety Instructions

    WARNING: Never place a television set on an Important safety instruction unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: • Use cabinets or stands recommended by the manufacturer of the television set.
  • Page 3: Important Safety Instructions

    2. Do not display the fi xed image for extended periods Important safety instruction of time. 3. Turn the power off when not in use. Examples of images that are more likely to cause “screen burn” are as follows (this is not an exhaustive list): •...
  • Page 4 Services LTD. © DTV Services Ltd. SAORVIEW SAORVIEW is a registered trademark owned by RTÉ. CE Statement: Hereby, Universal Media Corporation l.t.d. declares that this LED TV is in compliance with the essential requirements and other relevant provisions of Dirrective 1999/5/EC. http://www.sharp.eu/av/documnts-of-conformity...
  • Page 5: Table Of Contents

    CONTENTS Manufacturers guarantee information ........3 Important safety instructions .
  • Page 6: What Is Included In The Box

    What is included in the box WHAT IS INCLUDED IN THE BOX Accessories Included with this TV are the following accessories. 1 x User guide 1 x Remote control and 2 x AAA batteries User guide 1 x Mini composite / AV cable 1 x Quick start guide Quick start guide...
  • Page 7: Attaching/Detaching The Stand

    Attaching/detaching the stand ATTACHING THE STAND Attaching the stand/feet To complete the stand/feet installation you will require a cross head screw driver. Screws that are included. (fi g.1) Place the TV set on a fl at and TV panel must be facing downwards. clean surface with the panel facing downwards to avoid damage, then fi...
  • Page 8: Securing The Tv To A Wall/Wall Mounting

    Securing the TV to a wall/wall mounting SECURING THE TV TO A WALL Securing the TV to a wall with anti-tip straps For maximum security in the home, when using a TV with its stand, anti-tip straps should be fi tted. These are available from supermarket websites and other websites and are an easy, inexpensive and effective way of ensuring your TV stays safely upright.
  • Page 9: Remote Control

    Remote control REMOTE CONTROL For models with integrated DVD players. For models with PVR Function. For models with USB Playback. For models with 3D functions. STANDBY - Switch on TV when in standby or vice versa. MUTE - Mute the sound or vice versa. NUMBER BUTTONS - 0–9 to select a TV channel directly.
  • Page 10: Tv Buttons And Input Source Menu

    TV Buttons and Input Source Menu TV BUTTONS AND INPUT SOURCE MENU This information is for models without built in DVD players Volume up and menu right Volume down and menu left Programme/channel up and menu up Programme/channel down and menu down Displays menu/OSD Displays the ‘Input Source’...
  • Page 11: Connections

    Connections CONNECTIONS Digital Audio E A R P HO NE Output Earphones Earphone input RF in RF / TV aerial input LAN* Network connection HDMI 3 HDMI input (MHL Port) Digital audio Digital optical audio output USB x 2 USB port SCART SCART input AV in...
  • Page 12 Connections CONNECTIONS Note: Connecting cables are shown for example only and may not be included. Please check ‘What Is Included In The Box’ page. Connecting to a device with Composite AV/Video output TV Source should be set to Composite/AV L (white) R (red) Mini Video...
  • Page 13: Connections

    Connections CONNECTIONS Connecting to a device with Component/YPbPr output If you are supplied with a cable from the device which has red, green, blue, red & white connectors you must connect via Component (for picture) and by phono cable (for sound). TV source should be set to Component/YPbPr Y (green) PB (blue)
  • Page 14: Tv Menu Operation

    TV Menu Operation PICTURE MENU To access this menu, press [MENU] button on the remote control. To select a sub menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons. To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button. Picture Mode - Choose from the following presets: Dynamic...
  • Page 15 TV Menu Operation PICTURE MENU To access this menu, press [MENU] button on the remote control. To select a sub menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons. To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button. Aspect Ratio - Within the UK the picture format varies depending on the channel/broadcast.
  • Page 16: Sound Menu

    TV Menu Operation SOUND MENU To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons.
  • Page 17: Channel Menu

    TV Menu Operation CHANNEL MENU To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons.
  • Page 18: Lock Menu

    TV Menu Operation LOCK MENU To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons.
  • Page 19: Time Menu

    TV Menu Operation TIME MENU To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons.
  • Page 20: Network Confi Guration

    Network Confi guration NETWORK CONFIGURATION To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons.
  • Page 21: Settings Menu

    TV Menu Operation SETTINGS MENU Language - Allows you to change the language of the menu. Audio Language - Select your preferred primary audio language. Audio Language 2 - Select your preferred secondary audio language. Subtitle Language - Select your preferred primary subtitle language. Subtitle Language 2 - Select your preferred secondary subtitle language.
  • Page 22 7 Day TV Guide and Channel List 7 DAY TV GUIDE TV Guide is available in Saorview/Freeview TV mode. It provides information about forthcoming programmes (where supported by the Saorview/Freeview channel). You can view the start and end time of all programmes and on all channels for the next 7 days and set reminders. 1) Press [TV GUIDE] on the remote control, the following 7 Day TV Guide will appear.
  • Page 23 USB Record - Freeview/Saorview USB RECORD - FREEVIEW/SAORVIEW MODE Built into this television is a USB record facility. This function is available in Freeview/Saorview mode when used in conjunction with a compatible USB memory stick or USB hard drive. The benefi ts of this are as follows: •...
  • Page 24 USB Mode/Media Player USB MODE/MEDIA PLAYER USB mode offers playback of various different types of content that you have saved on your USB Memory Stick. On switching to USB source the below menu screen will appear. The content will be divided into Photo, Music, Movie and Text based on fi...
  • Page 25: General Information

    General Information FREQUENTLY ASKED QUESTIONS General I would like to have louder 1) Use the 3.5mm headphone output and a 3.5mm to phono cable (available sound by connecting additional separately) to connect to an amplifi er/surround sound system. Please note this speakers.
  • Page 26: General Information

    General Information FREQUENTLY ASKED QUESTIONS USB Mode I have inserted a USB Memory Ensure the USB Memory Key is formatted to type FAT32. Key, but the TV does not recognise it. USB Mode Using a USB portable hard drive If you wish to use a portable hard drive larger than 32GB, please note that it must be larger than 32GB.
  • Page 27 General Information TECHNICAL SPECIFICATION Product fi che Trademark Sharp Model ID LC-32CHF5111K Energy effi ciency class Visible screen size (diagonal) 81 cm / 32 inches On-mode average power consumption 31.0 W Annual energy consumption *1 45 kWh Standby power consumption *2 <0.50 W...
  • Page 28: Technical Specifi Cations

    General Information TECHNICAL SPECIFICATION Product fi che Trademark Sharp Model ID LC-32CFF5111K Energy effi ciency class Visible screen size (diagonal) 81 cm / 32 inches On-mode average power consumption 31.0 W Annual energy consumption *1 45 kWh Standby power consumption *2 <0.50 W...
  • Page 29 General Information TECHNICAL SPECIFICATION Product fi che Trademark Sharp Model ID LC-43CFF5111K Energy effi ciency class Visible screen size (diagonal) 109 cm / 43 inches On-mode average power consumption 41.0 W Annual energy consumption *1 60 kWh Standby power consumption *2 <0.50 W...
  • Page 30 General Information TECHNICAL SPECIFICATION Product fi che Trademark Sharp Model ID LC-43CFF5112K Energy effi ciency class Visible screen size (diagonal) 109 cm / 43 inches On-mode average power consumption 41.0 W Annual energy consumption *1 60 kWh Standby power consumption *2 <0.50 W...
  • Page 31 General Information TECHNICAL SPECIFICATION Product fi che Trademark Sharp Model ID LC-49CFF5001K Energy effi ciency class Visible screen size (diagonal) 123 cm / 49 inches On-mode average power consumption 67.0 W Annual energy consumption *1 98 kWh Standby power consumption *2 <0.50 W...
  • Page 32 General Information TECHNICAL SPECIFICATION Compatible fi les in USB Mode Codec Remark Media File Ext. Video Audio Max Resolution: 1920x1080 .mpg MPEG-1, MPEG-2 Max Data Rate: 40 Mbps Xvid, MJPEG .avi MPEG-4 SP/ASP, H.263/H.264 MPEG-2, H.264, HEVC MP3, AAC, Max Resolution: 1920×1080 AC3, PCM, MOVIE MPEG-4 SP/ASP,...
  • Page 33 UMC Poland sp. z o.o. Ostaszewo 57B, 87-148 Łysomice, Poland Assembled in Europe www.sharp.eu SHA/MAN/0100...
