Controller

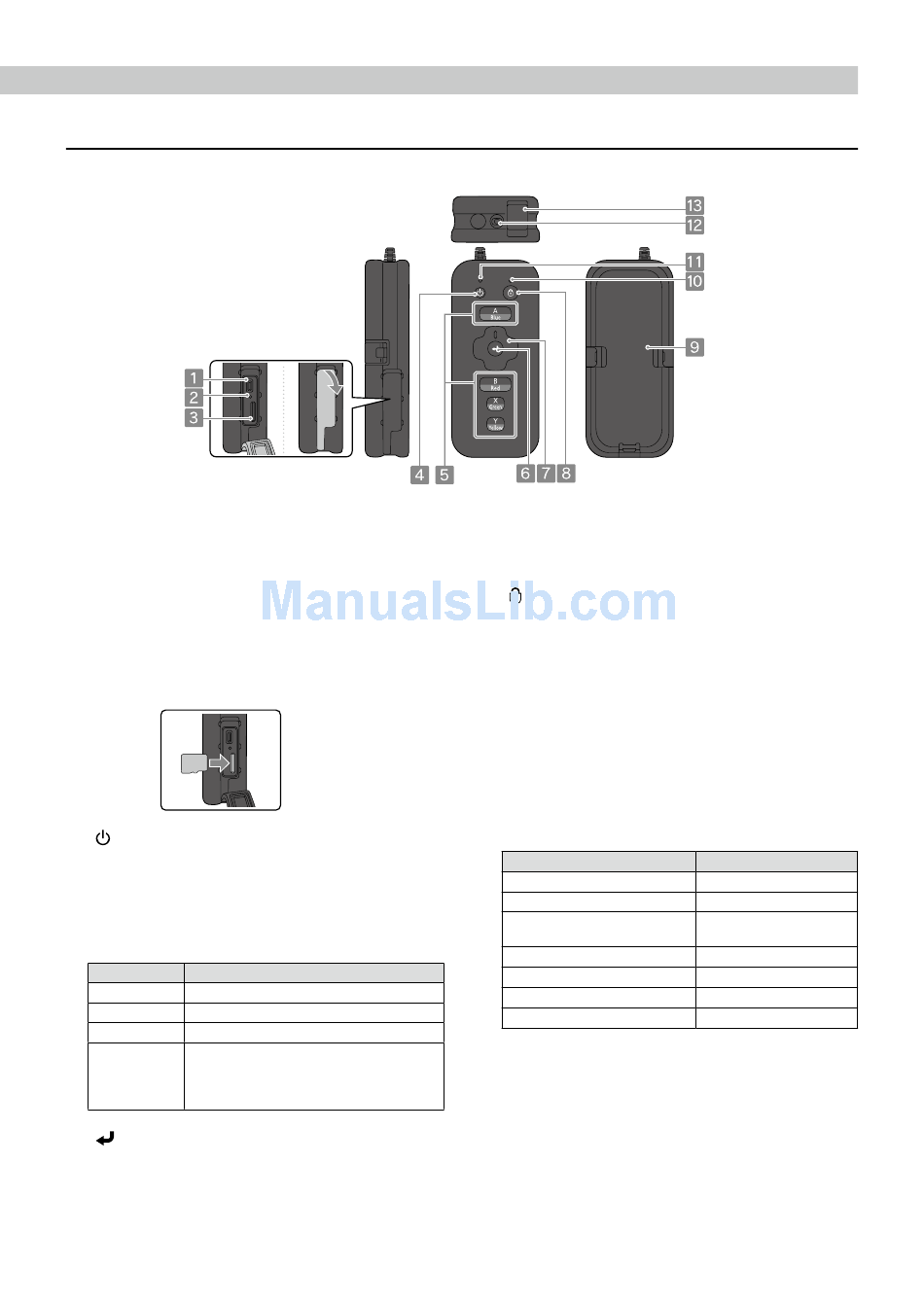

The illustrations show the controller when it has been removed from the controller holder.
micro USB port
A
*
You can connect a commercially available USB cable to connect
to a computer.
Reset button
B
*
If the product stops working, press this button to force the
product to turn off.
microSD card slot
*
C
You can insert a commercially available microSD card.
[
] Power button
D
Turns the product on or off.
➡ "Turning On and Off" p. 10
ABXY keys
E
The key functions vary depending on the application being
used. The following shows the default settings.
Key
A (Blue) key
Displays the previous screen.
B (Red) key
Displays the Home screen.
X (Green) key
Displays available menus for the current screen.
Y (Yellow) key
Switches the operation performed when you press the
cross-key between adjusting the volume, adjusting the
brightness, and switching between 2D/3D mode.
[
] Enter key
F
Selects or confirms the item when making settings or operating
an application.
* You cannot use the feature when the controller is in the controller holder.
Function
Cross-key
G
Highlights items and moves the cursor when making settings or
operating an application.
[
] Key lock
H
Disables controller operations (Key lock mode) to prevent ac-
cidental operations.
➡ "Disabling controller operations (Key lock)" p. 10
Battery cover
*
I
Remove when replacing the battery.
Key lock indicator
J
Lit blue when the key lock is on.
Power indicator
K
You can check the status of the product according to the color
and lit status of the indicator.
Indicator Status
Light blue
Flashing light blue (one second intervals)
Flashing light blue (once every three
seconds)
Blue
Flashing red
Flashing red three times
Flashing red and blue alternately
Earphone socket
L
Connects the supplied mono earphones with mic.
AC adapter port
M
Connects the AC adapter to charge the product.
➡ "Charging the Battery" p. 8
Product Status
Operating
Starting up / Shutting down
Charging
Sleep mode
Battery running low/Startup error
Insufficient battery to start up
Battery replacement mode
