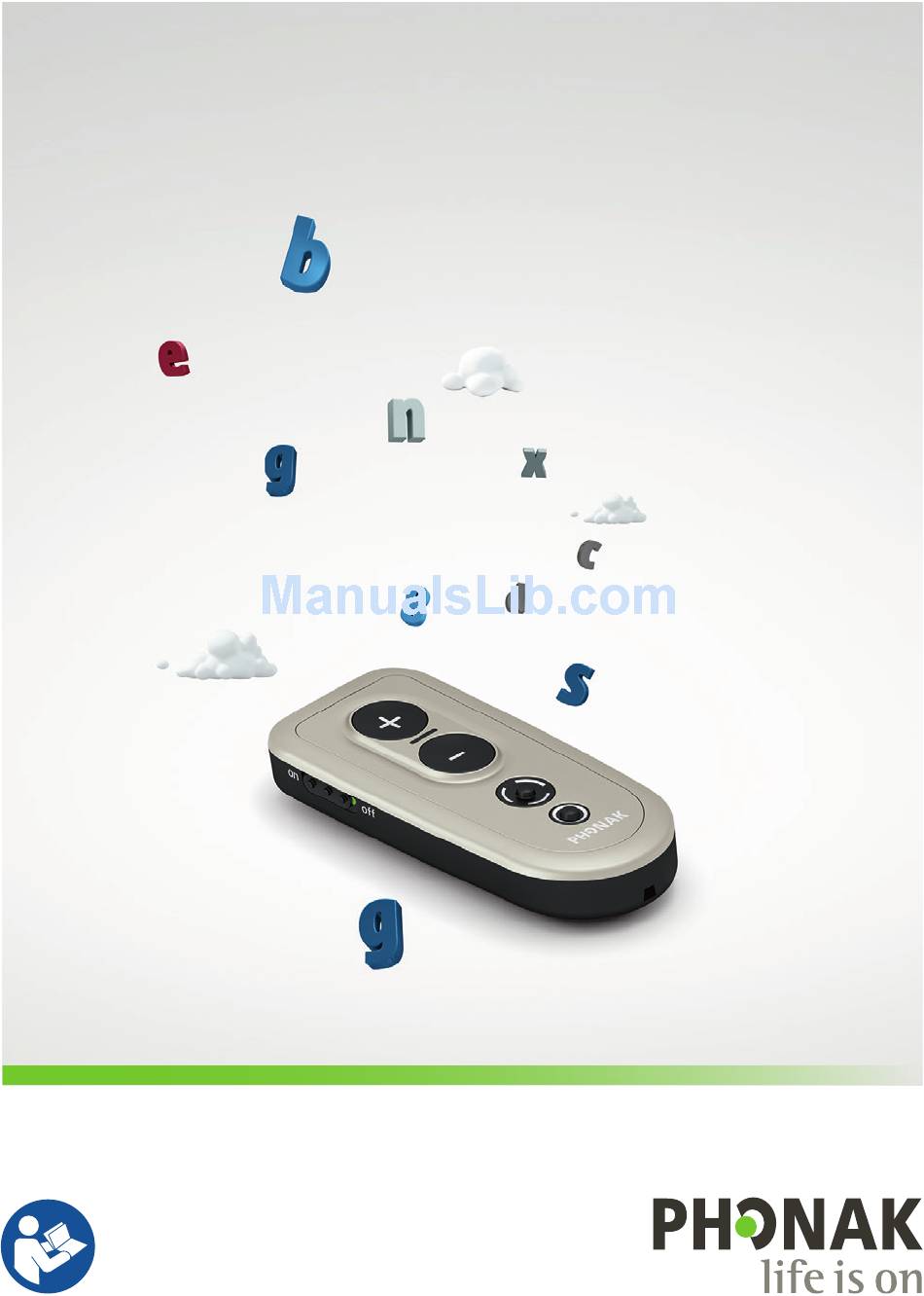

- Page 1 Phonak PilotOne II User Guide...
-
Page 2: Table Of Contents
Contents 1. Welcome 2. Description 3. Using Phonak PilotOne II 3.1 Inserting a new battery 3.2 Switching On/Off 3.3 Holding PilotOne II 3.4 Changing hearing aid volume 3.5 Changing hearing aid program 3.6 Using the “Home” button 3.7 Understanding the indicator light 4. - Page 3 6. Service and Warranty 6.1 Local warranty 6.2 International warranty 6.3 Warranty limitation 7. Information and explanation of symbols 8. Important safety information...
-
Page 4: Welcome
1. Welcome Your new PilotOne II is a quality product developed by Phonak, one of the world�s leading companies in hearing technology. Read the user instructions thoroughly in order to benefit from all the possibilities your hearing system offers. For further questions, please consult your hearing care professional. -
Page 5: Description

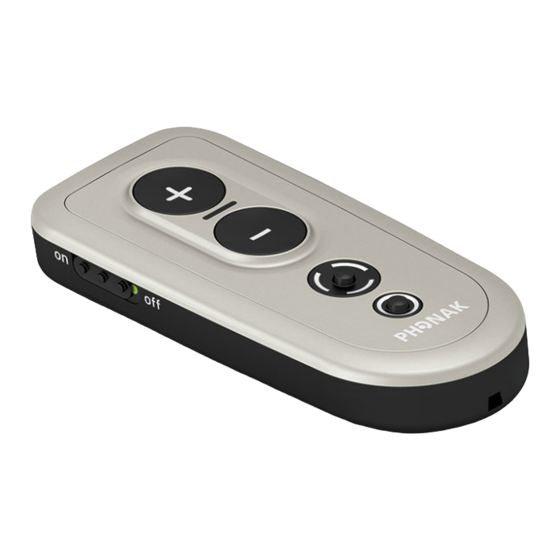

2. Description The intended use of the PilotOne II remote control is to enable easy changes of your hearing aid programs and volume. Volume up On / Off slider Indicator light Volume down Battery door Program change “Home” button Eyelet for keyring... -
Page 6: Using Phonak Pilotone
3. Using Phonak PilotOne II 3.1 Inserting a new battery Slide battery cover in direction of the arrow to remove it. Insert new battery with correct +/– position (Alkaline 1.5 V, type AAA, LR03 or AM4). Secure battery cover by sliding it back into place. -
Page 7: Switching On/Off
3.2 Switching On / Off Use the slider to switch on or off. 3.3 Holding PilotOne II Hold PilotOne II so that the buttons are facing you. Maximum operating distance between the hearing aids and PilotOne II is 1 meter / 40". -
Page 8: Changing Hearing Aid Volume
3. Using Phonak PilotOne II 3.4 Changing hearing aid volume Press “+” to increase volume Press “–” to decrease volume If configured by your hearing care professional J Press and hold the volume down button (2 sec) to mute your hearing aids. -
Page 9: Using The "Home" Button
Hearing aids will beep to confirm chosen selection. Changes are applied to both hearing aids at the same time. For information about your personal settings, ask your hearing care professional to print your PilotOne II instructions. -
Page 10: Understanding The Indicator Light
The indicator light remains on as long as a button is pressed. If the indicator does not blink when a button is pressed, PilotOne II needs to be programmed first by your hearing care professional. The indicator light will be either green or red depending on the battery status. -
Page 11: Troubleshooting
J Make sure your hearing aids are switched on and worn correctly J Make sure PilotOne II is switched on J Hold the PilotOne II closer to your hearing aids J If indicator light does not blink or blinks red while pressing a button, replace the battery... -
Page 12: Compliance Information
5. Compliance information Declaration of conformity Hereby Phonak AG declares that this Phonak product is in compliance with the essential requirements of the Medical Devices Directive 93/42/EEC as well as the Radio and Telecommunications Terminal Equipment Directive 1999/5/EC. The full text of the declaration of conformity... - Page 13 2) this device must accept any interference received, including interference that may cause undesired operation. Notice 2: Changes or modifications made to this PilotOne II not expressly approved by Phonak may void the FCC authorization to operate this device. Notice 3:...
- Page 14 5. Compliance information However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: J Reorient or relocate the receiving antenna.
-
Page 15: Service And Warranty
6.2 International warranty Phonak offers a one year limited international warranty, valid as of the date of purchase. This limited warranty covers manufacturing and material defects. The warranty only comes into force if proof of purchase is shown. -
Page 16: Warranty Limitation
6. Service and Warranty 6.3 Warranty limitation This warranty does not cover damage from improper handling or care, exposure to chemicals, immersion in water or undue stress. Damage caused by third parties or non-authorized service centers renders the warranty null and void. Serial number: Date of purchase: Authorized hearing care professional (stamp/signature):... -
Page 17: Information And Explanation Of Symbols
7. Information and explanation of symbols With the CE symbol, Phonak AG confirms that this Phonak product meets the requirements of the Medical Devices Directive 93/42/EEC as well as the R&TTE Directive 1999/5/EC on radio and telecommunications equipment. This symbol indicates that the products... - Page 18 7. Information and explanation of symbols Indicates the medical device manufacturer, as defined in EU Directive 93/42/EEC. This symbol indicates that it is important for the user to pay attention to the relevant warning notices in these user guides. Important information for handling and product safety.
- Page 19 Temperature transport and storage: –20° to +60° Celsius (–4° to +140° Fahrenheit). Temperature operation: 0° to +40° Celsius (+32° to +104° Fahrenheit). Keep dry Humidity transportation and storage: up to 90% (non condensing). Humidity operation: <95% (non condensing). Atmospheric pressure: 200 hPA to 1500 hPA.
- Page 20 7. Information and explanation of symbols The symbol with the crossed-out garbage bin is to make you aware that this device may not be thrown away as normal household waste. Please dispose of old or unused device, at waste disposal sites intended for electronic waste, or give your device to your hearing care professional for disposal.
-
Page 21: Important Safety Information
Only use hearing aids that have been specifically programmed for you by your hearing care professional. Changes or modifications to the device that were not explicitly approved by Phonak are not permitted. Only use accessories approved by Phonak to avoid any electrical shock. - Page 22 Batteries are toxic. Do not swallow them! Keep out of reach of children and pets. If batteries are swallowed, consult your physician immediately! Remove the battery if you are not using PilotOne II for a long period of time. Always use a high quality, long-life alkaline battery as a replacement and dispose of the old one in an environmentally-friendly way.
- Page 23 The mini-USB port is to be used for programming purpose only by your hearing care professional. Do not use the device in explosive areas (flammable anesthetics, mines or industrial areas with a danger of explosions), oxygen rich environments or where electronic equipment is prohibited.
- Page 24 J Medical or dental examination with X-ray (also CT scan). J Medical examinations with MRI/NMRI scans, generating magnetic fields. Protect the PilotOne II sockets and battery slot from dirt and debris. Clean the device using a damp cloth. Never use household cleaning products (washing powder, soap, etc.) or alcohol to clean the device.
- Page 25 Keep the device at least 10 cm away from any kind of magnets. When the device is not in use, turn it off and store it safely. 3. Other important information High-powered electronic equipment, larger electronic installations and metallic structures may impair and significantly reduce the operating range.
- Page 26 Notice...
- Page 28 Phonak LLC 4520 Weaver Parkway Warrenville, IL 60555 www.phonak-us.com...
