SETUP
Ethernet and TCP/IP Settings
© 2008 Schneider Electric. All Rights Reserved.
To access the Setup web page links, click Setup on the EGX menu bar.
Action
1. From the Setup page, click Ethernet &
TCP/IP.
2. Select your frame format and media type.
Contact your network administrator if you
do not know.
3. Enter your IP address, subnet mask, and
default gateway address assigned to your
EGX by your network administrator.
4. Click Apply.
* See Table 2 on page 5 for a list of options.
NOTE: After making changes to the Ethernet parameters and clicking
Apply, the EGX will reboot.

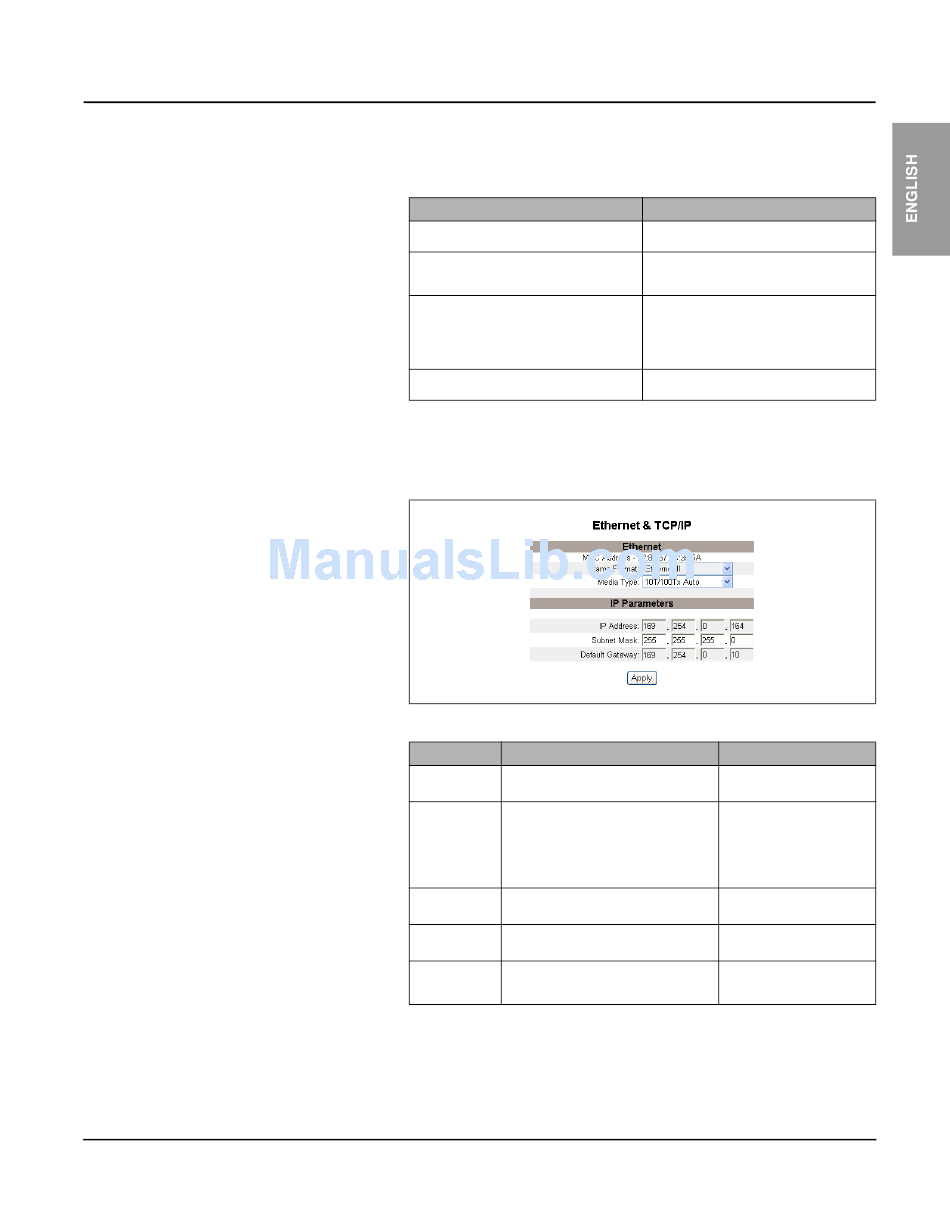

Figure 2: Ethernet & TCP/IP Page
Table 2: EGX Ethernet and TCP/IP Settings
Option Description
Frame Format Used to select the format for data sent over
an Ethernet connection.
Media Type Used to define the physical Ethernet
connection or media type.
IP Address Used to enter the static IP address of the
EGX.
Subnet Mask Used to enter the Ethernet IP subnet mask
address of your network.
Default Gateway Used to enter the gateway (router) IP
address used for wide area network (WAN)
communications.
PowerLogic™ Ethernet Gateway
Result
Opens the Ethernet & TCP/IP page.
Selects the frame format and media type.
Enters the Ethernet parameters for the EGX.
NOTE: If you enter an IP address that is used
by another device, you will be prompted to
select a new IP address. See "Duplicate IP
Address Detection" on page 6.
Updates the EGX Ethernet and TCP/IP
settings.
Setting
Ethernet II, 802.3 SNAP
Default: Ethernet II
• 10T/100Tx Auto
• 10BaseT-HD
• 10BaseT-FD
• 100BaseTX-HD
• 100BaseTX-FD
Default: 10T/100Tx Auto
0.0.0.0 to 255.255.255.255
Default: 169.254.0.10
0.0.0.0 to 255.255.255.255
Default: 255.255.0.0
0.0.0.0 to 255.255.255.255
Default: 0.0.0.0
