XENYX CONTROL1USB

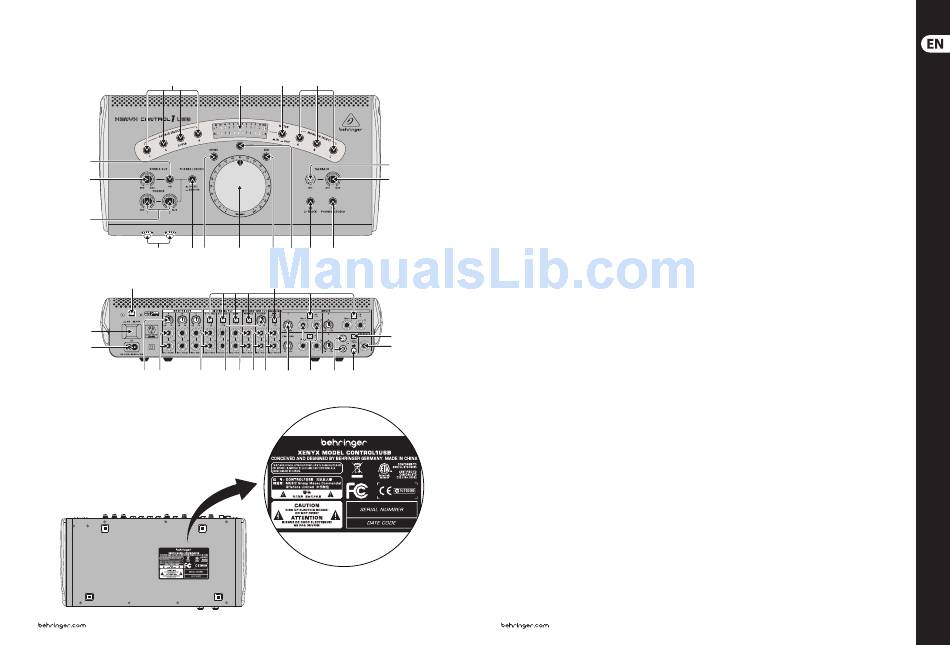

XENYX CONTROL1USB Controls
(1)
(16)
(17)
(15)
(14) (13) (12)
(18)
(34)
(33)
(32) (31) (30)
(2) (3) (4)
(5)
(6)
(10) (9) (11) (8) (7)
(19)
(24)
(23)
(20) (29) (28) (27) (21) (22) (26) (25)
15
Quick Start Guide
Step 2: Controls
(1) SOURCE SELECT buttons determine which
(EN)
input source will be routed to outputs on the
back panel.
LEVEL METERS shows the input or output signal
(2)
strength of the active connected stereo source.
METER switch determines whether the
(3)
input or output signal will be shown on the
LEVEL METERS.
(4) MONITOR SELECT activates or deactivates the
speakers connected to A, B or C outputs.
TALKBACK microphone allows a microphone
(5)
signal to be sent to the PHONES/STUDIO OUT
outputs or the RECORDING OUT outputs.
TALKBACK level knob adjusts the gain of the
(6)
TALKBACK MIC.
TO PHONES/STUDIO button sends the TALKBACK
(7)
MIC signal to the PHONES and STUDIO outputs.
TO 2-TRACK button sends the TALKBACK MIC
(8)
signal to the 2-TRACK A, B and DAW outputs.
(9) DIM switch reduces the signal going to MONITOR
A, B and C by 20 dB.
VOLUME knob adjusts the volume of signals
(10)
going to the Monitor A, B and C outputs. It does
not affect the volume of the signal going to the
RECORDING OUT, PHONES, or STUDIO OUT jacks.
MUTE switch silences the signal going to the
(11)
MONITOR A, B, and C outputs.
(12) MONO switch turns the stereo input signal into a
monophonic signal out of the MONITOR A, B and
C outputs.
PHONES/STUDIO switch changes the signal being
(13)
fed to the PHONES and STUDIO outputs between
the input sources and the MONITOR MIX INPUT.
Headphone jacks.
(14)
(15) PHONES volume adjustment knobs.
ON button turns the signal to the
(16)
STUDIO OUT jacks.
STUDIO OUT volume knob adjusts the volume of
(17)
the speakers connected to the STUDIO OUT jacks.
USB jack for connecting your CONTROL1USB to the
(18)
computer, working as a 2-in/2-out soundcard.
Level switch changes between the balanced
(19)
+4 dB professional equipment standard
and the unbalanced -10 dB consumer
equipment standard (same for 2-TRACK B,
DAW outputs, PHONES, MONITOR MIX inputs
and INPUTS 1, 2 and 3).
(20) STUDIO OUT trim knob adjusts the signal sent via
the STUDIO OUT jacks.
Trim control knob adjusts the input sensitivity
(21)
of the incoming signal by +/-10 dB (same for
INPUTS 2, 3 and 4).
INPUT jacks for connecting a balanced or
(22)
unbalanced stereo signal. If a mono signal is
plugged into the L input, it is automatically
routed to the left and right inputs (same for
INPUTS 2 and 3).
(23) TALKBACK FOOTSW input jack for connecting
remote TALKBACK mic switch. When the switch
is activated, the talkback circuit opens for the
PHONES/STUDIO OUT outputs, both PHONES
outputs and the three RECORDING OUT outputs
(2-TRACK A, B and DAW).
LINE/PHONO switch changes the input source
(24)
from (unbalanced) phono to line level.
Grounding Screw (GND) for connecting the
(25)
grounding wire from the attached phonograph.
(26) Stereo RCA inputs for connecting a phonograph
or other stereo line signal.
MONITOR MIX INPUT allows the connection of an
(27)
alternate stereo mix from the DAW.
STUDIO OUT jacks for connecting speakers in a
(28)
recording space for monitoring and talkback.
(29) PHONES output jacks for connecting a
headphone distribution amplifier.
2-TRACK output jacks for sending a balanced or
(30)
unbalanced stereo signal to an external recorder
(same for 2-TRACK B and DAW outputs).
MONITOR OUT A output jacks for connecting
(31)
powered speakers or an amplifier for passive
speakers (same for B and C).
MONITOR A trim knob adjusts the MONITOR A
(32)
output signal between the professional +4 dB
standard to the -10 dB consumer standard.
It allows the balancing of signal between the
three monitor outputs (same for B and C).
Connect the included IEC connector to this
(33)
AC socket and a suitable power source.
POWER switch turns the unit on and off. When in
(34)
the off (standby) position, the circuits are still
live. To remove power altogether, remove the
power cord from the AC mains supply.
