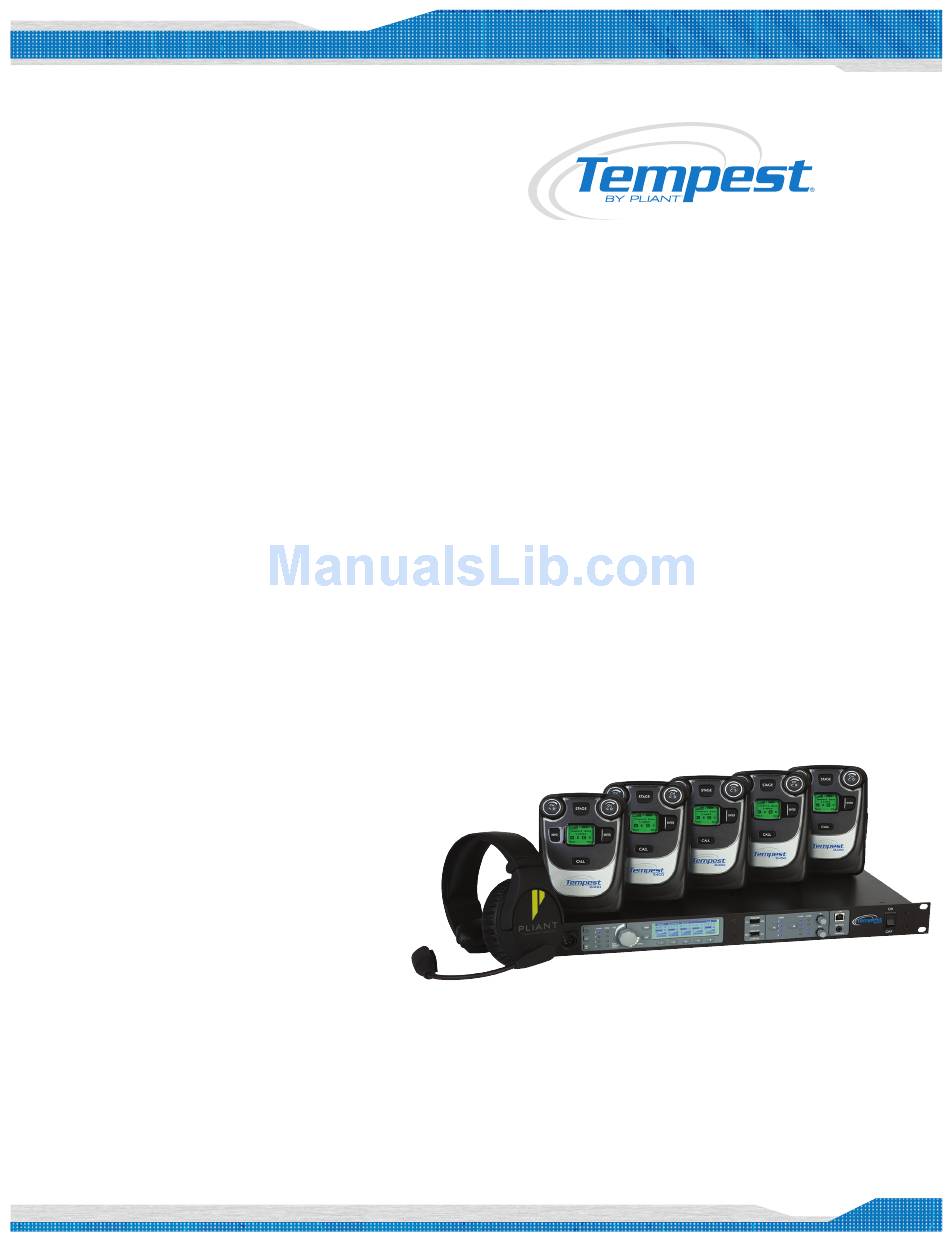

Tempest 2400 Quick Start Manual

Tempest2400
4-Channel Quick Start Guide
What's in each box:
BaseStation
• TMP-B424 BaseStation
• Power cord
• 2dBi Omni-directional Whip antenna (x2)
• 3.5mm to 3.5mm 3 conductor data pairing cable
»
Used to pair a BaseStation to the BeltStation(s)
• USB-A to USB-B cable
» Used to update BaseStation firmware
• USB-A to Mini-USB
»
Used to update BeltStation firmware
• BaseSync cable
» Used if you have more than one BaseStation
»
Improves RF performance when using multiple systems
• CD with manual, T-Desk software
BeltStation
• TMP-R424 BeltStation
• Li-Poly rechargeable battery
• 5VDC wall charger with Mini-USB connector
Remote Transceiver (optional)
• TMP-RT24 Remote Transceiver
• RJ-45 to RJ-45 CAT-5 cable
• 2dBi Omni-directional Whip antenna (x2)
• Mounting plate and screws
Directional Antenna Kit (optional)
• TMA-ANTSYS-09C Directional antenna (x2)
• Mounting brackets (x2)
• Antenna mounting bar
• "C" clamp mount
• "RP-TNC" to "N" cables (x2)
5 Bay Battery Charger (optional)
• TMA-BCHRG-05A Battery Charger
• AC cable
Note: Charge ALL BeltStation batteries prior to set-up.
What else you may need:
• Headset, one for each user
»
May be dynamic or electret microphone, with a 4-PIN XLR female
connector
• 3-PIN XLR cables to connect to external 2-Wire Intercom system
• RJ-45 cables to connect to external 4-Wire Intercom system
• RJ-45 cable to connect to PC for T-Desk LAN control
Quick Start Guide
1
