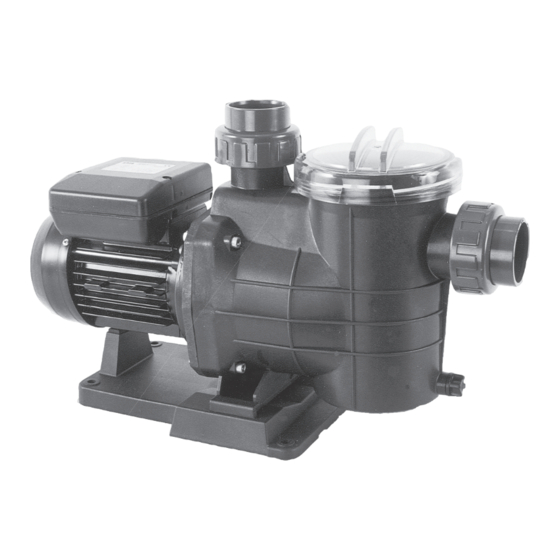

- Page 1 NEW MINIPUMP MANUAL DE INSTALACIÓN Y MANTENIMIENTO INSTALLATION AND MAINTENANCE MANUAL MANUEL D INSTALLATION D ENTRETIEN HINWEISE FÜR EINBAU WARTUNG...
-
Page 2: General Safety Instructions
ENGLISH IMPORTANT: The manual you are reading contains fundamental information regarding the safety measures to be adopted when installing and starting up. It is therefore of utmost importance that both the installer and the user read the instructions before assembling and starting up. 1. - Page 3 INSTALLATION AND ASSEMBLY WORK WARNINGS • While connecting electrical cables to the machine s motor, take care of the mechanism inside the connection box, check that no pieces of cable remain inside after closure and that the earth contact is correctly connected. Connect the motor using the electrical diagram attached to the machine.
-
Page 4: Installation And Assembly
• Before working on the machine it is advisable to follow the steps below: 1. Cut the machine voltage. 2. Block the starting-up mechanisms. 3. Check that there is no voltage in the circuits, including the auxiliaries and supplementary services. 4. - Page 5 TUBING • The tubing connection must be done stuck to the connecting pipe that is supplied along with the pump; joints from the connecting pipes with the suction and impulsion nozzles are of a screw-thread type and come with sealing joints to avoid water loss.
-
Page 6: Safety Indications
POSITIONING • The pumps are of a self-suction type even though assembly below the swimming pool or tank water level is advised to improve performance. • Should it be necessary to install the pump above the water level, the difference in height should not be more than 2 metres (see Fig. -
Page 7: Electrical Unit
ELECTRICAL UNIT • The electrical unit should have a multiple separation system with contact opening of at least 3 mm. • Connection to the mains can only be done using a rigid cable. In the event that a flexible cable is used this should have terminals to connect it to the pump motor terminals. - Page 8 HEAT PROTECTOR TABLE • For 230 V single-phase pumps use a H07 RN-F3 1,0 mm -type connection cable. • Before connecting the motor, check the necessary fuse type. • Check the correct arrangement and connection of the earth wire in the equipment installation.
-
Page 9: Start-Up Instructions
4. START-UP INSTRUCTIONS QUESTIONS PRIOR TO START-UP • Before starting up the pump, carry out the following operations: 1. Open the pre-filter cover (See Fig.5). 2. Fill the pump with water through the pre-filter until it dips into the suction tube. -
Page 10: Maintenance
START-UP • Open all valves and connect the motor. • Wait a suitable time for tubing auto-priming to take place. 5. MAINTENANCE. • Clean the pre-filter basket regularly in order to avoid drops in pressure. In order to avoid possible basket breakage it is recommended not to knock it during the cleaning process. -
Page 11: Specifications
POSSIBLE BREAKDOWNS, CAUSES AND SOLUTIONS 7. SPECIFICATIONS 7.1. PRODUCT AND ACCESSORY DESCRIPTION. The pump body is built from state of the art thermoplastics. The pumps are of a self- suction type from newMP-025-M to newMP-075-M and are supplied with single-phase motors. - Page 12 8. REGULATION Tests carried out on the New Minipump pump series have been done in accordance with the regulation “EN-ISO-9906:1999 “.
- Page 14 POSITION DESCRIPTION CODE PRE-FILTER COVER HD006000 PRE-FILTER BASKET WITH HANDLE HD016010 PRE-FILTER JOINT COVER HD021000 ALLEN SCREW M6x50 (4 PCS) HD026020 WASHER M6 (8 PCS) HD031005 NUT DIN 934 M6 (4 PCS) HD031050 DRAIN PLUG 1/4” HD036000 DRAIN PLUG O RING Ø13x2,5 HD021100 PUMP BODY HD041025...
- Page 15 POSITION DESCRIPTION CODE GROUND CONN. TOOTHED WASHER M4 MT076000 GROUND CONN. SCREW M4x6 DIN 7985-5,6 MT076005 CABLE CONNECTOR SET 1-PH MT081000 CABLE CONN.FIXING SCREW 1-PH M4x16 MT076010 COMPLETE CONNECTING BOX 1-PH MT088000 CAPACITOR 12 µF MT091000 SPRING WASHER M35 MT096000 MOTOR COVER MT016010 ROD M5x130 (3 PCS)
