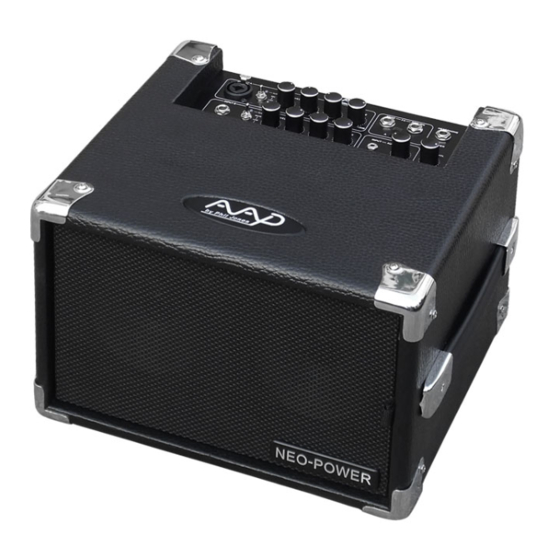

AAD CUBII Owner's Manual

Acoustic guitar amplifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

CUB II
OWNER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for AAD CUBII

Summary of Contents for AAD CUBII

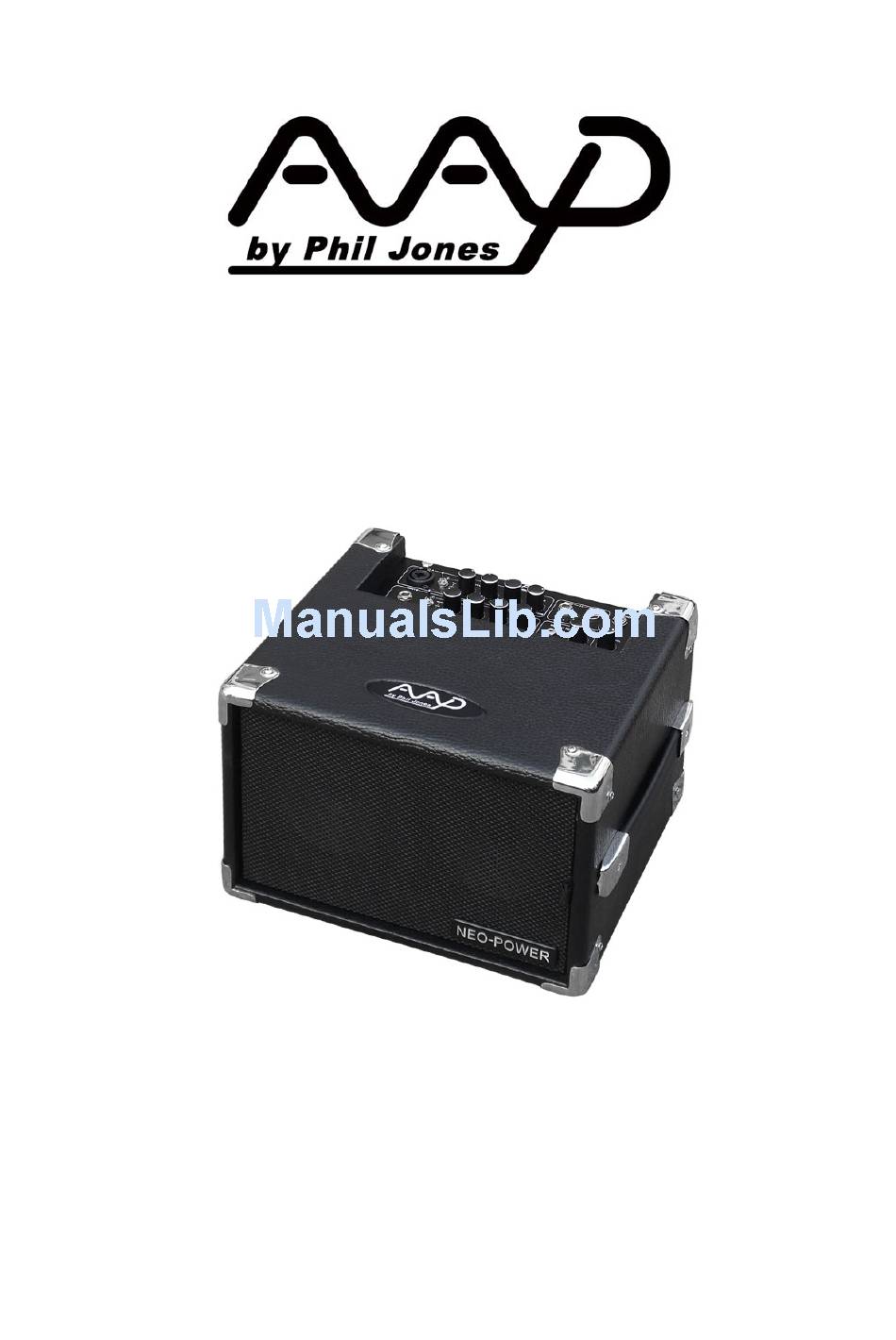

  • Page 1 CUB II OWNER’S MANUAL...

  • Page 2: Table Of Contents

    CONTENTS Read First ------------------------------------------------------------------Page 2 General Overview & Introduction-------------------------------------Page 3 Panel Overview------------------------------------------------------------Page 4 Panel Description---------------------------------------------------------Page 5 Operation & Positioning-----------------------------------------------Page 7 Transporting and storing of the CUBII-----------------------------Page 7 Specifications--------------------------------------------------------------Page 8 Service/Warranty information-----------------------------------------Page 9...

  • Page 3: Read First

    Thank you for purchasing the AAD CUBII Acoustic Guitar Amplifier. A great deal of dedication and passion went into designing and building this no compromise, high performance compact guitar amplifier. It was conceived to be a dedicated amplifier for the “connoisseur” guitarist looking for the most accurate sound reproduction.

  • Page 4: General Overview & Introduction

    OVERVIEW OF THE CUB II The original Cub proved to be a big success but we knew we could make it even better with more features. We made all the controls easily accessible on top. A second input channel was added to handle a microphone or guitar. Both channels have 3-band EQ.

  • Page 5: Panel Overview

    FRONT PANEL OVERVIEW INPUT A SEND RETURN HEADPHONE PUSH INPUT LEVEL BASS TREBLE CLIP HIGH POWER -18dB +18dB -18dB +18dB -18dB +18dB INPUT B INPUT LEVEL BASS TREBLE INPUT LEVEL MASTER VOL CLIP MUTE HIGH -18dB +18dB -18dB +18dB -18dB +18dB BACK PANEL OVERVIEW POWER...

  • Page 6: Front Panel Description

    FRONT PANEL DESCRIPTION 1. INSTRUMENT INPUT JACK CHANNEL A This is a combo socket accepts both standard ¼ inch mono jack and XLR plug. 2. INPUT GAIN SWITCH CHANNEL A High: Higher sensitivity, high impedance input for passive guitar with magnetic pickups Low: Lower sensitivity input setting for guitars/basses with onboard electronics.

  • Page 7: Back Panel Description

    15. INPUT GAIN SWITCH CHANNEL B High: Higher sensitivity, high impedance input. Low: Lower sensitivity input setting for guitars with onboard electronics. Mute: mute the input stage, when switch on, the clip LED will light up with green. 16. INPUT LEVEL SENSITIVITY CHANNEL B 17.

  • Page 8: Operation & Positioning

    This switches the main power on and off in the amplifier. When you turn on the power, it will have about 2 seconds delay to protect the speaker. Do not leave the amplifier plugged into a power source for long periods of time when not in use. 27.

  • Page 9: Specifications

    SPECIFICATIONS Speaker Computer Optimized Infinite Baffle Enclosure Speaker Frequency Response: 80Hz –15KHz Speaker Compliment: 2 x 5inch proprietary NEO-POWER, extended-range drivers Speaker Sensitivity: 95dB/W/M Internal Speaker Impedance: 4 Ohms Dimensions (HxWxD): 8.2x12x11.6inch Weight: 15 Lbs Amplifier 100watt Solid State class AB amplifier with soft clip feature Signal to Noise Ratio Better than 95 dB Impedance...

  • Page 10: Service/Warranty Information

    This warranty covers defect in materials or workmanship that occurs in normal use. Within warranty period AAD will repair or replace the defect unit free of labor and parts charge. It is the buyer’s responsibility to use the unit strictly according to instructions written in this manual and amplifier manual.
