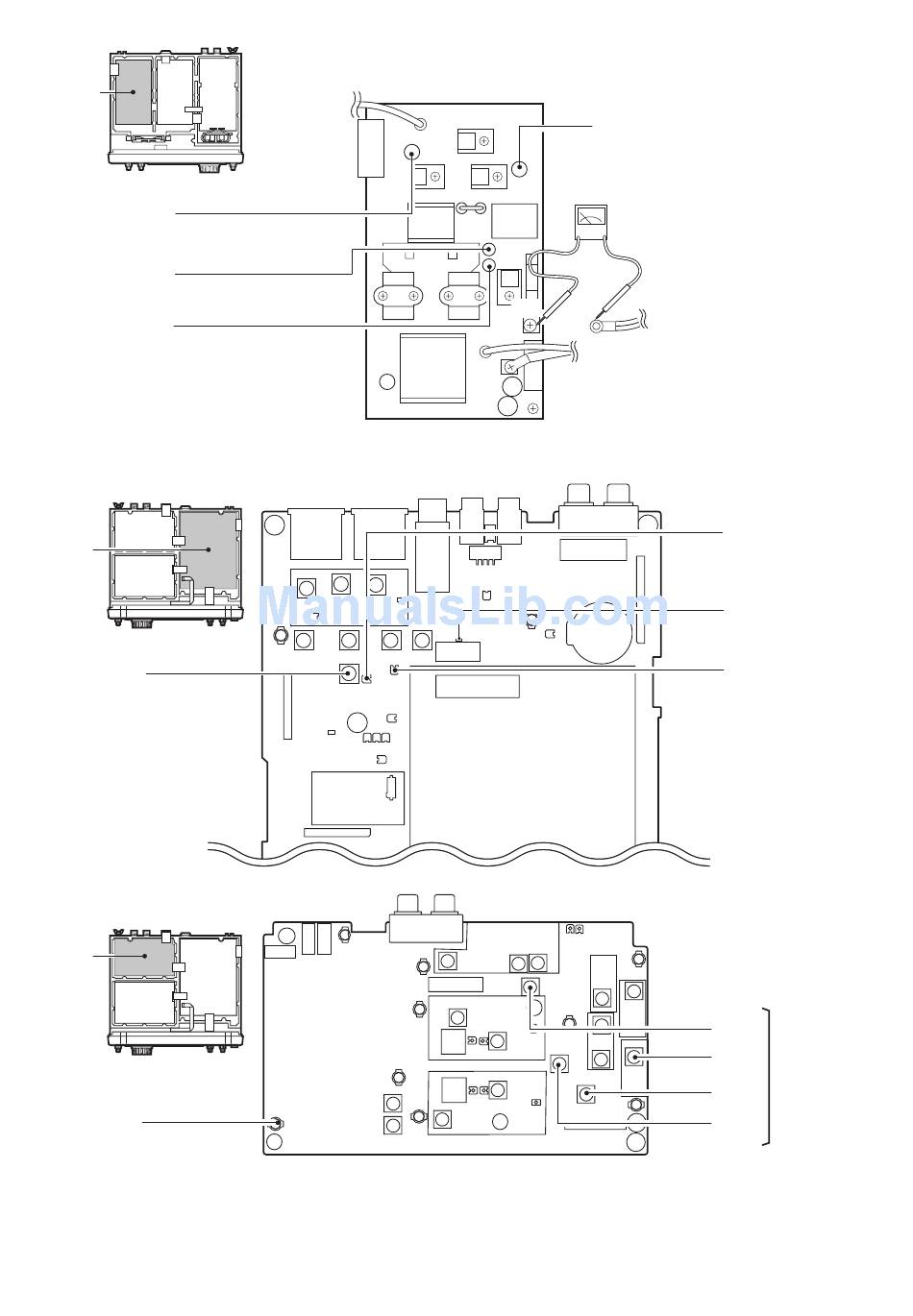

• PA unit
PA unit
Top view of the transceiver
R16
Idling current adjustment point
for drive amplifier
R67
Idling current adjustment point
for final amplifier
R65
Idling current adjustment point
for final amplifier
• MAIN-A unit
MAIN-A
unit
Bottom view of the transceiver
L261
TX peak adjustment
• RF-B unit
RF-B
unit
Bottom view of the transceiver
J201
TX peak check point
R14
Idling current adjustment point
for drive amplifier
Ammeter
−
+
EP4
W16
4 - 5
R263
Transmitter
total gain
adjustment
CP243
TX peak
check point
R247
TX peak
adjustment
L1553
L1801
TX peak
L1702
adjustment
L1701
