TABLE OF CONTENTS
About this guide ................................................... 2
Product overview .................................................. 3
Getting started ..................................................... 8
Batteries ........................................................... 8
AC power adapter ............................................ 8
Change settings ............................................... 9
Remote unit set up ............................................... 9
Clock ................................................................... 10
Alarm ................................................................... 12
Weather forecast ................................................. 13
Temperature ........................................................ 14
Backlight .............................................................. 16
Projector .............................................................. 16
Reset system ...................................................... 18
Safety and care ................................................... 18
Warnings ............................................................. 18
Troubleshooting ................................................... 19
Specifications ...................................................... 21
Additional resources ........................................... 22
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Oregon Scientific FSP-301
Summary of Contents for Oregon Scientific FSP-301
-
Page 1: Table Of Contents
TABLE OF CONTENTS About this guide ... 2 Product overview ... 3 Getting started ... 8 Batteries ... 8 AC power adapter ... 8 Change settings ... 9 Remote unit set up ... 9 Clock ... 10 Alarm ... 12 Weather forecast ... -
Page 2: About This Guide
Congratulations on your selection of the Oregon Scientific Maranello Radio-Controlled Projection Clock with Indoor and Outdoor Temperature (FSP-301). This powerful device bundles time keeping, alarm, projection, indoor and wireless outdoor temperature measurement features. Keep this manual handy as you use your new product. -
Page 3: Product Overview
PRODUCT OVERVIEW TOP VIEW DESCRIPTIONS Snooze / Light ( Channel ( Memory ( Projection lens ( 13, 16) 9, 14) -
Page 4: Lcd Display
LCD DISPLAY DESCRIPTIONS Low Battery icon( Weather Forecast ( RF Reception Signal ( Clock ( Date / Alarm / Alarm Type ( Remote Sensor ( 9, 14) Temperature Trend ( Temperature ( 14) 10-12) -
Page 5: Front View
FRONT VIEW BUTTON DESCRIPTIONS Clock – set time / date or view seconds / day of week ( or activate / deactivate auto-synchronization Alarm – set / activate / deactivate alarm( Projector ( 9, 11) Up / Down – increase / decrease setting 9, 11) -
Page 6: Back View
BACK VIEW DESCRIPTIONS Projector focus knob ( 180˚ rotation (flip image) button ( Image rotation button ( ˚C/ ˚F switch ( Projector switch ( Radio signal format switch ( Reset button ( NOTE compartment not shown. 9, 15) AC power adapter and battery... -
Page 7: Remote Unit
REMOTE UNIT DESCRIPTIONS Temperature ( LED indicator ( Channel number ( ˚C/˚F switch ( 9, 15) Reset button ( Channel switch ( Batteries ( Battery compartment ( 10, 15) 9, 14) 9, 14) -
Page 8: Getting Started
GETTING STARTED BATTERIES Batteries for the remote and main units are supplied with this product. Replace them whenever the low battery signal ( ) displays. The battery door is located on the bottom of the main unit. Use a small Phillips screwdriver to remove the remote unit compartment lid. -
Page 9: Change Settings
CHANGE SETTINGS Press and hold CLOCK or ALARM for 2 seconds to enter setting mode. Then, press to change each setting. Press and hold to enter fast- setting mode. Press CLOCK or ALARM to switch between settings. REMOTE UNIT SET UP Up to 3 remote units can be used with this product to monitor outdoor temperature. -
Page 10: Clock
· Do not place the remote unit more than 20 – 30 meters (60 – 90 feet) from the main (indoor) unit. · Position the unit so that it faces the main (indoor) unit. Minimize obstructions such as doors, walls, and furniture. - Page 11 Strong signal Weak signal For best results, place the unit away from metal NOTE or electrical objects, and near a window with a clear view to the sky. TO DISABLE OR ENABLE AUTO- No signal SYNCHRONIZATION Press DOWN for 2 seconds to disable the auto- synchronization.
-
Page 12: Set Alarm
Press and hold CLOCK for 2 seconds to enter setting mode. Select the 12/24-hour format, hour, minute, year, date/month format, month, date, and display language. Press UP or the setting. Press CLOCK to confirm. The language options are (E) English, (F) NOTE French, (D) German, (I) Italian, and (S) Spanish. -
Page 13: Weather Forecast
Press ALARM to confirm. SNOOZE Press SNOOZE/LIGHT to temporarily disable the alarm for 8 minutes. The alarm icon will blink while Snooze is activated. TO TURN THE ALARM OFF OR ON Press CLOCK, UP or DOWN. To turn the alarm off completely (deactivate it for the next day), press DOWN when the alarm time is displayed. -
Page 14: Temperature
TEMPERATURE With the press of a button, you can check the current indoor or outdoor temperature, trend, and record measurements. Outdoor measurements are collected by the remote unit. VIEW MIN / MAX / CURRENT MEASUREMENTS Press MEMORY. CLEAR MIN / MAX MEASUREMENTS Press and hold MEMORY for 2 seconds until a beep sounds. - Page 15 Searching Strong signal NOTE Signals from household electrical appliances such as doorbells and home security systems can cause temporary reception failures between the indoor and outdoor units. This is normal and does not affect the general performance of the product. Reception will automatically resume once the interference ends.
-
Page 16: Backlight
TRENDS The temperature trend arrow for the last 30 minutes always displays. Trend Temperature + 0.5 ˚C Steady - 0.5 ˚C BACKLIGHT Press SNOOZE/LIGHT to illuminate the backlight for 5 seconds. PROJECTOR This product has a built-in projector for viewing the time. - Page 17 PROJECT THE TIME In a darkened room, press SNOOZE/LIGHT to display the time for 5 seconds. MOVE IMAGE Adjust the projector arm. FLIP IMAGE Press the 180˚ Rotation button while the projector is on. ROTATE IMAGE The ROTATION knob is located on the back of the projector.
-
Page 18: Reset System
RESET SYSTEM The RESET buttons are located on the back of the main unit, and in the battery compartment for the remote unit. Press these buttons with the tip of a blunt object (such as a ball point pen) whenever you change the batteries, or whenever performance is not behaving as expected (e.g., unable to establish radio frequency link with remote unit or automatic... -
Page 19: Troubleshooting
· Do not subject the main unit to extreme force, shock, or fluctuations in temperature or humidity. · Do not tamper with the internal components. · Do not mix new and old batteries or batteries of different types. · Do not use rechargeable batteries with this product. - Page 20 Problem Symptom Cannot auto-synch If it still fails, you may be too far from a signal. Remedy Problem Adjust Remote batteries. unit Press RESET ( 18). Manually activate Temp auto-synch ( 11). Remedy Symptom Cannot locate Check batteries Check location Shows “LLL”...
-
Page 21: Specifications
SPECIFICATIONS Main unit dimensions L x W x H 174 x 103 x 36 mm (6.85 x 4.06 x 1.42 inches) Weight 388 grams (0.86 lbs) (with batteries) Remote unit dimensions L x W x H 92 x 60 x 20 mm (3.6 x 2.4 x 0.8 inches) Weight 100 grams (0.2 lb.) -
Page 22: Additional Resources
Alarm Ferrari Engine or Beep; 2 minute crescendo for Beep Snooze 8 minutes Remote unit RF frequency 433 MHz Range 30 meters (98 feet) with no obstructions Transmission every 40 seconds Channel No. 1, 2, or 3 Unit ˚C or ˚F Power Main unit 3 x UM-3 (AA) 1.5V alkaline... - Page 23 73/23/EC, the EMC Directive 89/336/EC and R&TTE Directive 1999/5/EC (appendix II) and carries the respective CE marking. VS-Villingen / Germany August 2001 Gerhard Preis R&TTE Representative of manufacturer COUNTTRIES RTTE APPROVAL COMPLIED All EC countries, Switzerland © 2003 Oregon Scientific. All rights reserved. and Norway...
- Page 24 Radio-Controlled Projection Clock with Indoor and Outdoor Temperature (Model #: FSP-301 Maranello) User Manual...
Need help?
Do you have a question about the FSP-301 and is the answer not in the manual?
Questions and answers

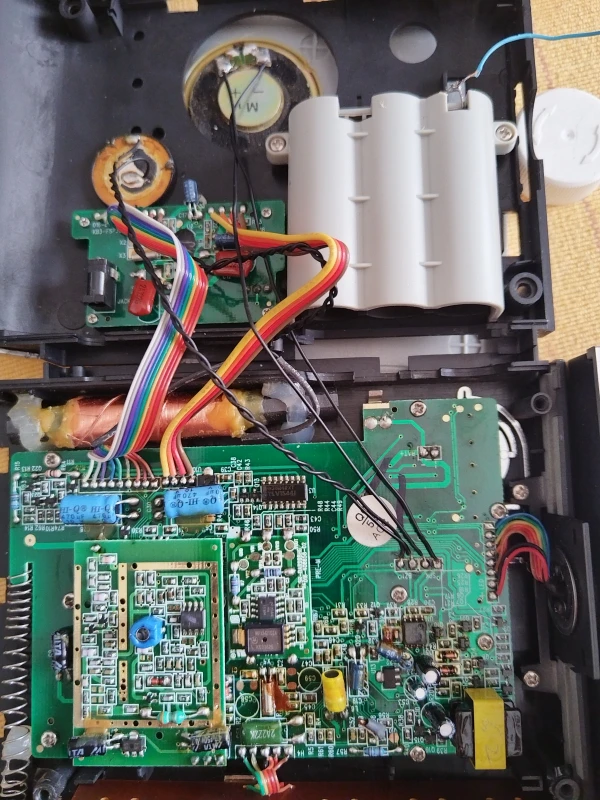

Please I need help on how to connect the battery device on the mother board. Thank you for your assistance
To connect the battery device to the Oregon Scientific FSP-301:
1. Locate the battery compartment on the bottom of the main unit.
2. Use a small Phillips screwdriver to remove the compartment lid.
3. Insert 3 x UM-3 (AA) 1.5V alkaline batteries, matching the correct polarity as shown inside the compartment.
4. After installing the batteries, press the RESET button using a blunt object, such as a ballpoint pen.
No connection to a motherboard is required beyond proper battery installation.
