Dear customer,
Thank you for choosing the Oregon Scientific ATC-2K.
Designed and engineered with extreme precision,
the Oregon Scientific ATC-2K allows you to record cool action movie footage.
We recommend parents help their children with their
Oregon Scientific ATC-2K. This manual is designed using technical
information to allow you to achieve the best results.
Some children may require your guidance setting up,
learning and understanding how to use the different aspects of the ATC-2K.
OREGON SCIENTIFIC and associated trademarks and trade dress are owned by OREGON SCIENTIFIC, Inc.
© 2006 OREGON SCIENTIFIC, Inc. All Rights Reserved.

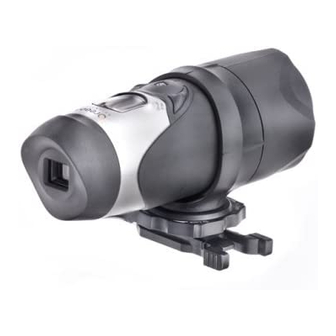

Oregon Scientific ATC-2K
1
2
5
6
7
9
11
11
12
13
14
15
17
19
19
20
22
24
25
26
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Oregon Scientific ATC-2K
Summary of Contents for Oregon Scientific ATC-2K
-
Page 1: Table Of Contents
Some children may require your guidance setting up, learning and understanding how to use the different aspects of the ATC-2K. OREGON SCIENTIFIC and associated trademarks and trade dress are owned by OREGON SCIENTIFIC, Inc. © 2006 OREGON SCIENTIFIC, Inc. All Rights Reserved. -
Page 2: Camera Precautions
Waterproof Feature This ATC-2K camera is waterproof up to 3m. Oregon Scientific will not assume any responsibility for malfunction of the camera caused by water getting inside as a result of misuse by the user. - Page 3 • If the camera gets wet, wipe the water off as soon as possible with a dry cloth. • Other camera accessories are not waterproof. Cold Weather Product Accessories The pouch (not included) would help you use the ATC-2K in cold weather. For information, please visit us at www2.oregonscientic.com Add one extra o-ring...
-
Page 4: Technical Specifications
• Sensor resolution 640x480 VGA CMOS sensor • Built-in memory 32MB • SD memory card drive supports cards of up to 2GB (Not included) • Movie storage: 640 x 480 pixels (30* or 15 frames per second) 320 x 240 pixels (30* or 15 frames per second) 160 x 120 pixels (30* or 15 frames per second) •... -
Page 5: Camera Description
1. Lens 2. Camera grip 3. Screw 4. Nut 5. Handlebar grip 6. Helmet grip 7. O-ring 8. USB cable 9. AV cable 10. Rubberized patch 11. Velcro patch 12. Short Velcro strap 13. Long Velcro strap 14. Silicon rubber head strap 15. -
Page 6: Camera Mounting Description
V) Camera Mounting Description The camera can be mounted in a number of ways using the straps and the Velcro patch provided. Please follow the methods of mounting as suggested below: Fixing the position of the camera a) Turn it anti-clockwise to screw the camera tight to fix it into position. b) Turn it clockwise to unscrew the camera. -
Page 7: Quick Start
VI) Quick Start Battery Installation Be careful!! The edge of the base clip is sharp, when unscrewing the cover, make sure the clip is in the same direction as the lens. Observe the following precautions when unscrewing the cover of the camera: 1. -
Page 8: Inserting/Removing The Sd Card
Inserting/Removing the SD memory Card Make sure the ATC-2K is turned off during the insertion or the removal of the SD card Warning: The card and the data may be damaged if the SD card is inserted or removed while the camera is on. -
Page 9: Menu Settings
VII) Menu Settings 1. Press and hold the Menu button for 2 seconds (one beeping sound) to start selecting options. 2. You can shift through different shooting modes by pressing the Menu button repeatedly. The LCD will display each mode as you press the Menu button. 3. -
Page 10: Resolution
Resolution 640 x 480, 320 x 240, 160 x 120 pixels resolution To change the resolution, press the Menu button until the desired resolution icon is displayed on the LCD. Press the Enter button to confirm your selection. This camera allows you to choose from three video resolutions: 640 x 480, 320 x 240 and 160 x 120 pixels. -
Page 11: Sound Recording
Sound Recording When the sound icon is flashing, “ON” will be shown on screen. “ON” means recording sound during filming. Press the 'Movie shutter button' (one beeping sound) to switch to “OFF”, which means no recording sound. After “OFF”, it will loop back to “ON”... -
Page 12: Sd Memory Card
On this unit, you can use SD Memory Cards of the following capacity: 8MB to 2 GB. To use an SD memory card, turn off the ATC-2K and insert the SD memory card. When the camera is turned on again the SD card icon will be displayed on the LCD. -
Page 13: Connecting To Pc
*If you are connecting the camera to a PC for the first time, the required driver is installed automatically so that the camera can be recognized by 7 min 11 min 25 min Windows Plug and Play. The ATC-2K drive then appears on the [My Computer] folder. 14 min 23 min 50 min 5. -
Page 14: Playing Back Video Footage On A Tv
Note: 1. Videos will be saved in AVI format. 2. When the ATC-2K is connected to the PC with an SD card inserted in the camera, the '100COACH' folder will show the files on the SD card. IX) Playing back video footage on a TV 1. -
Page 15: Further Help
Troubleshooting (continued) I can't capture the video footage -Make sure there is enough space on the internal memory of ATC-2K or the SD card; the display will tell you how much time there is left for video recording. -Make sure the SD card is not locked if you have inserted the SD card. The letters “Err”... - Page 16 Notes...
- Page 17 Oregon Scientific, Inc. 19861 SW 95th Avenue Tualatin, OR 97062, USA Hotline: 1-800-853-8883 Website: www.oregonscientific.com This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
